Sansui B 2301 B 2201 Owners Manual

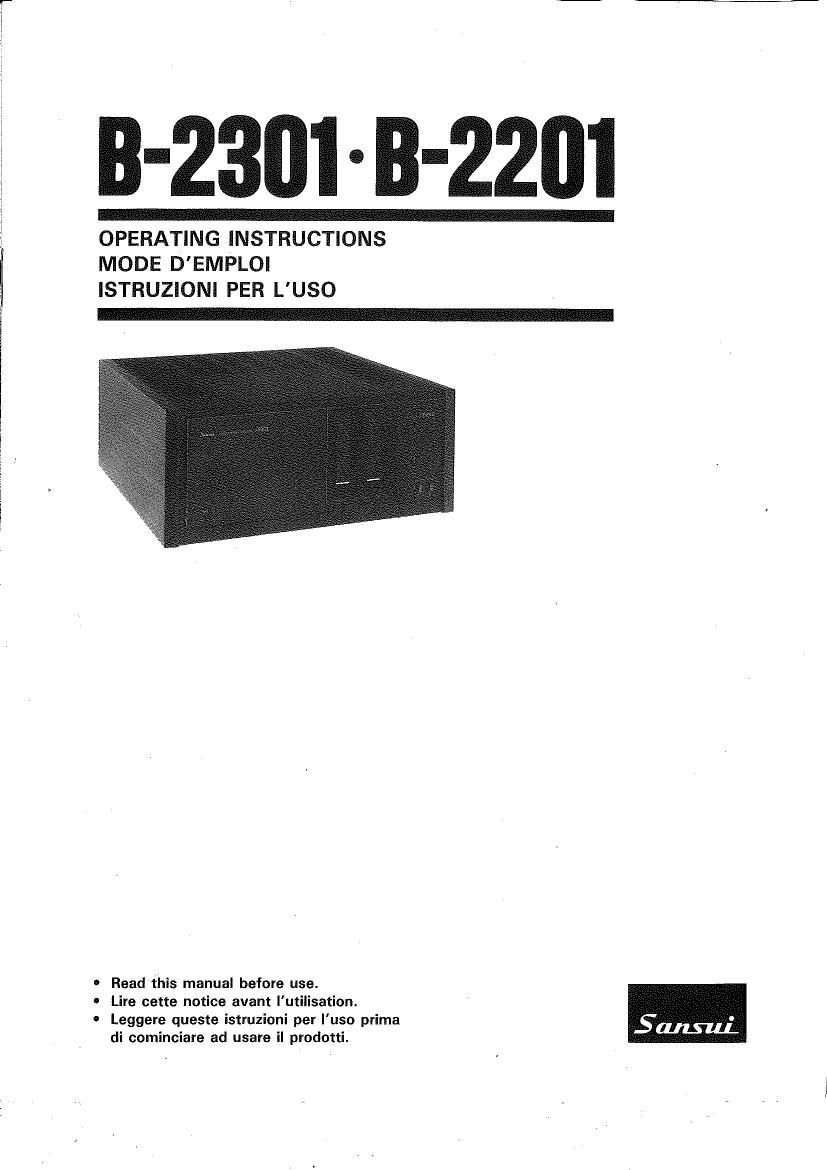

Page 1

B-2301-B-2201

OPERATING INSTRUCTIONS
MODE D'EMPLOI
ISTRUZIONI PER L'USO

0 Read this manual before use.

0 Lire cette notice avant lutilisation.

- Leggere queste istruzioni per l'uso prima
di cominciare ad usare il prodotti.

Page 2

We are grateful for your choice of this SANSUI high fideli-
ty product. Before you operate it, we suggest that you
read this booklet once through carefully, familiarizing your-
self with the important precautions, operational proce-
dures and every one of the products many features. It
will help to ensure that you will avoid possible damage
and that the products superb performance will be yours
to enjoy for many years to come.

* In order to simplify the explanation illustrations may sometimes differ
from the originals.

Caution: This equipment is fixed to a single voltage
only. Please confirm voltage for your power supply
and this equipment before using.

Nous sommes reconnaissants pour votre choix de (:9 pro-
duit SANSUI d'une haute fidélité remarquable. Avant de
commencer a vous en servir, nous vous recommandons
de lire cette notice completement et soigneusement, vous
familiarisant ainsi avec les precautions importantes, les
manoeuvres de fonctionnement et chacune des nombreu-
ses caractéristiques de lappareil. Cela vous aidera a ne
pas provoquer déventuels dommages et vous permettra
de profiter pendant de longues années des superbes per-
formances de votre appareil.

4 Pour simplifier les explications, les illustrations peuvent quelquefois
étre différentes des originaux.

Attention: Cet appareil est préréglé pour fonctionner
sur une seule tension secteur. Avant sa mise en ser-
vice, priere de vérifier la compatibilité entre la tension
de lalimentation secteur et celle de lappareil.

Ci complimentiamo con voi per aver scelto SANSUI: un
raffinato prodotto Hi Fi. Prima di usare l'apparecchio vi
consigliamo di leggere attentamente questo libretto di
istruzioni affinché vi possiate famigliarizzare con ciascu-
na delle sue innumerevoli caratteristiche. Cio vi permet-
teré anche di non causare danni all'apparecchio e vi
consentiré di apprezzare a pieno le sue superbe pres-
tazioni.

* Per semplificare la spiegazione Ie illustrazioni potrebbero a value dit-
ferire dagli originali.

Attenzione: Questo apparecchio funziona soltanto ad
una tensione. Prima di usarlo controllare Che possa
essere usato con la tensione locale.

Contents

Precautions.
Connections. .
Panel information
Operating procedures
Specifications

oooououo'i

umnm:«mm»mm. nmwmmwmwwwmmm

WARNING: To prevent fire or shock hazard, do not
expose this appliance to rain or moisture.

0 The Model No. and Serial No. of your unit are shown on its back panel.

xw-Mimv«mw«ml>mm~mm1mu max-mum

Table des matieres

Precautions.
Connexions . ..
indications sur le panneau
Procédés de réglage
Specifications ........

WMMWM-MWv-wwwvmmmwm mum-w

ATTENTION: Pour éviter les dangers d'électrocution

ou d'incendie, ne pas exposer cet appareil a la pluie

ou é lhumidité.

0 Le numéro du models et le numéro de série de l'appareil som ins-
crits sur son panneau arriere.

L'-mm~MM«MWMIAW.m-\wm~.flpwm~wmNIH-mm

Indice

Precauzioni ........
Collegamenti
Dispositivi del pannello
Funzionamento .............
Dati tecnici ........... ..................... .. 16

Kr.»er-w-Vimi-vmewDNA-vai-Wwmmwwm~lmmdmammim

ATTENZIONE: Per evitare pericoli d'incendio e

scosse non esporre lapparecchio alla pioggia e

all'umidita.

- II numero del modello e quello di serie dell'apparecchio si trovano sul
pannello posteriore.

mme-«lmmm mrmwxmmmwmmmm~mm~uflm~my

Page 8

Operating procedures

Precautions for operation

This unit is fitted with a muting circuit to eliminate click noise at the
time 01 initial power input. If you are using a preamplifier that Is
not fitted with a muting circuit, always switch ON the pro-amplifier
beIore switching ON the unit. Failure to switch the pre-amplifier 0N
first may result in click noise which could damage the speakers. Simi-
larIy, some pre-amplifiers give 0 noise when they are siwtched OFF.
Always switch the power to the unit OFF first, and then switch OFF
the pre-amplifier.

Set the knobs at the back of the unit before turning the power

0N.

Set the INPUT SELECTOR switch to "NORMAL" or BALANCED"
to correspond to the terminals connected to your pro-amplifier.
(84301)

4 Set the INPUT LEVEL control to 0" (maximum setting) for both
speakers.

Specifications

Operation

1. Set the volume control on the preamplifier connected to the unit to
mInImum.

2. Switch the power to the pre amplifier and other components ON

3. Turn the POWER switch on the unit to the ON. When the PROTECe
TOR and DC LEAK indicators go out, the unit is ready for operation.

4. Switch the preamplifier and other components to your desired pro-
gram source.

5. Gently turn the volume control on the ore-amplifier and increase the
volume.

Protection circuit

This unit is fitted with a protection circuit to prevent damage to the speak~

ers and transistor in the event of any malfunction.

When the protection circuit comes into operation. the signal circuit to

the SPEAKER terminals is broken, and no sound will come from the speak-

ers. In this case, disconnect the unit and investigate the cause of the
trouble.

In the event that there is a short between speakers or an overload
(less than 4 ohms), the protection circuit will come into operation
and the PROTECTOR indicator will light up. In this event, discone
heat the unit and investigate the cause of the trouble.

In the event of a DC leak, the protection circuit will come into opera-
tion and the DC LEAK indicator will light up. The protection circuit
is an automatic reversion type and will resume normal operation au-
tomaticallv as soon as the leak has been corrected.

32301
Power output
Min. HMS, both channels driven, from 20 to 20,000 Hz, with no more
than 0.003% total harmonic distortion.
300 watts per channel into 8 ohms
Load impedance .............................. 8 ohms
Total harmonic distortion ................. less than 0.003% at or below
rated min. RMS power output
distortion (60 Hz: 7 kH2=4:1, SMPTE method)
........ less than 0.003% at rated
power output

Frequency response (at 1 watt)
NORMAL INPUT ......................... DC to 300,000 Hz,
+0 dB, -2.0 dB
Input sensitivity and Impedance (at 1 kHz)
NORMAL INPUT.... .. 1 V115 kohms
BALANCED iNFUT. .. 2 WI kohms
Channel separation (1 kHz. at rated power output)
90 dB
Signal to none ratio (short-Circuit, A-networkl
............................................. 120 dB
Power requirements
Power voltage.

.............. 120V or 220V or 240V
(50/60 HZ)
.. 1,200 watts
.. 474 mm (18*11/16') W
215 mm (8-1/2") H
500 mm (19-11/16") D
Weight ........................................... 37.0 kg (81.6 lbs.) net
400 kg (88.2 lbs) packed

Power consumption
Dimensions ............

3-2201
Power output
Min. RMS, both channels driven, from 20 to 20,000 Hz, with no more
than 0.003% total harmonic distortion.
200 watts per channel into 8 ohms
Load impedance.. . 8 ohms
Total harmonic dis 0 Ion . less than 0.003% at or below
rated min. RMS power output
kHz=4:1, SMPTE method)
, less than 0.003% at rated
power output

Intermodulation distortion (60 H

Frequency response (at 1 watt)
NORMAL INPUT ......................... DC to 300,000 Hz,
+0 dB, -2.0 dB
Input sensitivity and Impedance (at 1 kHz)

NORMAL INPUT ......................... 1 VII 5 kohrns
Channel separation (1 kHz, at rated power output)
90 dB

network)

Signal to noise ratio (short-c r

................................................ 1 20 dB
Power requirements
Power voltage ............................ 120V or 220V or 240V
(50/60 Hz)
Power consumption . 860 watts

474 mm (18-11/16) W
215 mm (8-1/2) H

500 mm (19*)1/16) D
Weight ........................................... 35.0 kg (77.2 lbs.) net
380 kg (83.8 lbs) packed

Dimensions ..............

* Design and specifications subject to change without notice for improvements.
