Sansui B 1000 Service Manual

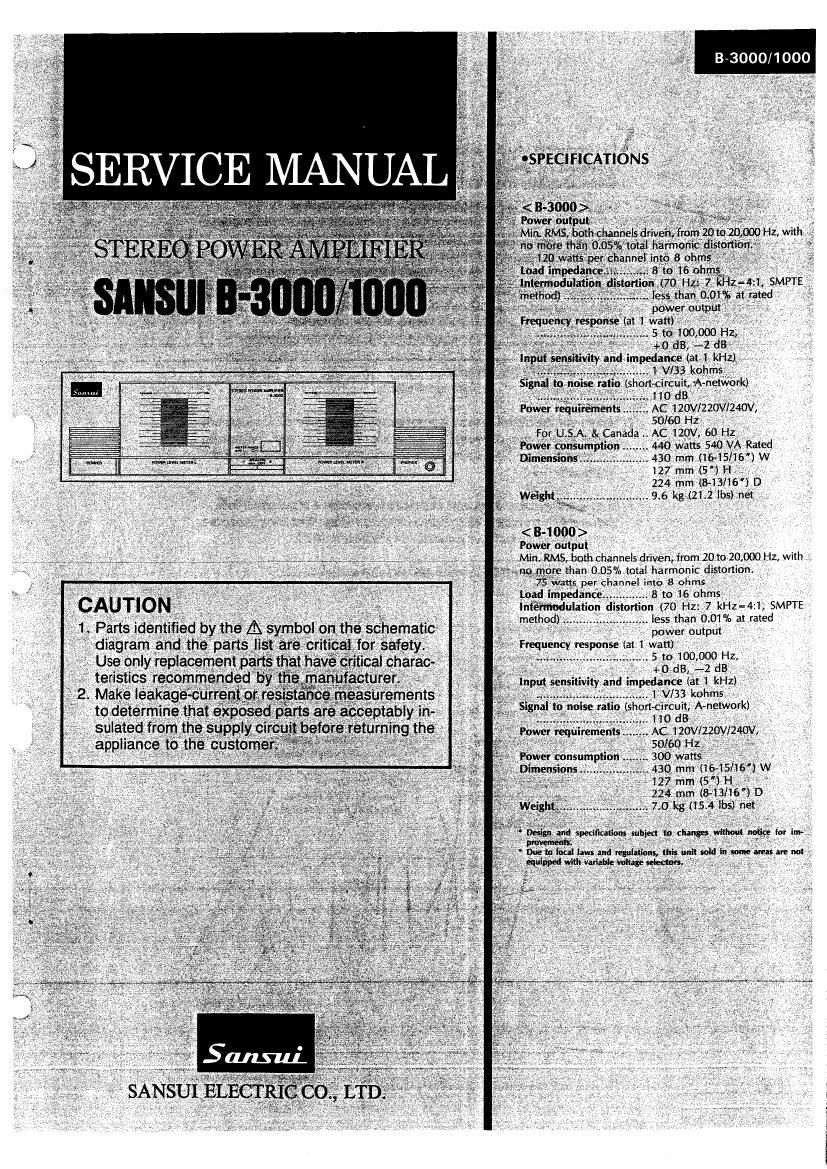

Page 1

8-3000/1000

I
s
!

Page 2

B»3000/1 000

NOTE

1.The symbols, UL, CSA, SA, BS, UK, EU, AS, SEV, SS, XX
and XX-V on the parts list and the
schematic diagram mean followings respectively.

UL ........................... Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)
CSA ........................ Manufactured for Canadian market.
SA ........................... Manufactured for South African market. _
BS, UK . Manufactured for United Kingdom market.
EU Manufactured for European market.
AS .. Manufactured for Australian market. _

............ Manufactured for Swiss market.

SS ........................... Manufactured for Saudi Arabian market.

XX < EXPORT> ..... Standard Version with inner Voltage Selector.
XX-V ., Standard Version with Outer Voltage Selector
NON MARK ............ Common Parts.

2. Some printed circuit boards are not supplied assembled. To separate
these in this service manual, the stock numbers are not indicated
for these boards. However, stock numbers for individual parts are
indicated.

3. Since some capacitors and resistors are omitted from parts lists in
this service manual, refer to the Common Parts List for capacitors
and resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

cAbbreviations List
CR. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Fiim Capacitor
FR : Fusing Resistor MP. : Metalized Paper Capacitor
N.I.R. : Non-inflammable Resistor F.C. : Polystyrene Capacitor
A.R. : Array Resistor G.C. : Gimmic Capacitor
C.C. : Ceramic Capacitor AC. : Array Capacitor
QT. : Ceramic Capacitor, V.R. : Variable Resistor
Temperature Compensation S,V.R. : Semi Variable Resistor
E.C. : Electrolytic Capacitor SW. : Switch
E.L. : Low Leak Electrolytic Chip R, : Chip Resistor
Capacitor Chip C. : Chip Capacitor
EB. : Bi-Polar Electrolytic
Capacitor
