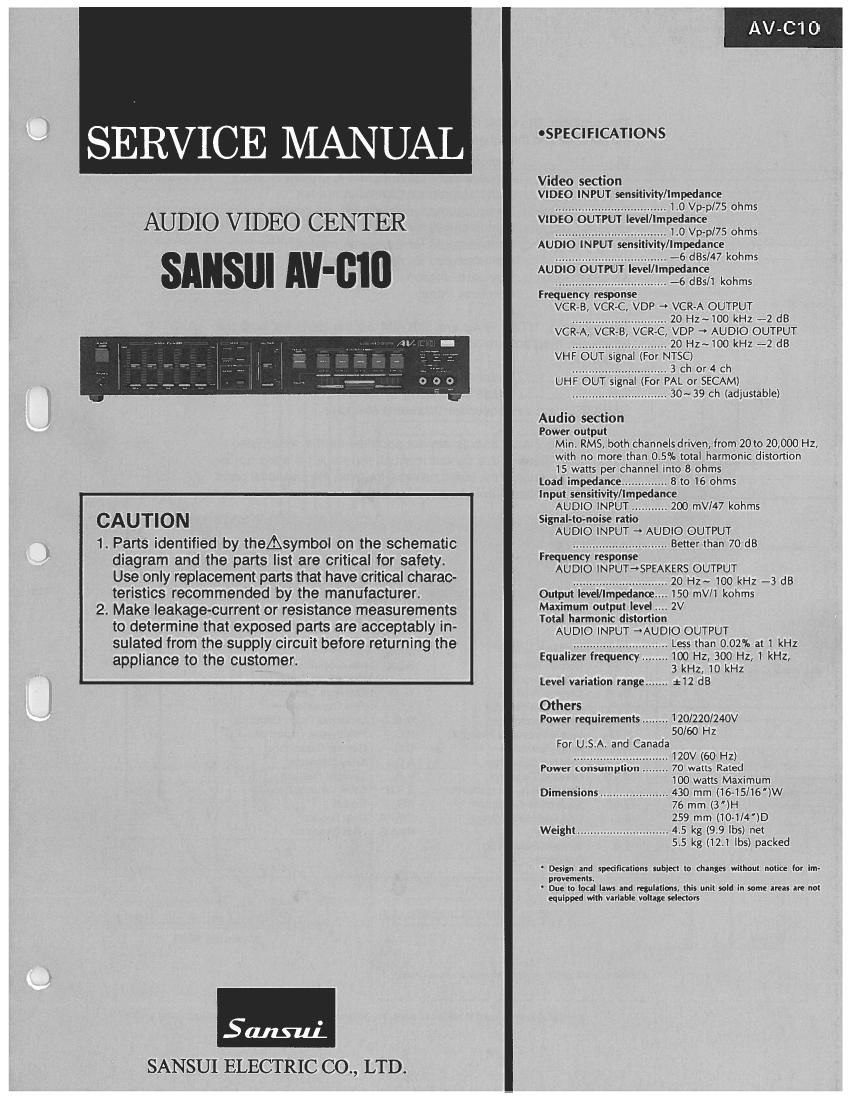

SERVICE MANUAL

AUDIO VIDEO CENTER

SAIISIII AV-BIII

CAUTION

1. Parts identified by theAsymbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the

appliance to the customer.

Sansul'.
SANSUI ELECTRIC CO., LTD.

AV

SPECIFICATIONS

Video section

VIDEO INPUT sensitivity/Impedance
.................................. 1t0 Vp-p/7S ohms

VIDEO OUTPUT level/Impedance
.................................. 1.0 Vp»pl75 ohms

AUDIO INPUT sensitivity/Impedance
................................. -6 ($85147 kohms

AUDIO OUTPUT level/Impedance
.................................. -6 st/l kohms

Frequency response
VCR-B, VCRvC VDP -> VCRaA OUTPUT

......... 20 HZ~100 kHz r2 dB

VCRIC, VDP -' AUDIO OUTPUT

............ 20 Hz~100 kHz ~2 dB

VHF OUT signal (For NTSC)
............................. 3 ch or 4 ch

UHF OUT signal (For PAL or SECAMI

..... 30 ~ 39 ch ladjustable)

Audio section
Power output
Mint RMS, both channelsdriven, from 20 to 20,000 Hz,
with no more than 0.5% total harmonic distortion
15 watts per channel into 8 ohms
Load impedance. .. 8 to 16 ohms
Input sensitivity/I p nce
AUDIO INPUT ........... 200 mV/47 kohms
Signal-to-noise ratio
AUDIO INPUT 4 AUDIO OUTPUT
............................. Better than 70 dB
Frequency response
AUDIO INPUT->SPEAKERS OUTPUT
............................. 20 Hz~100 kHz -3 dB
Output level/Impedance 150 mV/I kohms
Maximum output level 2V
Total harmonic distortion
AUDIO INPUT AUDIO OUTPUT
Less than 0.02% at 1 kHz
.. 100 Hz, 300 Hz, 1 kHz,

Equalizer frequency

3 kHZ/ 10 kHz
Level variation range ....... :12 dB
Others
Power requirements ........ 120/220/240V
50/60 Hz

For U.S.A. and Canada
120V (60 H2)

Power consumption ........ 70 watts Rated

100 watts Maximum
Dimensions ........... . ......... 430 mm (16-15/16')W

76 mm (3 )H

259 mm (lO-I/4'ID
Weight ............................ 4.5 kg (9.9 lbs) net

55 kg (12.1 lbs) packed

Design and spedficatinns subiecl to changes without notice for im-
provements.

Due to Ian! laws and regulations, this unit sold in some areas are not
equipped with variable voltage «Imam

Page 2

1.

9

CAUTION

The symbols, UL, CSA, SA, 88, UK. EU, AS and XX (EXPORT) on
the parts list and the schematic diagram mean followings respectively.

.. Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)
.. Manufactured for Canadian market.

.. Manufactured for South African market.

.. Manufactured for United Kingdom market.

.. Manufactured for European market.
Manufactured for Australian market.
Standard Version.

NON MARK ........ Common Parts.

.The symbols, NTSC, PAL and SECAM on the parts list and the

schematic diagram are abbreviations of color TV format following
respectively.

NTSC
PAL...
SECAM

.. National Television Standards Committee.
Phase Alternating by Line.
Sequential Couleur a Memoire.

. Some printed circuit boards are not supplied as the assembled.

To separate these in this service manual. the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

. Since some of capacitors and resistors are omitted from parts lists

in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

Abbreviations in this service manual are as follows.

~Abbreviations List

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
SR. : Solid Resistor Electrolytic Capacitor
CeR. : Cement Resistor Ta.C. : Tantalum Capacitor 1
MR. : Metal Film Resistor F.C. : Film Capacitor l
F.R. : Fusing Resistor MP. : Metelized Paper Capacitor l
N.|.R. : Non»lntlammable Resistor P.C. : Polystyrene Capacitor
A.R. : Array Resistor G.C. : Gimmic Capacitor
C.C. : Ceramic Capacitor AC. : Array Capacitor
C.T. : Ceramic Capacitor, V.R. : Variable Resistor ,
Temperature Compensation S.V.R. : Semi Variable Resistor
E.C. : Electrolytic Capacitor SW. : Switch
E.L. : Lcw Leak Electrolytic Chip R. : Chip Resistor 1
Capacitor Chip c. : Chip Capacitor I
[2.3. : Bi-Polar Electrolytic
Capacitor
