Sansui AUX 501 Owners Manual

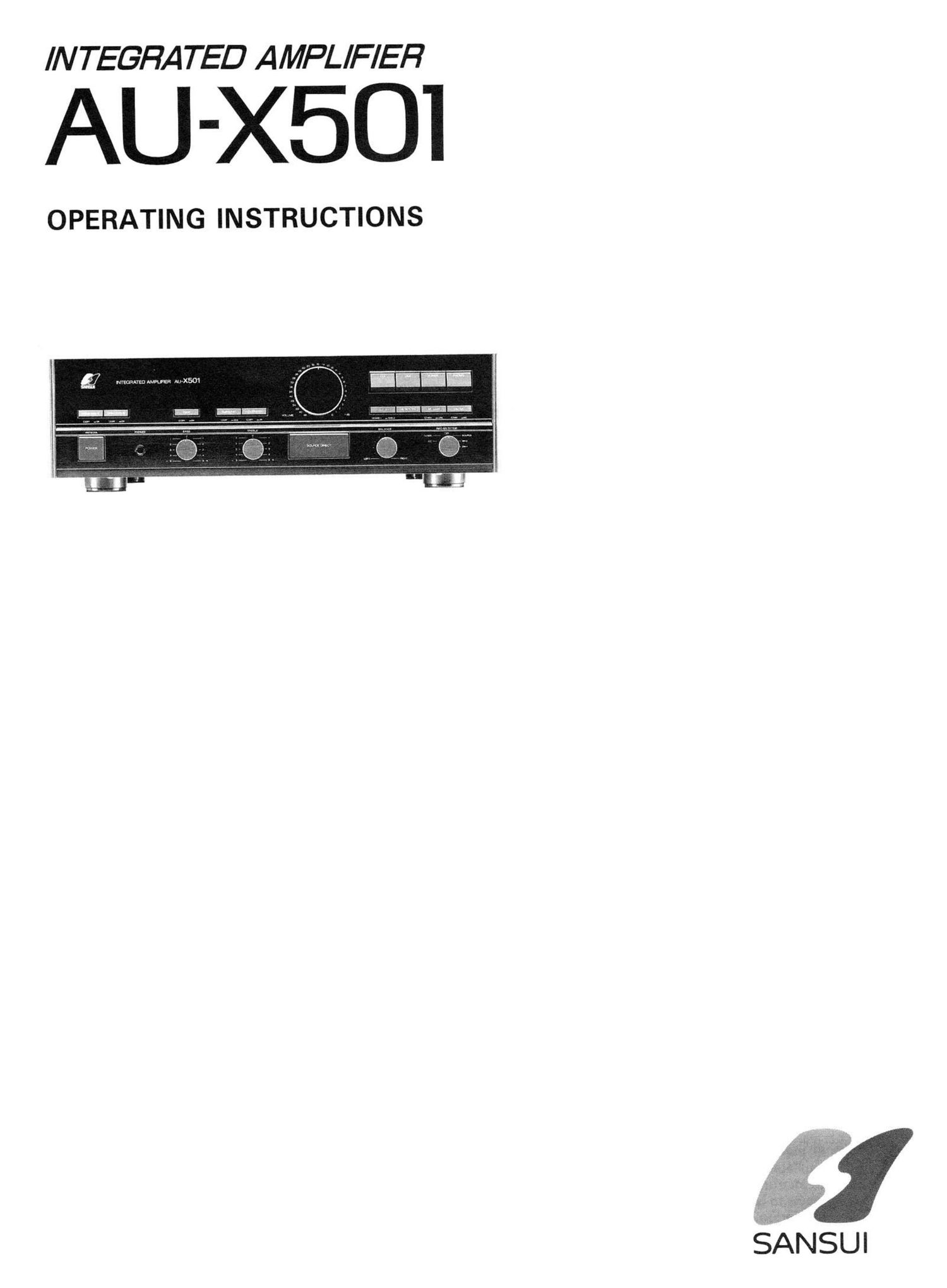

Page 1

INTEGRATED AMPL /F/EH

AU -X5OI

OPERATING INSTRUCTIONS

NTEGRATED AWE ~J-X501

SANSUI

Page 2

Thank you for purchasing this fine SANSUI product.
Taking the time to read these operating instructions
carefully before use will acquaint you fully with all its
features and help ensure optimum performance.

Precautions

[E E3

[ .l l ..l [:3
CD 5.3" C:
L '3 C i m

U
l]
U

i
l
[P'TTT-N
. 5.. _ji-
i ...... .
i ,l

* In order to simplify the explanation illustrations may sometimes
differ from the originals.

Power plug

When disconnecting the power cord from the power out-

let, always take hold of the plug, and not the wire, and

pull free. Never connect or disconnect the power plug

with wet hands since you may receive an electric shock.

* Remember to disconnect the power plug from the
power outlet when you do not intend to use the unit
for a prolonged period of time.

Do not remove the case and bottom panel
Any inspections or adjustments inside the unit may lead
to malfunctions and electric shocks. Do not touch any
of the inside parts. .

SANSUI's warranty is not effective if a deterioration in
the unit's performance results from remodeling inside.

Do not block the ventilation holes

Do not block the ventilation holes on the top of the unit
by placing records or other objects over them.

This will increase the inside temperature and may lead
to a failure or malfunction.

Installation precautions

Do not install the unit in any of the following locations

since this may result in a deterioration in performance

or malfunction:

* Locations exposed to direct sunlight or near objects
radiating heat such as heating appliances.

* Locations exposed to moisture or humidity.

* Locations with poor ventilation exposed to dust and
dirt.

* Locations which are unstable and not perfectly flat
or which are susceptible to vibration.

Do not wipe with thinners

Wipe the panels and case from time to time with a soft
cloth. Using any kind of thinner, alcohol or volatile li-
quid will mar the surface, cause blotching on the exterior
and erase the markings and should therefore be avoided.
Do not use insecticide sprays in the vicinity.

This unit dissipates the heat most effectively when installed on
a flat surface. Do not stand it up or install it at an angle.

Before connecting the power plug
Before connecting the power plug to an electrical outlet, check to be
sure that the unit is set to the proper voltage for your area. If the
voltage of the unit is improperly set, fire hazard or damage to the unit
may result. If you find that the unit is not set to the proper voltage
for your area, follow the instructions listed below:

0 Units with 120V/220V/240V VOLTAGE SELECTOR at rear
panel
These units are set at either 120V, 220V or 240V with the VOL-
TAGE SELECTOR. To change the voltage use a minus screwdriver
to remove the plug, and reinsert it so that the mark ( V l matches
the desired voltage.

VOLTAGE SELECTOR VOLTAGE SELECTOR
V

--
.-

' Units with 220V/240V VOLTAGE SELECTOR switch at

rear panel

These units are set at either 220V or 240V with the VOLTAGE
SELECTOR switch. To change the voltage, use a minus screw-
driver or similar device to slide the switch.

VOLTAGE SELECTOR VOLTAGE SELECTOR
220V-024OV 220V0-0240V
~ 50/60 Hz ~ 50/60 Hz
At 220V At 240V

0 Units without voltage selector switch

Units destined for some areas are not fitted with a voltage selec-
tor switch due to laws and regulations existing in those areas.
In such a case, the power supply voltage is set to the voltage used
in the area where the unit is purchased.

If the unit is to be used in an area where the power requirements
are different, make sure you consult your nearest authorized
SANSUI Service Station.
