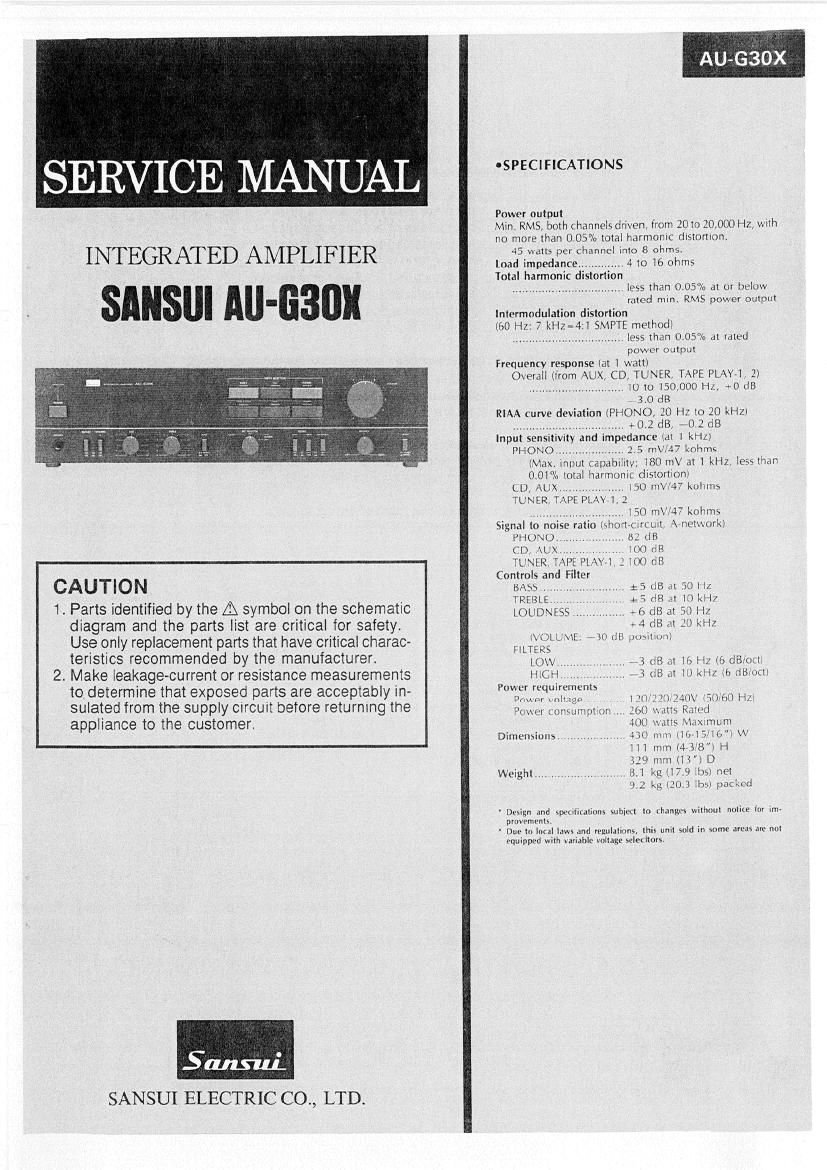

Sansui AU G30X Service Manual

Page 2

AU-G30X

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX (EXPORT) on
the parts list and the schematic diagram mean followings respectively.

UL ....................... Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA .................... Manufactured for Canadian market.

SA ........... . Manufactured for South African market.

BS, UK . Manufactured for United Kingdom market.
EU .. Manufactured for European market.

AS... Manufactured for Australian market.

XX (EXPORT) ..... Standard Version.

NON MARK ........ Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However. the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

oAbbreviations List

C.R, : Carbon Resistor E.B,L. : Low Leak Bi-Poiar
SR. : Solid Resistor Electrolytic CapaCitor
Ce.R. : Cement Resistor Ta.C, : Tantalum Capacttor
MR : Metal Film Resistor P.C. : Film Capacitor
F.R. : Fusing Reststor MP : Metalized Paper CapaCitor
N.|.R. ' Non-lnflammable Resistor P.C. . Polystyrene Capacitor
A.R, 1 Array Resistor GC. :Gimmic Capacitor
C.C. : Ceramic CapaCitor A.C, : Array Capacitor
C.T. : Ceramic Capacttor. V.R. : Variable Resistor
Temoerature Compensation S.V,R. : Semi Variable Resistor
E.C. : Electrolytic Capacitor SW. SWItch
E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip 0. : Chip Capacitor
EB. : Bi-Polar Electrolytic
Capacitor
