Sansui AU 505 Service Manual

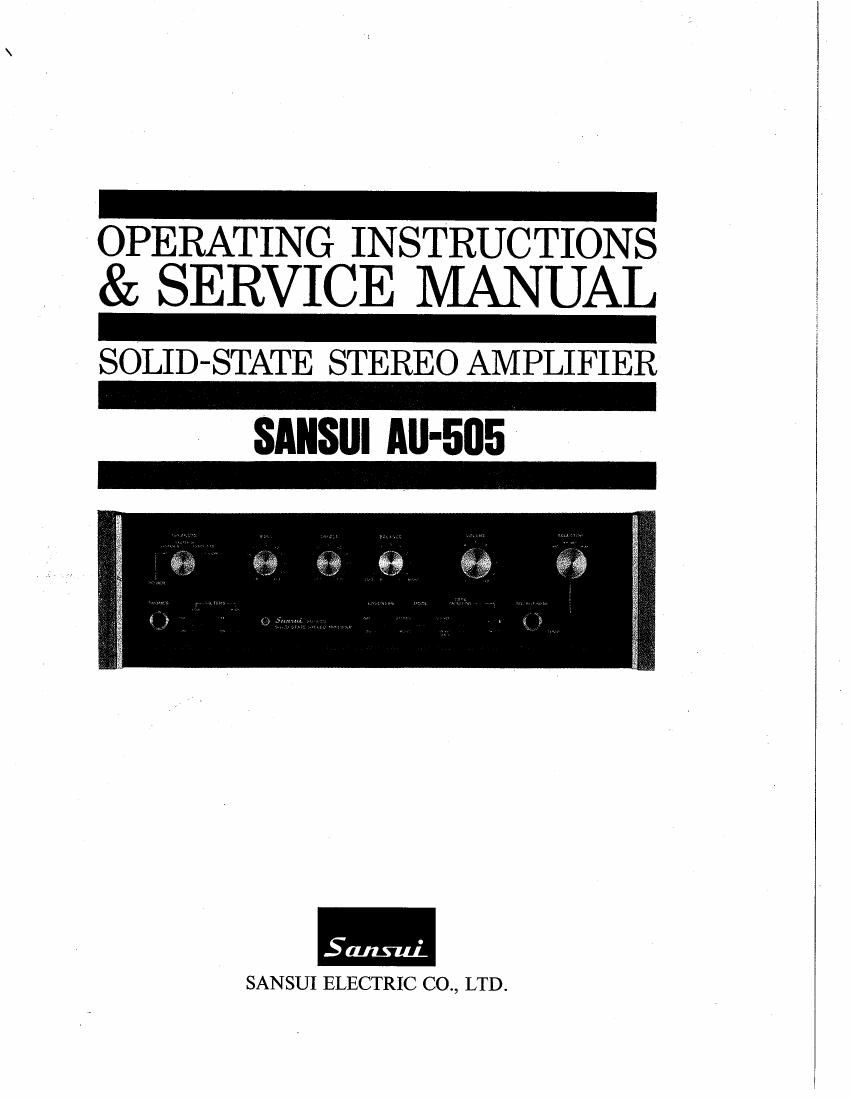

Page 1

-
OPERATING INSTRUCTIONS

& SERVICE MANUAL

SOLID-STATE STEREO AMPLIFIER

. w ' 1
ax;
,
fl: ,
a a: m a as? a r . § In

SANSUI ELECTRIC CO., LTD.

Page 2

OPERATIONS

Congratulations on joining the thousands of proud, satisfied owners of
quality stereo components from Sansui, the audio specialist.

The AU-505 is a 90-watt integrated amplifier loaded with many state
of-the-art features and distinctively styled with its sophisticated satin-
black front panel, walnut~finished side panels and rational layout of
controls and switches. Among which are such convenience features
as a Tuner Selector to let you instantly switch to radio reception, a
Mode Switch to select between stereo and mono playback, high and
low filters, and provisions for connecting and selecting two pairs of
speaker systems.

Beyond and above these features, the AU-505s tonal quality, like that
of all other Sansui AU series amplifiers, has been perfected and proven
not only by precision electronic measuring instruments, but through
repeated listening tests in a wide variety of acoustic environments.
This manual and the enclosed reference sheet have been prepared to
guide you in operating and caring for your AU-505 correctly. Please

read them once carefully, and retain for future reference.

TO PLAY RECORDS

1. Set the Selector Control to PHONO.

2. Start the turntable, and adjust it fOr the right
speed.

3. Start playing the record.

4. Adjust the amplifier for optimum sound volume
and channel balance.

5. Use the tone controls and other switches and
controls according to your personal preference and
room acoustics.

TO RECEIVE BROADCASTS

1. Set the Tuner Selector to TUNER.

2. Adjust controls on the tuner to suit your needs.
3. Use the amplifiers other controls and switches
according to your personal preference and room
acoustics.

TO USE A MICROPHONE

Use a high-impedance dynamic microphone for
best results.

1. Set the Selector Control to MIC.

2. Use other controls and switches according to
your personal preference and room acoustics.

Note: When using a microphone, same sound will
be delivered by both left and right speaker systems
Whether the Mode Switch is set to STEREO or
MONO.

RECORDING AND PLAYBACK
ON A TAPE DECK
To Record into a Tape Deck

1. Use the Selector Control or Tuner Selector to
select the program source you want to record.

2. Start the tape deck in the recording mode.

3. To monitor the sound being recorded, set the
Tape Monitor Switch to PLAYBACK.

Note: Monitoring is possible only if the tape deck
is equipped with separate heads for recording and
playback.

To Reproduce Recorded Tape

1. Set the Tape Monitor Switch to PLAYBACK.
2. Start the tape deck in the playback mode.

3. Use the amplifiers other controls and switches
according to your personal preference and room
acoustics. '
