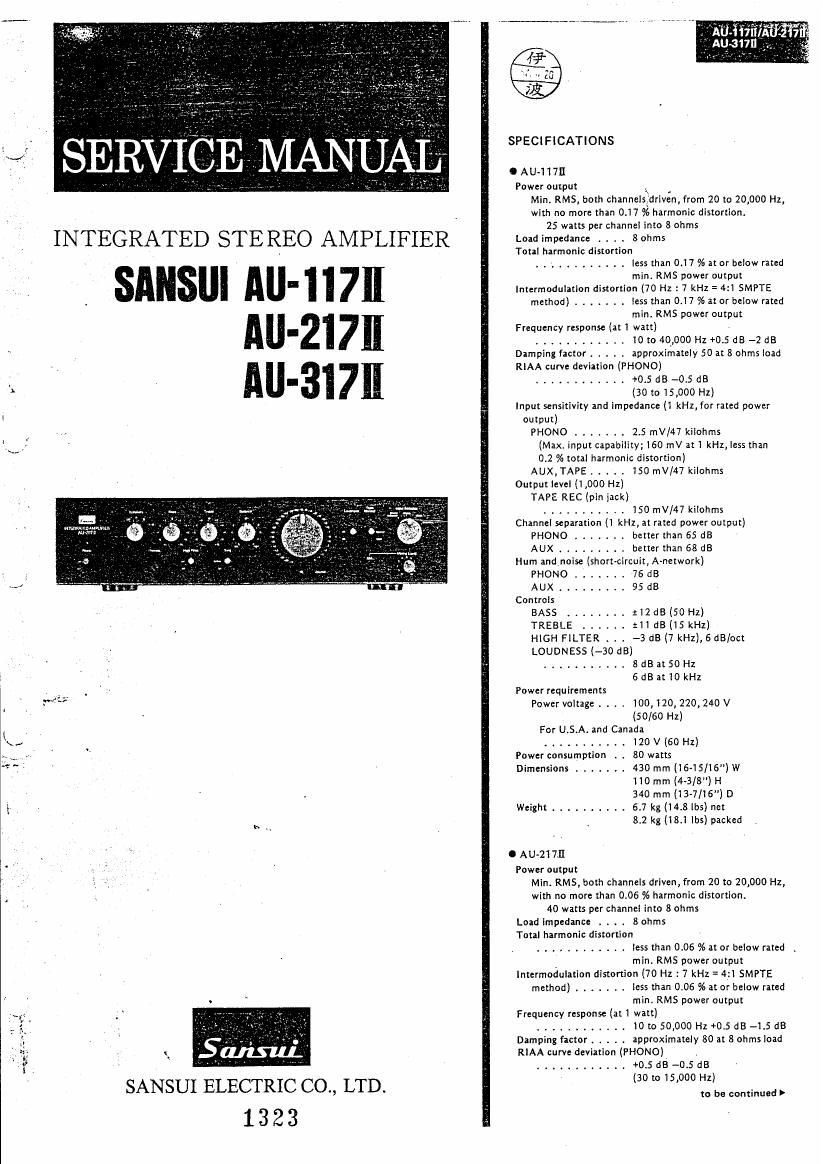

Sansui AU 117II AU 217II AU 317II Service Manual

Page 1

SPECIFICATIONS

I AU-l 171!

Power output ,4. _
Min, RMS, both channels riven, from 20 to 20,000 Hz,
with no more than 0.17 Va harmonic distortion.

25 watts per channel Into 8 ohms

Load impedance . V . . Sonms

Total harmonic distortion

. . z ......... less than 0.17 % at or below rated

min. RMS power output
lntermodulatlon distortion (70 Hz : 7 kHz = 4:1 SMPTE
method) ....... less than 0.17 % at or below rated
min. RMS power output

Frequency response (at 1 watt)

............ I0 to 40,000 Hz +0.5 dB -2 dB
Damping factor. . approximately 50 at 8 ohms load
RIAA curve deviation (PHONO)

............ +0.5 :18 -0.5 dB

(30 to 15,000 Hz)
input sensitivity and impedance (1 kHz,fot rated power
output)
PHONO ....... 2.5 mV/47 kilohms
(Max. input capability; 150 mV at 1 kHz, less than
02 % total harmonic distortion)
AUX. TAPE ..... 150 mV/47 kilohms
Output level (1,000 Hz)
TAPE REC (pin inck)
........... 150 rnV/47 kiiohms
Channel separation (1 kHz, at rated power output)

INTEGRATED STEREO AMPLIFIER,

. SANSIII All-11711
.V All-21711
" All-317i!

PHONO t . . i better than 65 dB
AUX ....... V better than 68 d8

Hum andlnoise (short-circuit, A-network)
PHONO ....... 75 dB

" AUX ......... 95 dB

Controls
BASS ........ =12 dBISOHZ)
TREBLE . t . 211 68 (IS kHz)
HIGH FILTER . . -3 dB (7 kHz), 6 dB/oct
LOUDNESS (-30 dB)

........... 8 dB at 50 Hz
6 dB at IO kHz
Power requirements

, Power voltage . . . . 100,120,220, 240 V
(50/60 Hz)
For UTS.AT and Canada
, ........... 120 V (60 Hz)
Power consumption , . 80 watts
Dimensions ....... 430 mm (l6-15/16) W

110 mm (4~3I8") H

340 mm (13-7/16") D
Weight .......... 6.7 kg (14.8 lbs) net

8.2 kg (1831 lbs) packed

i'

O AU-21 711
Power output
Min. RMS, both channels driven, from 20 to 20,000 Hz,
with no more than 0.06 % harmonic distortion.
40 watts per channel into 8 ohms
Load impedance . . . . 8 ohms
Total harmonic distortion
............ less than 0.06 % at or below rated
_ min. RMS power output
lntermodulation distortion (70 Hz : 7 kHz = 4:15MPTE
method) iiiiiii less than 006 96 at or below rated
min, RMS power output
Frequency response (at 1 watt)

............ ID to 50,000 Hz +0.5 d8 -I.5 dB
Damping factor ..... approximately 80 at 8 ohms load
, RIAA curve deviation (PHONO)
............ +0.5 dB ~0.5 dB

(30 lo l5,000 Hz)
to be continued >

SANSUI ELECTRIC 00., LTD.
1 3 2 3
