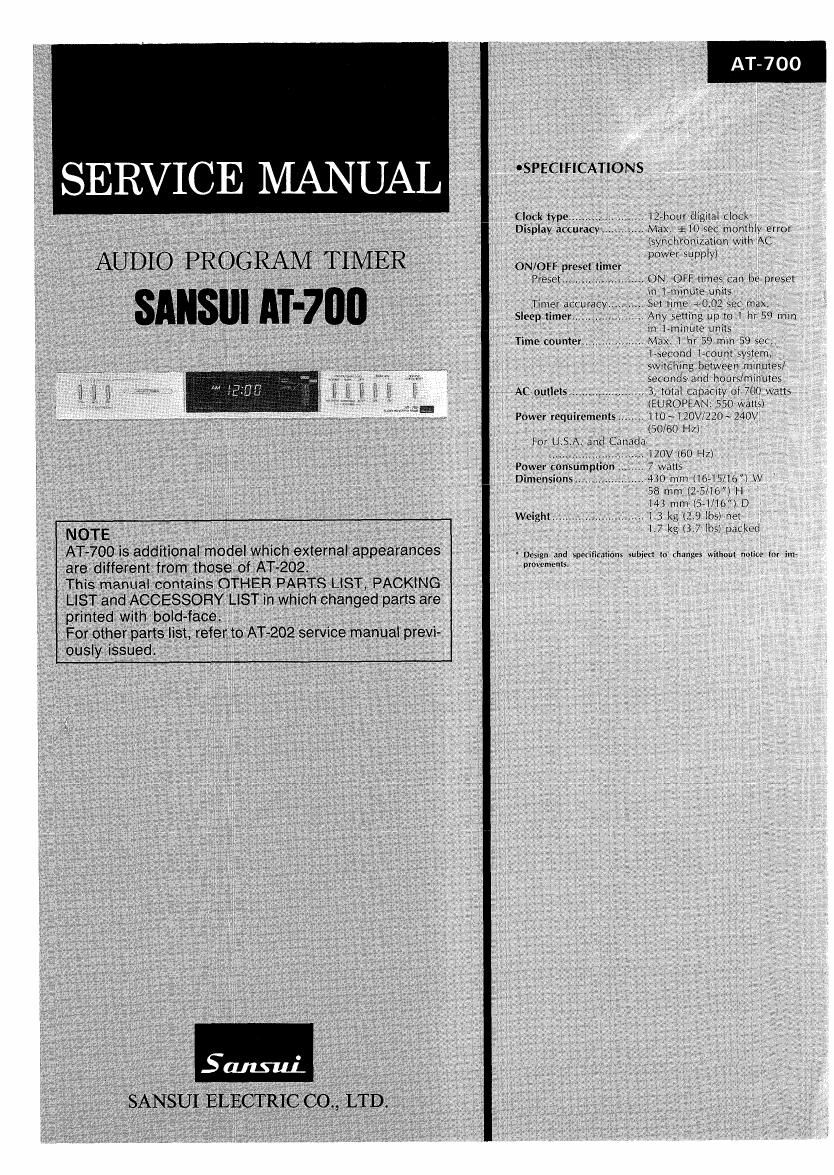

Sansui AT 700 Service Manual

Page 2

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS, XX and
XX-V on the parts list and the schematic diagram
mean followings respectively.

UL ............................... Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)

CSA ............................ Manufactured for Canadian market.

SA ........... .. Manufactured forSouth African market.

Manufactured for United Kingdom market.

.. Manufactured for European market.

Manufactured for Australian market.

.. Standard Version with Inner Voltage
Selector.

XX-V .... Standard Version with Outer Voltage

Selector,
NON MARK ................ Common Parts.

BS, UK....
EU ..
AS...
XX ..

2. .Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

r- OAbbreviations List

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar

SR. : Solid Resistor Electrolytic Capacitor

Ce.R. : Cement Resistor Ta.C. :Tantalum Capacitor

MR. : Metal Film Resistor F.C, : Film Capacitor

FR : Fusing Resistor M.P. : Metalized Paper Capacitor

N.|.R. : Non~lnflammable Resistor P.C. : Polystyrene Capacitor

A.R. : Array Resistor _ GC. : Gimmic Capacitor

C.C. : Ceramic Capacitor A.C. : Array Capacitor

C.T. : Ceramic Capacitor, V.R. :Variable Resistor
Temperature Compensation S.V.R. : Semi Variable Resistor

E.C. : Electrolytic Capacitor SW. : Switch

E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor

EB. : Bi-Polar Electrolytic
Capacitor
