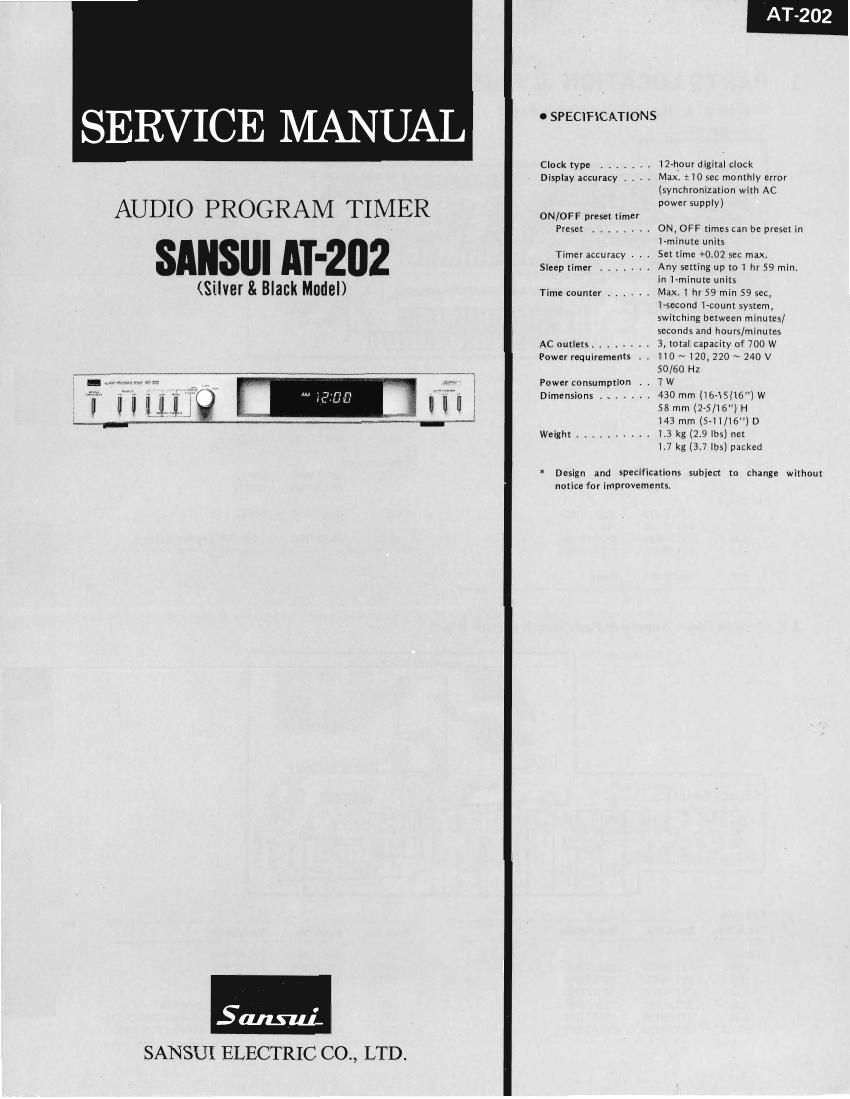

Page 1
SERVICE MANUAL
Clock type ....... 12-hour digital clock
Display accuracy . . . . Max, :10 sec monthiy error
(synchronization with AC
AUDIO PROGRAM TIMER ONIOFF presettimer powersuppm
Preset ....... ON, OFF times can be preset in
i-minute units
- Timer accuracy . , . Set time +0.02 sec maxt
Sleep timer ....... Any setting up to 1 hr 59 min.
. in 17minute units
(SIIVBT 8| BlflCk MUdEI) Time counter ...... Max. 1 hr 59 min 59 sec,
i-second i-count system,
switching between minutes/
seconds and hours/minutes
AC outlets ........ 3,10121 capacity of 700 W
Power requirements . . 110 ~120, 220 ~ 240 V
50/60 HZ
Power consumption . . 7 W
Dimensions ....... 430 mm (16-15/16) W
58 mm (2'5/16) H
143 mm (541/16") D
Weight .......... 13 kg (2.9 lbs) net
1.7 kg (37 lbs) packed
* Design and specifications subject to change without
notice for improvements.
SansuL
SANSUI ELECTRIC CO., LTD.
