Sansui AM 900 Service Manual
This is the 14 pages manual for Sansui AM 900 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui AM 900 Service Manual (Ocr-read)

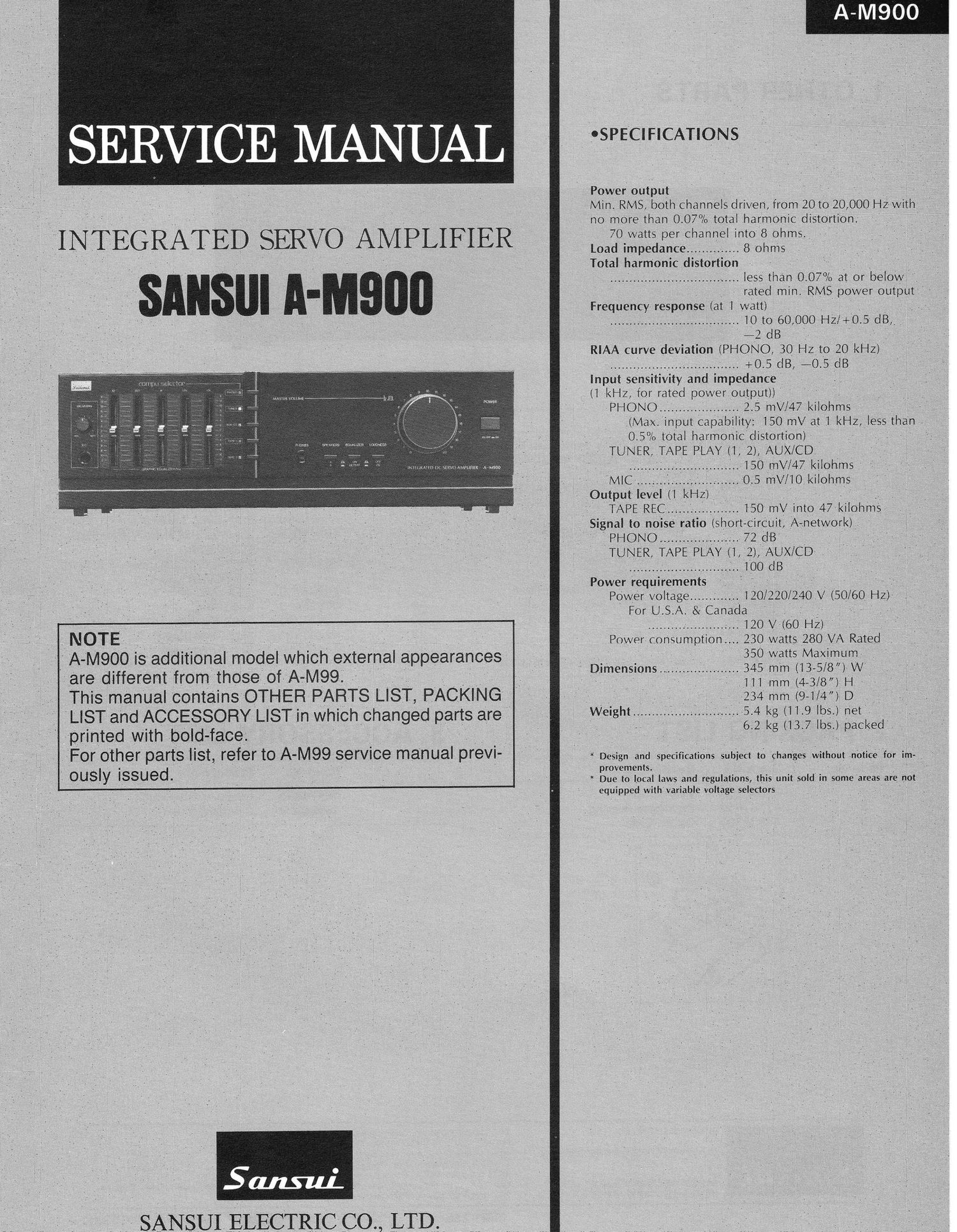

Page 1
SERVICE MANUAL
LEGRATED 5:, V0 AMPLIFIER
fthose of A M99
,_ontams OTHER PARTS HST PACKING {
ESPECIHCATIONS
Power output
no more than 0 07% total harmonic dsstomo
70 watts per channel into 8 (3th .
Load impedance...;v.i,...= ..... 8 ohms
' Tetal harmonic distortion
input sensitivity and Impedance
(1 kHz for rated power output)) 97
T inf W h Changed parts are 4 L
SANSUI.ELECTRICCO., LTD:
,* Design and specnfscahons suject to "ch
provementsu ,. .
* Due to iocal iaws and reguiattons, this 11- »_
equipped with variablé Voltage sefectqrs f:
Page 2
A-M900
1. OTHER PARTS
0Front View
@: (1617 15 1314 1112)
Parts List
Parts No. Stock No. Description Parts No. Stock No. Description
1. 47732400 Front Panel Assy (with Push Knob 12 46556400 Push SW., LOUDNESS-EOUALIZEF
1-1, PHONO-TUNERAUX/DA- 13 47538200 Push Knob, SPEAKERS
_ TAPE) 14 46361000 Push SW., SPEAKERS
2 47744200 Slide Knob, GRAPHIC EOUALIZER 15 24306200 Jack, PHONES
3 46834600 250k0><2 Slide V.R., GRAPHIC 16 47560200 Push Knob, TAPE-2
EOUALIZER 17 46556300 Push SW., TAPE-2 _
4 46396700 Push SW., PHONO-TUNER' 18 46176900 L.E.D TLS-123 (Red), GRAPHIC
AUX/DA-TAPE-I EOUALIZER
5 47560400 Bonnet (XX,UL,CSA) or 46470200 L.E.D SEL22108 (Red), GRAPHIC
47560500 Bonnet (EU,BS,AS) EOUALIZER
6 47557200 Knob, MASTER VOLUME (Right) 19 46838700 Jack, MIC
7 47557100 Knob, MASTER VOLUME (Left) 20 07895410 Knob, MIC
8 46555900 150k9><2 V.R., MASTER VOLUME 21 46834700 201<0 (A) V.R., MIC
9 47157800 Push Knob, POWER 22 47491020 Side Panel (Right)
A10 46364300 Push SW., POWER 23 47490910 Side Panel (Left)
11 47560300 Push Knob, LOUDNESS-EOUALIZER
2. PACKING LIST
Parts No. Stock No. Description
1 47859000 Vinyl Cover
2 47187650 Styrofoam Packing
3 47937700 Carton Case
3. ACCESSORY LIST
Stock No. Description
46979600 Operating Instruction
Operating Sheet
46983300
SANSUI ELECTRIC CO.. LTD.:
SANSUI ELECTRONICS CORPORATION:
SANSUI ELECTRONICS (U.K.)
SANSUI ELECTRONICS G.M.B.H,:
14-1, lzumi 2-chome, Suginami-ku, Tokyo 168 Japan
PHONE: (03) 324-8891/TELEX: 232-2076 (International Division)
1250 Valley Brook Ave. Lyndhurst, N.J. 07071 USA.
17150 South Margay Ave. Carson, California 90746 USA.
3036 Koapaka Street. Honolulu, Hawaii 96819 USA.
LTD.: Unit 10A, Lyon Industrial Estate, Rockware Avenue, Greenford, Middx U86, OAA, England
Pau Ehrich Strasse 8, 6074 Redermark 2, West Germany
Printed in Japan (456320M)
(SM1-256)
