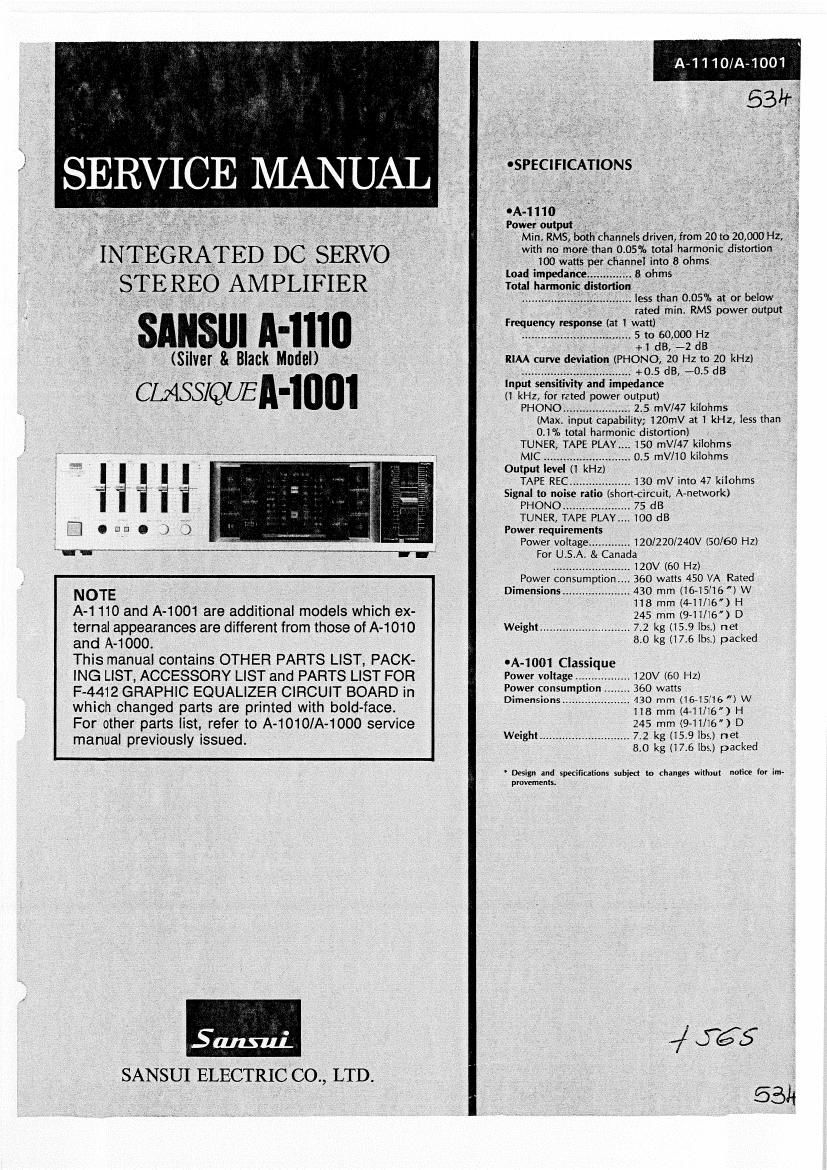

SERVICE MANUAL
TEGRATED DC SERVO
STEREO AMPLIFIER

s[IIIISuI A-IIIII

(Silver& Black Muriel)

L CMSSIQUEA'mm

' *y i érsgPEClFICATlONS, "

dA-mo _ p
' Poweroutput

NOTE

A-1 110 and A-1001 are additional models which ex-
ternal appearances are different from those of A-1010
and A-1000.

This manual contains OTHER PARTS LIST, PACK-
ING LIST, ACCESSORY LIST and PARTS LIST FOR
F-4412 GRAPHIC EQUALIZER CIRCUIT BOARD in
which changed parts are printed with bold-face.
For other parts list, refer to A-1010/A-1000 service
manual previously issued.

SANSUI ELECTRIC CO., LTD.

3.

" A-1110/A-1001

Min. RMS th cfianneis driven, from 20 to 20 000 HZ.

with no more than 0. 05% Idtal harmonic distortion ,

L 100 watts per channel into 8 ohms ,
load impedance... ... .8 ohms , _

Total hamwni distortion '

....... less than 0. 05% at or below
rated min RMS power output fi
Frequency response (at 1 watt) '

.................................. 5 to 60,000 Hz

,_ +1 dB, -2 dB
RIM curve deviation (PHONO, 20 Hz to 20 kHz)
_ ....... +0 5 dB, -0. 5 dB
Input sensitivity and impedance
(1 kHz, for rated power output)
PHONO 2.5 mV/47 kilohms

(Max. p p ty; IZOmV at I kHz, less than
0.1% total harmonic distortion)
TUNER TAPE PLAY. 1.50 mV/47 kilohms

MIC. . ... 0.5 mV/iO kilohms
Output level (1 kHz)

TAPE REC ................... 130 mV into 47 kilohms
Signal to noise ratio (shortcircuit, A-network)

PHONO 75 dB

TUNER, TAPE PLAY.... 100 dB
Power requirements
Power voltage. .120l220/240V (50/60 Hz)
For U. S A. & Canada

... 120V (60 HZ)
Power consumption 360 watts 450 VA Rated
Dimensions. 430 mm (16-1916") W

118 mm (4'll/l6) H

245 mm (9-li/l6) D
Weight ............................ 7.2 kg (15.9 lbs.) net

8.0 kg (l7.6 lbs.) packed

'A- 1001 Classique
Power voltage .......
Power consumption.
Dimensions ...........

.. 120V (60 HZ)

360 watts

430 mm (IE-15316") W
118 mm MAN/16") H
245 mm (941116) D

Weight ............................ 7.2 kg (15.9 lbs.) net

8.0 kg (17.6 lbs.) packed

' Design and specifications subied to changes wilhnut notice for im-
movements.
