Sansui 310 Brochure

Page 1

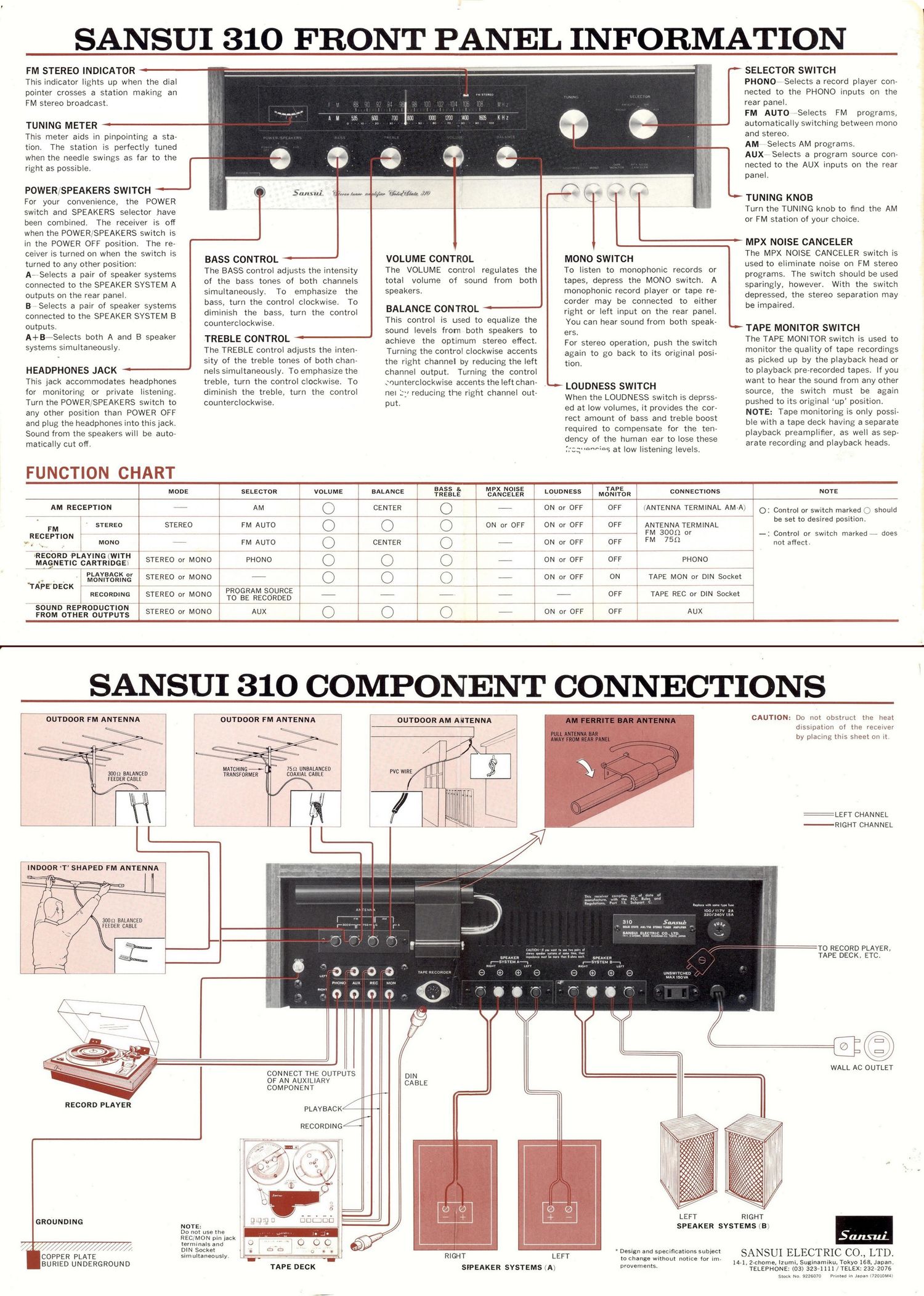

SANSUI 310 FRONT PANEL INFORMATION

FM STEREO INDICATOR

This indicator lights up when the dial
pointer crosses a station making an
FM stereo broadcast.

TUNING METER

This meter aids in pinpointing a sta-
tion. The station is perfectly tuned
when the needle swings as far to the
right as possible.

POWER/SPEAKERS SWITCH

For your convenience, the POWER
switch and SPEAKERS selector have
been combined. The receiver is Off
when the POWER,«SPEAK~ERS switch is
in the POWER OFF position. The re-
ceiver is turned on when the switch is
turned to any other position:

A~ Selects a pair of speaker systems
connected to the SPEAKER SYSTEM A
outputs on the rear panel.

B Selects a pair Of speaker systems
connected to the SPEAKER SYSTEM B
outputs.

A+B-Selects both A and B speaker
systems simultaneously.

v

HEADPHONES JACK

This jack accommodates headphones
for monitoring or private listening.
Turn the POWER,$SPEAKERS switch to
any other position than POWER OFF
and plug the headphones into this jack.
Sound from the speakers will be auto-
matically cut Ofi.

FUNCTION CHART

3 ? e

Stun ui,

BASS CONTROL

The BASS control adjusts the intensity
Of the bass tones Of both channels
simultaneously. To emphasize the
bass, turn the control clockwise. To
diminish the bass, turn the control
counterclockwise.

TREBLE CONTROL

The TREBLE control adjusts the inten-
sity of the treble tones Of both chan-
nels simultaneously. TO emphasize the
treble, turn the control clockwise. To
diminish the treble, turn the control
counterclockwise.

(/m (ng'qfrizze (57/1

(
V ll'lk law (1

VOLUME CONTROL

The VOLUME control regulates the
total volume of sound from both
speakers.

BALANCE CONTROL

This control is used to equalize the
sound levels from both speakers to
achieve the optimum stereo effect.
Turning the control clockwise accents
the right channel by reducing the left
channel output. Turning the control
counterclockwise accents the left chan-
nel by reducing the right channel out-
put.

MONO SWITCH
To listen to monophonic records or
tapes, depress the MONO switch. A
monophonic record player or tape re-
corder may be connected tO either
right or left input on the rear panel.
You can hear sound from both speak-
ers.

For stereo operation, push the switch
again to go back to its original posi-
tion.

LOUDNESS SWITCH

When the LOUDNESS switch is deprss-
ed at low volumes, it provides the cor-
rect amount Of bass and treble boost
required to compensate for the ten-
dency Of the human ear to lose these

f

.rcquencies at low listening levels.

SELECTOR SWITCH

PHONO Selects a record player con-
nected to the PHONO inputs on the
rear panel.

FM AUTO Selects FM programs,
automatically switching between mono
and stereo.

AM-r Selects AM programs.

AUX- Selects a program source con-
nected to the AUX inputs on the rear
paneL

TUNING KNOB
Turn the TUNING knob to find the AM
or FM station of your choice.

MPX NOISE CANCELER

The MPX NOISE CANCELER switch is
used to eliminate noise on FM stereo
programs. The switch should be used
sparingly, however. With the switch
depressed, the stereo separation may
be impaired.

TAPE MONITOR SWITCH

The TAPE MONITOR switch is used tO
monitor the quality of tape recordings
as picked up by the playback head or
to playback pre-recorded tapes. If you
want to hear the sound from any other
source, the switch must be again
pushed to its original up position.
NOTE: Tape monitoring is only possi-
ble with a tape deck having a separate
playback preamplifier, as well as sep-
arate recording and playback heads.

MODE SELECTOR VOLUME BALANCE EQEELE McANCEEEE LOUDNESS MONETEOR CONNECTIONS NOTE
i .
AM RECEPTION - F AM 0 CENTER 0 - ON or OFF OFF (ANTENNA TERMINAL AM-A) 0: Control or switch marked 0 should
-i777 WEE. 7 . , , l . _.. __4 . -__- NEH... , iwiwfifi. 7. . __ ELEA_. . I W, MH-7~#7O_W-_-. , . , -7. - _._-__._E . . .
" . be set to deSIred OSItIon.
FM sreaeo STEREO FM AUTO ; O Q 0 ON or OFF ON or OFF OFF ANTENNA TERMINAL p
,, e ~~I---~- ,-___.__ i , , W --- 4 FM 3000 or ' -: Control or switch marked - does
RECEPTION I FM 750 ;
w, __ L MONO - FM AUTO 0 CENTER 0 - ON or OFF OFF , not afiect.
-/~ 7 .. 77 ~~ 7-7 7777 777* 7W . , - -- . 777777 7 L, H» ,_ 4» -- v.4L" ~ V7 ,LL... 777; A__..__.,,_ # ~ -4---v~r~-777fi ,._,E A, - --1'
RECORD PLAYING (WITH 1
MAgNETIc CARTRIDGE) STEREO or MONO PHONO O O O __ ON or OFF OFF PHONO
- PLAYBACK °' STEREO or MONO - O O O - ON or OFF ON 1 TAPE MON or DIN Socket
_ ,1 . . L MONITORING _
TAPEDECK Reconome STEREO or MONO PROGRAM SOURCE _ _ _, _ - OFF TAPE REC or DIN Socket
TO BE RECORDED l A
SOUND REPRODUCTION E T ' " _ I T i T I
FROM OTHER OUTPUTS STEREO or MONO AUX O O O . - ON or OFF I OFF AUX

SANSUI 310 COMPONENT CONNECTIONS

OUTDOOR FM ANTENNA

3000 BALANCED
FEEDER CABLE

\

INDooRFT' SHAPED FM ANTENNA

300 O BALANCED
FEEDER CABLE

RECORD PLAYER

GROUNDING

C7.

77»/*'zv??/Aféf////Zféé%{/,//

COPPER PLATE
BURIED UNDERGROUND

NOTE:

DO not use the
REC;MON pin jack
terminals and
DIN Socket
Simultaneously.

OUTDOOR FM ANTENNA

.--_ 5 flat 3:3 --_

MATCHING --+ i-
TRANSFORMER

750 UNBALANCED
COAXIAL CABLE

\

CONNECT THE OUTPUTS
OF AN AUXILIARY
COMPONENT

PLAY BACK

RECORDING

DC)

TAPE DECK

OUTDOOR-AM AIITENNA

PVC WIRE -

RIGHT

SIPEAKER SYSTEMS (A)

LEFT

LEFT

provements.

SPEAKER SYSTEMS (B)

* Design and specifications subject
to change without notice for im.

CAUTION: Do not obstruct the heat
dissipation of the receiver
by placing this sheet on it.

LEFT CHANNEL
RIGHT CHANNEL

TO RECORD PLAYER,
TAPE DECK, ETC.

WALL AC OUTLET

RIGHT

Sang-all

SANSUI ELECTRIC CO., LTD.

14.1, 2-chome, lzumi, Suginamiku. Tokyo 168. Japan.
TELEPHONE: (03) 323-1111/TELEX:23272076
Stock No. 9226070 Printed In Japan II72010M42I
