Rotel RX 940AX OM

Extracted text from Rotel RX 940AX OM (Ocr-read)

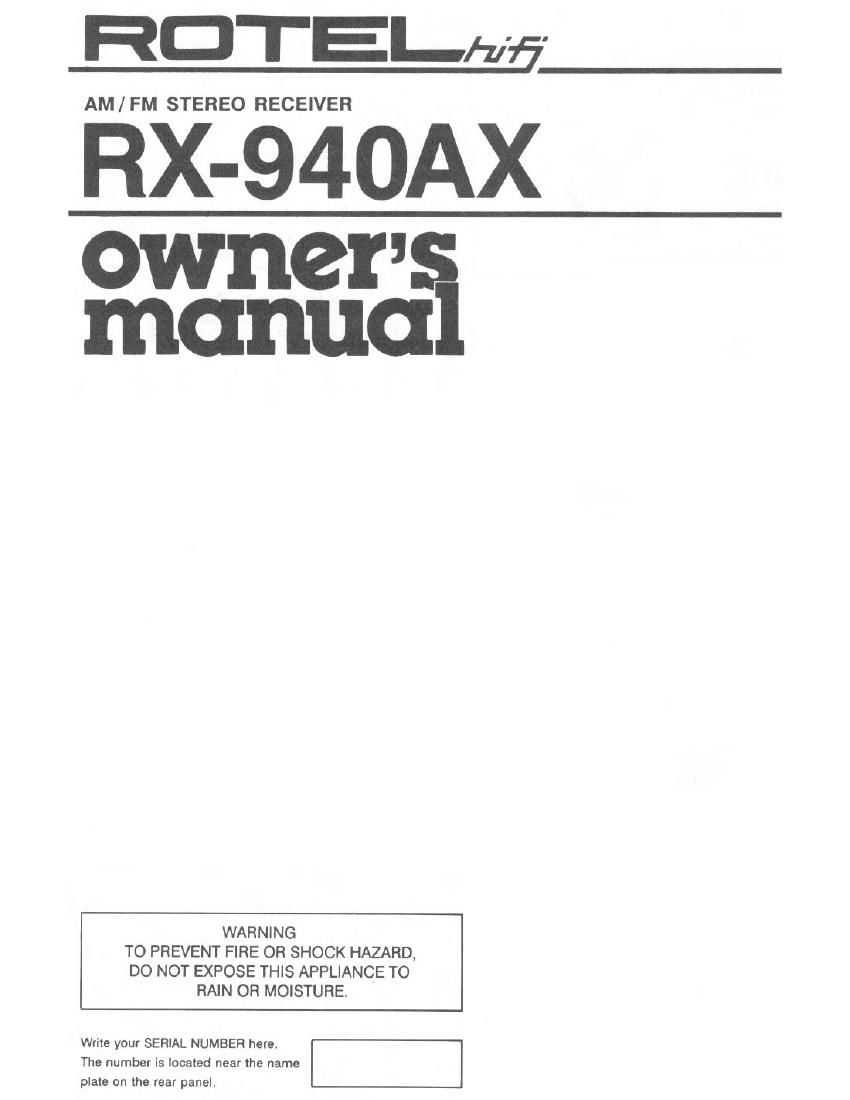

Page 1

HOTEL/1x5

AM/FM STEREO RECEIVER

RX-94OAX

owners
manna

WARNING
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

Write your SERIAL NUMBER here.
The number is located near the name
plate on the rear paneIA

Page 2

SAFETY INSTRUCTION

1. Read lnsmrctlone- All the safety and operating instructions should
be read before the appliance Is operated.

2. l-leialn Instructione~ The safety and operating instructions should
be retained for future reference.

3. Need Wamlnge-AII warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow lnetructlone- NI operating and use instructions should be
followed,

5. Water and Moisture- The appliance should not be used near water
- ior example. near a bathtub, washbowi kitchen sink. laundry tub. in
a wet basement, or near a swimming pool, and the like.

a. Gene and Stands-the appliance
should be used only with a cart or stand
that is recommended by the manufac-
turer.

6A. An appliance and cart combination
should be moved with care. Quick stops.
excessive force. and uneven surfaces may
cause the appliance and cart combination
to overturn.

I.WallorCelIIIng Mourning-Theap-
pliance should be mounted to a wall or
cellling only as recommended by the
manuiacturer.

e. Ventilation-The appilance should be situated so that its location
or position does not interfere with its proper ventilation. For example.
the appliance should not be situated on a bed. sofa. rug. or similar
surface that may block the ventilation openings; or placed In a built-in
installation such as a bookcase or cabinet that may impede the flow
of air through the ventilation openings.

9. Heat- The appliance should be situated away from heat sources
such as radiators, heat registers. stoves. or other appliances (including
amplifiers) that produce heat.

10. Power Sources-- The appliance should be connected to a power
supply only of the type described in the operating instructions or as
marked on the appliance.

11. Grounding or Polarization- The precautions that should be taken
so that the grounding or polarization means oi an appliance is not
defeated.

12. Power-Cord Protecilort- Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items placed
upon or against them. paying particular attention to cords at plugs.
convenience receptacles. and the point where they exit from the
appliance.

PORTABLE CART
WARNING

SJIZSA

13. Cleaning- The appliance should be cleaned only as recom-
mended by the manufacturer.

14. Nonuse Periods- The power cord of the appliance should be
unplugged from the outlet when left unused for a long period oi time.
15. Oblect and Uquld Entry- Care should be taken so that objects
do not tall and liquids are not spilled Into the enclosure through
openings.

16. Damage Requiring Service- The appliance should be serviced
by qualified factory authorized service personnel when:

A The power-supply cord or the plug has been damaged; or

B. (biects have fallen. or liquid has been spilled into the appliance;
or

C. The appliance has been exposed to rain: or

D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or

E The appliance has been dropped. or the enclosure damaged.

11. Servicing- The user should not attempt to service the appliance
beyond that described In the operating instructions. NI other servicing
should be referred to qualified factory authorized service personnel.

WARNING: To reducetherlskoiilreoreiectrls shochonot
expose this appliance to rain or moisture

Q RISK OF ELECTRIC SHOCK
DI! NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO OUAIJFIED SERVICE
PERSONNEL

equilateral triangle.is intended to alert the user to the
presence of uninsulated 'dangerous voltage" within the
products enclosure that may be of suificient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is
Intended to alert the user to the presence 01 Important ii:

The lightning flash with arrowhead symbol,wlthin an

operating and maintenance (servicing) instructions in
the literature awompanying the appliance.

Power Unea - An outdoor antenna should be located away irom
power lines.

Outdoor Antenna Grounding - If an outside antenna is connected
to the receiver. be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static
charges. Section 810 of the National Electrical Code. ANSI / NFPA
No. 70-1984. provides information with respect to proper ground-
ing of the mast and supporting structure. grounding of the lead-
in wire to an antenna discharge unit. size oi grounding con-
ductors. location of antenna-discharge unit. connection to ground -
ing electrodes. and requirements for the grounding electrode. See
Figure.

:- Use No. 10 AWG (5.3 mm?) copper. No. BAWG (8.4 mm?)
aluminum. No. 17 AWG ( 1.0 mm?) copper-clad steel or bronze
wire. or larger. as a ground wire.

b- Secure antenna lead-in and ground wires to house with stand
-oii Insulators spaced irom 4-6 feet (1.22 - 1.83 m) apart.

0- Mount antenna discharge unit as close as possible to where
lead-in enters house.

d- Use jumper wire not smaller than No. 6 AWG ( 13.3 mm?)
copper. or the equivalent. when a separate antenna-grounding
electrode is used.

BMMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE INSTRUCTIONS

ma ssevics oaouuomo
momma svsrau
to g m «a .u- m

Dorm Mad OHM new caoimoiuo summer
Damn a rzn r: u m) M0 in: mm
Ir tomato av lOCAL CODES SEE use

sauce IIOZI in

52--

FOR U.S.A. ONLY
