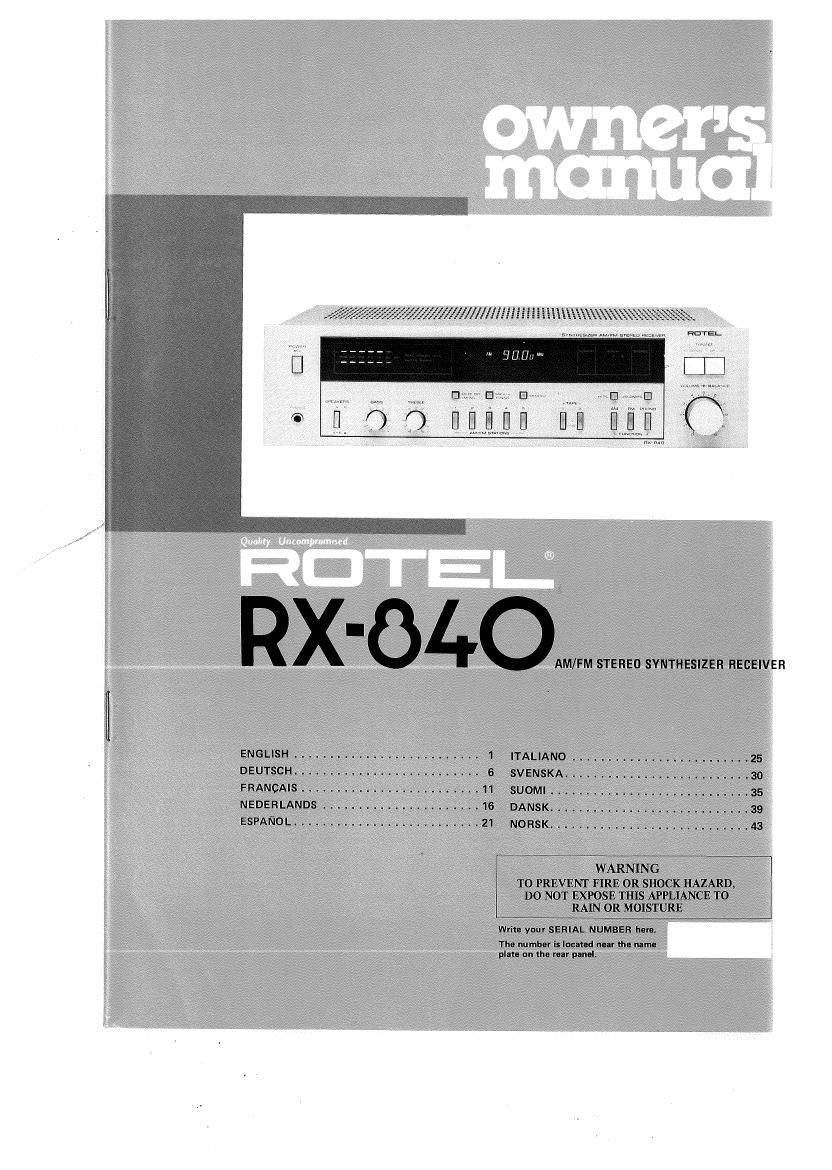

Rotel RX 840 OM

This is the 27 pages manual for Rotel RX 840 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 27
Rotel RX 840 OM

Extracted text from Rotel RX 840 OM (Ocr-read)


Page 2

; [IIIiIISH

AM/FM STEREO SYNTHESIZER RECEIVER RX-840

INTRODUCTION

We at Rotel want to thank you for purchasing
our audio product.

Rotal audio products are designed to use the
latest electronic technology, and they incorpo»
rate our long experience as a specialist manufac-
turer of audio equipment We are confident
that you will find satisfaction in the high
quality sound and top performance, and that
you will find pleasure in the functional beauty
achieved through human-engineering concept.
Before starting operation, please read this
instruction manual thoroughly and acquaint
yourself with the proper mode of using the unit
and all its connections.

We hope you will enjoy tophotch performance
for many years to come.

BEFORE ENJOYMENT/
POWER SUPPLY

Follow the instructions below for maximum
safety:

1. Use a wall outlet for power supply

Be sure to connect the AC line cord directly to
a household wall outlet, and not to an auxiliary
outlet on another component Be certain that
the outlet voltage matches the electrical rating
of the unit. found on the rear panel name plate.
2. Connecting and removing Ac cord

as sure to connect or disconnect the AC line
cord only after turning off the power switch to
prevent possible shock noise or damage to
the speakers.

3. Ventilate the unit well

Never block any ventilation holes at the top
and bottom of the unit. Be sure also to provide
ample ventilation space around the unit. Poor
ventilation may result in damage due to exces-
sive heat.

4. Do not open the cabinet

In order to avoid electric shock or damage to
the component, never open the cabinet If a
foreign object falls inside the unit by mistake,
turn the power off, disconnect the wall plug,
and consult a qualified electrician or your
dealer.

5. Installation

Be sure to place the unit in a level and flat place
where it is free from humidity, vibration, high
temperature and not exposed to direct sunlight
Be careful not to place the unit in a highly
enclosed place such as near a wall or on a
bookshelf. A poor ventilation will cause unde-
sirable effects to the unit.

6. Moving the unit

When transporting, remove the AC cord from
the wall outlet and all other connected cords on
the rear panel to prevent wire breakage and
short circuits.

7. It the unit gets wet

If the unit should get wet, immediately discon-
nect the AC cord, and consult your dealer or a
qualified electrician.

8. Cleaning and maintenance

Do not use chemicals such as benline or thin-

ners on the front panel. Always use a soft, dry
cloth to clean the unit.

9. Owner's manual

Keep the owners manual near the unit, and
record the serial number (found on the rear
panel) on the cover.

EXCLUSIVE NOTE FOR U.K.

lf your unit comes with e 2-core cable
without a plug, make certain live and
neutral leads are connected to the proper
terminals. Check that the terminals are
screwed down firmly and no loose strands
of Wire are present

IMPORTANT: The wires in this mains lead
are coloured in accordance with the follow-

ing code:
BLUE: NEUTRAL
BROWN: LIVE

As the colours of the wires in the mains lead
of this apparatus may not correspond with
the coloured markings identifying the
terminals in your plug proceed as follows.
The wire which is coloured BLUE must be
connected to the terminal which is marked
with the letter N or coloured BLUE or
BLACK. The wire which is coloured
BROWN must be connected to the terminal
which is marked with the letter L or colour»
ed BROWN or RED.

SPEAKERS

The unit allows hookup of two speaker sys»
terns. Use speaker systems with impedance
ratings of 446 ohms. Before hooking up your
speaker system, be sure to check its impedance,
which should be indicated either on the back of
the speaker, or in the speaker instruction man-
ual.

HOOKING UP SPEAKERS

On the rear panel of the RX~840 are two sets
of speaker terminals, A" and a", to which
two speaker systems may be connected. Cone
nect the speaker leads of the right-hand speaker
to terminals "R" of A" (or "3"), and the
speaker leads of the left-hand speaker to ter-
minals L" of A" (or 8"). Make sure that the
"+" speaker lead is connected to the "+" ter-
minal, and the "-" lead to the "-" terminal.
Strip 1.06m (3/8") of the polyvinyl chloride
insulation from the end of each speaker lead.
Twist the exposed strands tightly, and secure
the end with'a touch of solder.

The terminals are the push-insert type. Insert
the end of the lead into the hole while pushing
on the button. Then release the button; the
hole will close and the cord is firmly fixed.
Note: When only one pair of speakers is used,
be sure to connect them to terminals A". if
they are connected to terminals "B", no sound
will be produced, even when the speaker
selector is set to "A + B position.

AR AL

SPEAKER
RIGHT lEFl

BL

BR

AFl: SPEAKER A/RIGHT
AL: SPEAKER A/LEFT
BR: SPEAKER B/RIGHT
BL: SPEAKER B/LEFT

ANTENNA INSTALLATION AND
CONNECTION

l FM Antenna

Proper installation of antenna is the key to
smooth signal reception. To install the attached
T-shape indoor antenna, stretch it taut and
secure horizontally along a wall or the like
in a location where signal reception is optimal.
Securely connect the antenna to FM antenna
terminals marked "300:2 on the rear panel.
If outdoor type FM antenna is installed, the
T-shape antenna is not necessary. For proper
use of your outdoor FM antenna, follow the
instructions below.

1. Be sure to select the most appropriate
type of antenna for the signal reception condi-
tions in your area.

2. A 75ohm coaxial cable is recommended

1
