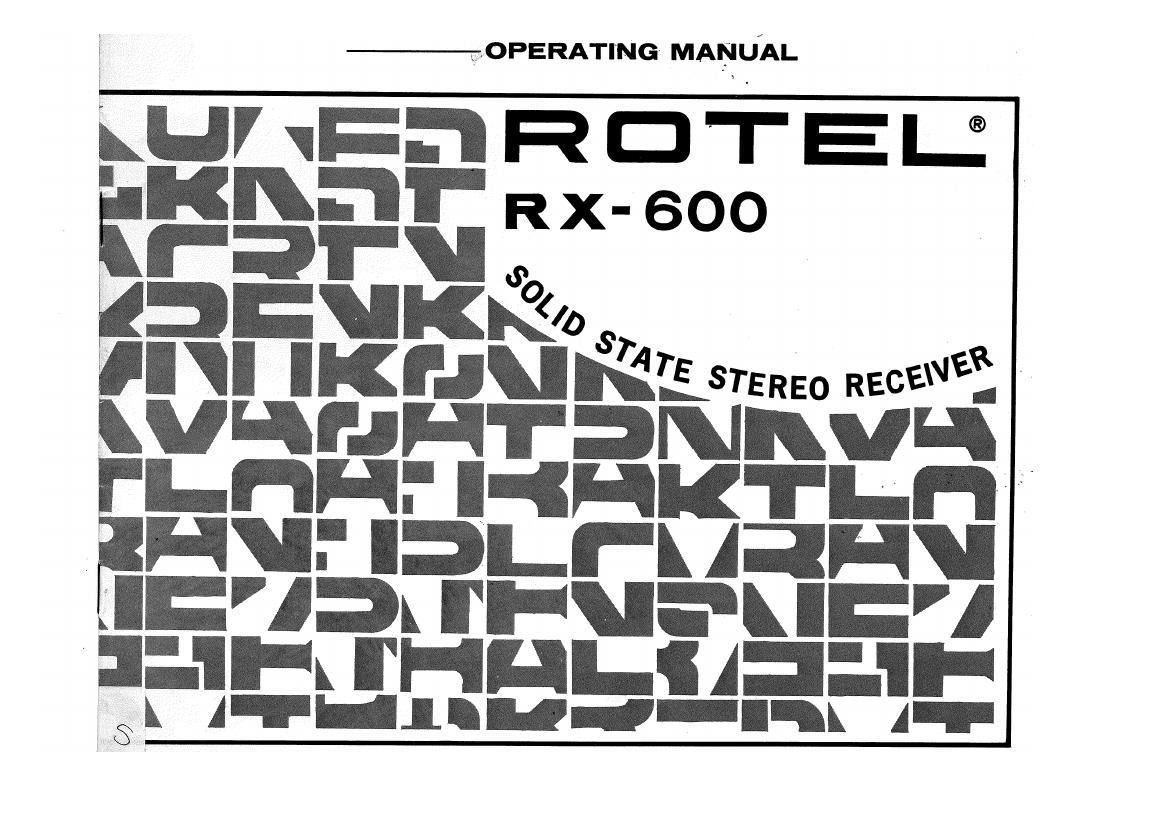

Rotel RX 600 OM

This is the 10 pages manual for Rotel RX 600 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 10
Rotel RX 600 OM

Extracted text from Rotel RX 600 OM (Ocr-read)


Page 2

INTRODUCTION

We would like to take this opportunity to thank you for purchasing our
RX»600 AM/FM Stereo Receiver. In RX-600 you have the finest equipment
available in the Hi-Fi components field. With quality workmanship that
goes into making the RX-600, you can be assured of its flawless perfor~

mance for many years to come.

The RX-600 is equipped with every conceivable control and feature any
demaning audiophile ever hopes of having on his unit. The RXV6OO was de-
signed for both the versatility and ease of operation. It will add professional

studio flexibility to your present music center.

The performance of the RX-6OO is exceptional; it will allow you to ex-
perience true high fidelity as never before. Its full and natural stereophonic
reproduction offers you musical entertainment rivaling that of live perfor-
mances. We sincerely hope you will treasure this professional calibre equip-

ment.

In order to obtain the maximum use out of your unit, please read all of

the following pages of this Operating Manual carefully.

Do not attempt to operate the unit until you have made all the connec-

tions as specified in this Manual.

SPECIAL FEATURES

1)
2)
3)
4)
5)
6)
7)
8)
9)

10)
11)

12)

13)
14)

15)
16)

All Solid State Electronics Design.

All Silicon Output Transistors.

5-Stage IF Amplifier.

Split Power Supply.

Direct-Coupled Circuit.

Integrated Circuit (IC) in the MPX section.

Illuminated Dial Pointer with Stereo Indicator Feature.

Illuminated Dial Board with Black-Out feature.

Illuminated AM/FM Signal Strength Tuning Meter and FM Center-Tuning
Meter.

Function Indicator Lights.

Control Knobs: Speakers, Concentric Bassand Trebule,Balance,-\_lolume,
Selector and Tuning. V
Pushbuttons: Power, Loudness, Tone Defeat, High Filter, Mode, Tape
Monitor and Muting.

Front Panel Stereo Headphone jack.

Connections for: 3 Record Players, 2 Tape Recorders, Auxiliary, 2
pairs of Speaker Systems and separate Pre-Amplifier and Main-Amplifier.
2 AC Power Outlets (switched).

Handsome Wood Cabinet.
