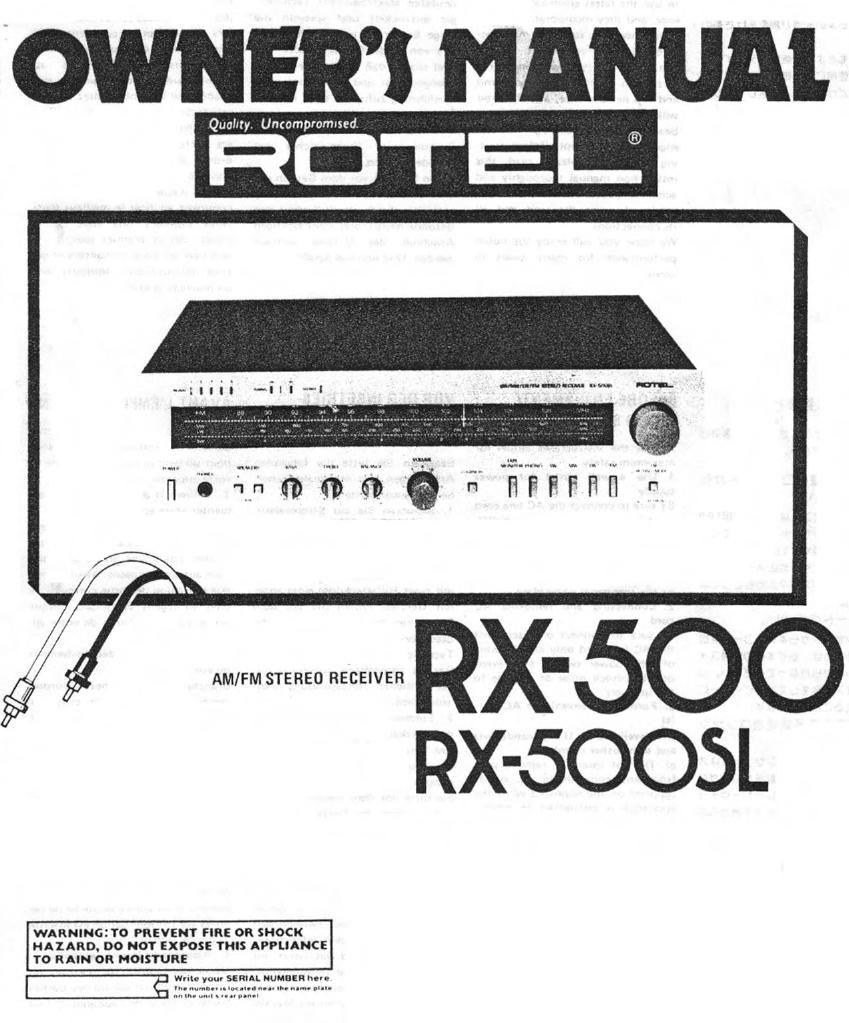

OWNERS MANUAI.

Quahty. Uncompromnsedv

HDTELE

X-SOO
X-SOOSL

WARNINciTO PREVENT FIRE 0R SHOCK
NAIARD. DO NOT EXPOSE THIS APPLIANCE
TO RAIN 0R MOISTURE

Wnle you! SERIAL NUMBER hula
I».M.n.....m.u¢o..y m. on. .m.
m.» w... nun".

Page 2

INTRODUCTION

We at Flotel want to thank you lor
purchasing our audio product.
Rotel audio products are designed
to use the latest electronic techno-
logy. and they incorporate our long
experience as a specialist manulac»
turer 01 audio equipment. We are
confident that you will rind satis-
laction in the him qudity sound
and top perlormance. and that you
will lind pleasure in the lunctional
beauty achieved throuyt human-
engineering concept. Belore start
ing operation. please read this
instruction manual thoroumly and
acquaint yoursell with the proper
mode at using the unit and all
its connections.

We hope you will enjoy topnotch
performance lur many years to
come.

BEFOREENJOXMENT/
POWER SUPPLY

Follow the instructions below lor
max-mum salety

I. Use a wall outlet lot power
supply

Be sure to connect the AC lme cord
drrectly to a household wall outlet.
and not to an auxiliary outlet on
another component. Be certain that
the outlet voltage matches the
electrical rating at the un-t, lound
on the rear panel nune plate.

2. Connecting and removing AC
cord

Be sure to connect or disconnect
the Ac line cord only alter turning
all the power switch, to prevent
Doss-ole shock house or damage to
the speakers

3, Furnidted Convenience AC Out-
let

(Not available lor U.K.. Scandinavia
and some other countries]

al Do not insert or remove plug
lrom any convenience AC outlet
supplied on the appliance while the
appliance Is connected to power
Also do not insert loreign ohlect,
other than a proper plug, into the
convenience AC outlet

bl Do not connect other annlr
ancelsl to convenience AC outlet
tl its/their total power consump
tron exceeds max-mum rated watts
labeled next to the outlet

4 Ventilate the unit wall

Never block any ventilation holes at
the top and bottom ol thr- unit Be
sure also to prowde ample ventrla
tron space around the, unit Poor

ventilation may result in damage
(11 to excess-ye heat

5 Do not open the cabinet

In order to avord electric shock or
damage to the component, never
open the cabinet II a lorergn obyecl
lalls inside the unit by mastalte,
turn the power 0, disconnect the
wall plug, and consult a anal-lied
electrtcran or your dealer.

6. turn the volume control initial-
Iv to mintmum

When lowering the tonearm ol your
turntable onto a record, an excess
ol current in the lower lrequttncy
range may cause damage to the
speakers To prevent thus, always
minimize the volume setting initial-
lv

7. Moving the unit

When transporting, remove the AC
cord item the wall outlet and all
other connected cords on the rear
panel to prevent wne breakage and
short circurts

8 It the unit gets wet

II lhe U71" should get wet, immedr»
ately disconnect the AC cord, and
consult your dealer or a oualtlted
electlnuan

9 Cleaning and maintenance

Do n0t use chemrcals such as
benzvne or thinners on the trout
panel Always use a solt, dry cloth
to clean the unit

to Retain the owner's manual
Retain the owner's manual near the
unit and write down the serial
number (lound on the rear panel)
on the cover

EXCLUSIVE NOTE FOR
U.K.

If your unit comes with a 2-
core cable without a plug, make
certain live and neutral leads
are connected to the proper
terminals. Check that the ter-
minals are screwed down lirmly
and no loose strands ol wire are
present.

IMPORTANT: The wires in this
mains lead are coloured in ac-

cordance with the lollowing
code:

BLUE: NEUTRAL
BROWN: LIVE

As the colours of the wires in
the mains lead 0' this apparatus
may not correspond with the
coloured markian identifying
the terminals in your plug pro-
ceed as follows.

The wire which is coloured
BLUE must be connected to the
terminal which is marked with
the letter N or coloured BLUE
or BLACK. The wire which is
coloured BROWN must be con-
nected to the terminal which is
marked with the letter L or
coloured BROWN or RED.
