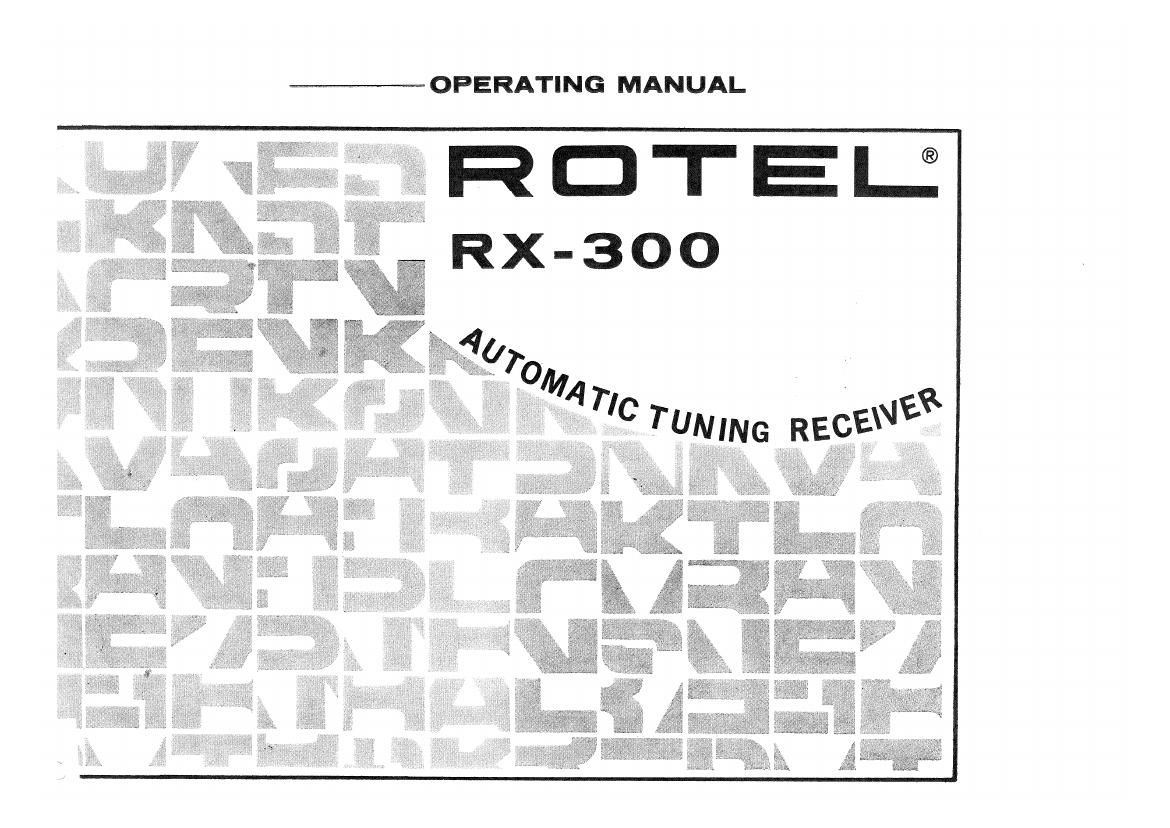

Rotel RX 300 OM

Extracted text from Rotel RX 300 OM (Ocr-read)


Page 2

INTRODUGTIIOII

We would like to take this opportunity to thank you for purchasing
our RX-3OO Stereo Receiver. In RX-BOO you have the finest equipment

available in the Hi-Fi Components field. With the quality workmanship
that goes into making the RX»300. you can be assured of its flawless
performance for many years to come.

The RX-30d is equipped with every conceivable control and feature
any demanding audiophile ever hopes of having on his unit, The RX-BOO
was designed for both the versatility and ease of operation. It will add
professional studio flexibility to your present music center.

The performance of the RX-300 is exceptional; it will allow you to
experience true high fidelity as never before. Its full and natural stereo-
phonic reproduction offers you musical entertainment rivaling that of
live performances. We sincerely hope you will treasure this professional
equipment.

in order to obtain the maximum use out of your unit. please read
all of the following pages of this Operating Manual carefully.

Do not attempt to operate the unit until you have made all the

connections as specified in this Manual.

SPEGIAL FEATURES

1)

2)

3)

4)

5)

6)

7)

8)
9)

10)

3»gang FET Front End Tuner for excellent FM or FM Stereo
reception.

Precision Automatic Tuning System for convenient station search-
ing.

Local-Distant Push-Button Switch for better Auto-Tuning adjust-
ment in relation with broadcasting.

Tone Controls for Bass and Treble offer accurate tone adjustment.
Tape Monitor Push»Button Switch for tape playback and recording.
Two Speaker Selector PushButton Switches for individual or sim«
ultaneous operation of two pairs of speaker systems.

Illuminated Dial Pointer, Stereo indicator and Signal Strength
Meter.

Front Panel Stereo Headphone Jack for easy use.

All Silicon Output Transistors for better high frequency response
and stronger heat resistance.

Ample 80-watt (lHF) Power Amplifier Section.
