Rotel RX 202 Brochure

Extracted text from Rotel RX 202 Brochure (Ocr-read)

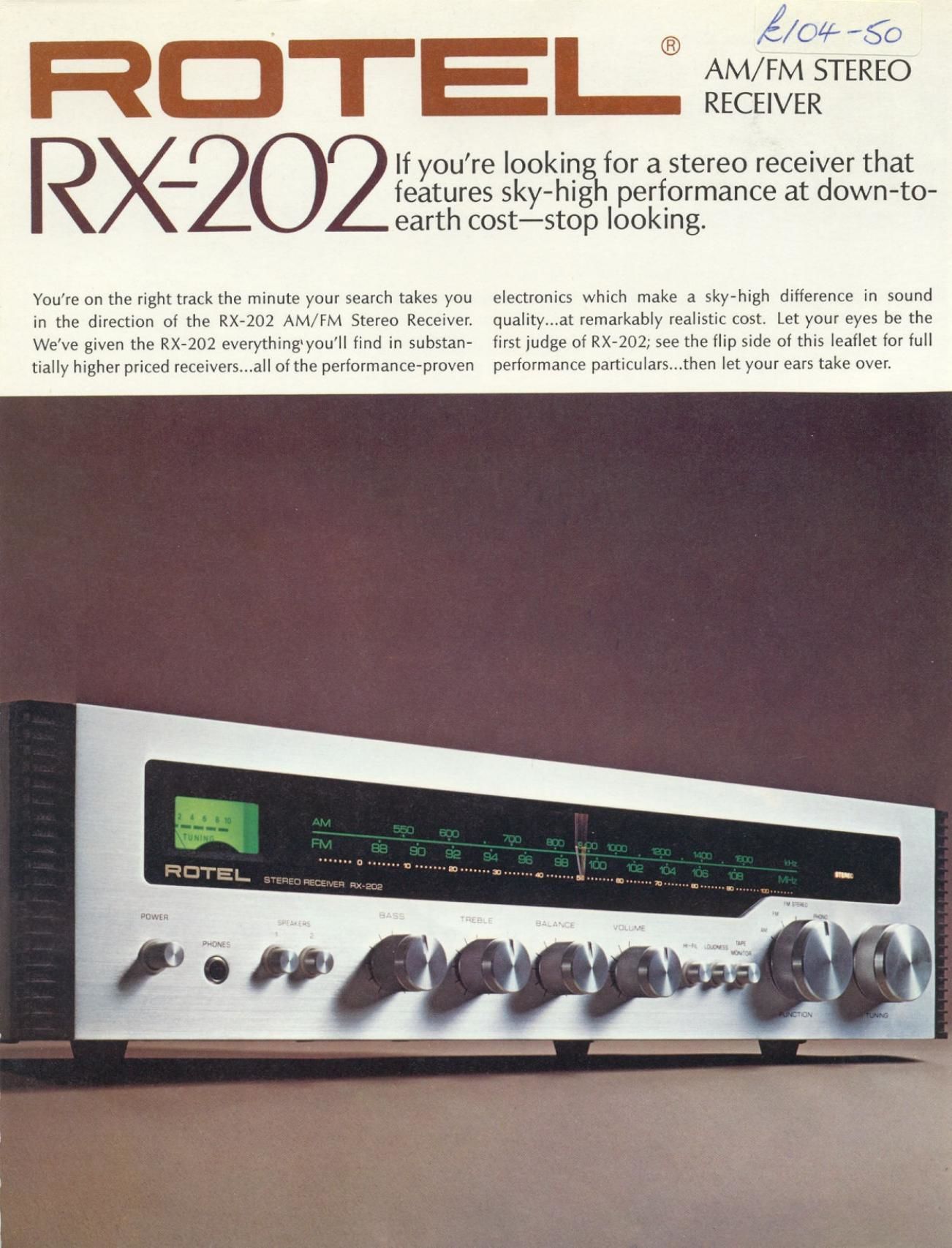

Page 1

AL: 5/ ,4,

R DTE L.
RECEIVER
If youre looking for a stereo receiver that
_' features sky-high performance at down-to-
earth cost-stop looking.

Youre on the right track the minute your search takes you
in the direction of the RX-202 AM/FM Stereo Receiver.
We've given the RX-202 everythingiyoull find in substan-
tially higher priced receivers...al| of the performance-proven

electronics which make a sky-high difference in sound
quality...at remarkably realistic cost. Let your eyes be the
first judge of RX-202; see the flip side of this leaflet for full
performance particulars...then let your ears take over.

Page 2

RECEIVER

A peak performance tuner . . . FM FET's in
the front end give ameliorated sensitivity and
low-distortion characteristics . . ceramic
filters and integrated circuitry in the FM IF
section mean your new RX-202 has long-
lasting reliability and exceptionally outstand-
ing selectivity advantages.

The HX-ZOZ .005 wide . . . More precisely,
that's 'wide' as far as the linear FM dial scale
is concerned. The extra width means easy,
precise tuning on the easy-to-see vernier scale.

The Fix-202 '06 large . . . The large tuning
knob and meter chalk up big advantages, too:
Smooth flywheel action and clear meter in-
dication. You tune right-on to the station you

Low-noise

Low-distortion power amp . . .
silicon transistors make up a large part of the
RX-202s advanced semi-complementary SEPP

circuitry. This means exceptional output
characteristics, lSW/lSW RMS continuous
power into 8 ohms at less than 1% THD both
channels driven.

NF equalizer amp . . . Here's another per-
formance payoff. A low-distortion 2-stage
direct-coupled NF (negative feedback) circuit
in the RX-202 achieves flawless RIAA charact-
eristics. Tone control circuitry also has the
same high-performance NF-type circuitry for
crisp, clear reproduction.

low for versatility . . . A whole slew of the

AM/ FM STEREO

Volume; bass; treble; balance; selector; loud-
ness; tape monitor: twin speaker switches for
operating two pair of speakers; rear panel
simulated 4-channel activation switch for
true-to-Iife surround sound (+channel stereo):
a higt filter that puts dampers on unwanted
high-frequency noises; and a durable power
switch.

Link up . . . here's everything to do it with
. . . Inputs for PHONO (magnetic and ceramic
cartridges); connection provision for TAPE:
AUX and TAPE MONITOR; outputs for
TAPE/AUX and TAPE MONITOR; terminals
for two pair of speakers; terminals for balanc-
ed 300-ohm and unbalanced 7S-ohm FM
antenna connection; AM ferrite loopstick
antenna built-in; front panel headphones jack
(right in front of you, you don't have to go
looking); and AC outlet.

Sky-high performance that's down-to-eerth
functional . . . RX-202 is not only great
performance inside, but great looks outside,
too: hair-line brushed extruded aluminum
front panel with snappy metal knobs. The
wooden cabinet has a decor-matching simulat-
ed walnut finish. Overall, it's lean compact
styling you'll be proud time and again to own.

want to hear in a flash. No fuss. No fumble. versatile COMFOIS and SWilChCS you need [0 Now do your cars a favor . . . listen to the

No fingering around. stay on top in solid sound eniovment: tax-202 in action.

SPECIFICATIONS

AMPLIFIER SECTION FM TUNER SECTION

Music Power Output (IHF) ...... 70 W (4 ohms) Frequency Range .......... 88 to 108 MHz

Continuous Power Output (RMS) . . 22 W/22 W (4 ohms) Sensitivity (IHF) .......... 2.9 microvolts

(each channel driven) l8 W/18 W (8 ohms) Signal-to-Noise Ratio ........ 65 dB

Continuous Power Output (RMS) . . I9 W/i9 W (4 ohms) Harmonic Distortion ........ 0.2 96

(both channels driven) 16 W/lé W (8 ohms) Selectivity .............. 40 dB i400 kHz
15 W/lS W (8 ohms, in the Capture Ratio ............ 3 dB
range of 50 to 20,000 Hz at less Stereo Separation .......... 35 dB at I kHz
than I %THD) IF Rejection .............. 70 dB

Harmonic Distortion ........ less than 0.2 96 (I 3 W/l3 W RMS) Image Rejection ............ 55 dB

IM Distortion ............ less than 0.5 % (I 3 W/l3 W RMS) Spurious Response Rejection . . . . 70 dB

Power Bandwidth (IHF) ...... 20 to 45,000 Hz (8 ohms) SCA Suppression .......... 60 dB

Frequency Response ........ 20 to 70,000 Hz 1:; dB AM Suppression ............ 54 d8

Damping Factor ............ 30 (8 ohms, 1 kHz

Input Sensitivity/Impedance . TAPE MONITER 110 mV/ AM TUNER SECT|ON
40 kohms Frequency Range .......... 525 to 1650 kHz
TAPE/AUX I 10 "IV/40 kOth Sensitivity .............. 20 microvolts
PHONO MAG 2 mv/45 kohms Selectivity .............. 25 dB 1:10 kHz
PHONO CER 130 my 00 kohms IF RBICCIIOH .............. 45 dB

Phono Overload ............ so mV (1 kHz) Image ReleclO" ---------- 50 3

Phono Equalization ......... :lAA S.T.D. $1.5 d8 GENERAL

Bass Control .............. 10 dB at 100 Hz .

Treble Control ............ 110 dB at 10 kHz 333:; Csonsumption """"" 5 W

pply ............ AC 120 V 60 Hz

Loudness Contour .......... +10 dB/IOO Hz, +5 (18/10 kHz Dimensions (overall) ________ 474IWI x 1 14W) x 267(0) mm

Crosstalk ................ 50 dB/lO kHz Weight (net) 6 kg/I 3 2 ")5

Hum and Noise (S/N) ........ PHONO 65 dB """"""" '

(continuous power output) TAPE 80 dB

Residual 0.5 mV

Speaker Impedance .......... 4 to I6ohms

Quality. Uncompromised.

ROLAND ELECTRONCSCQLTD. 1-36-8 Ohokayama, Meguroku, Tokyo, japan

Note: Features and specifications subject to change without prior notice.

Printed in japan 40550
