Rotel RX 200 OM

Extracted text from Rotel RX 200 OM (Ocr-read)

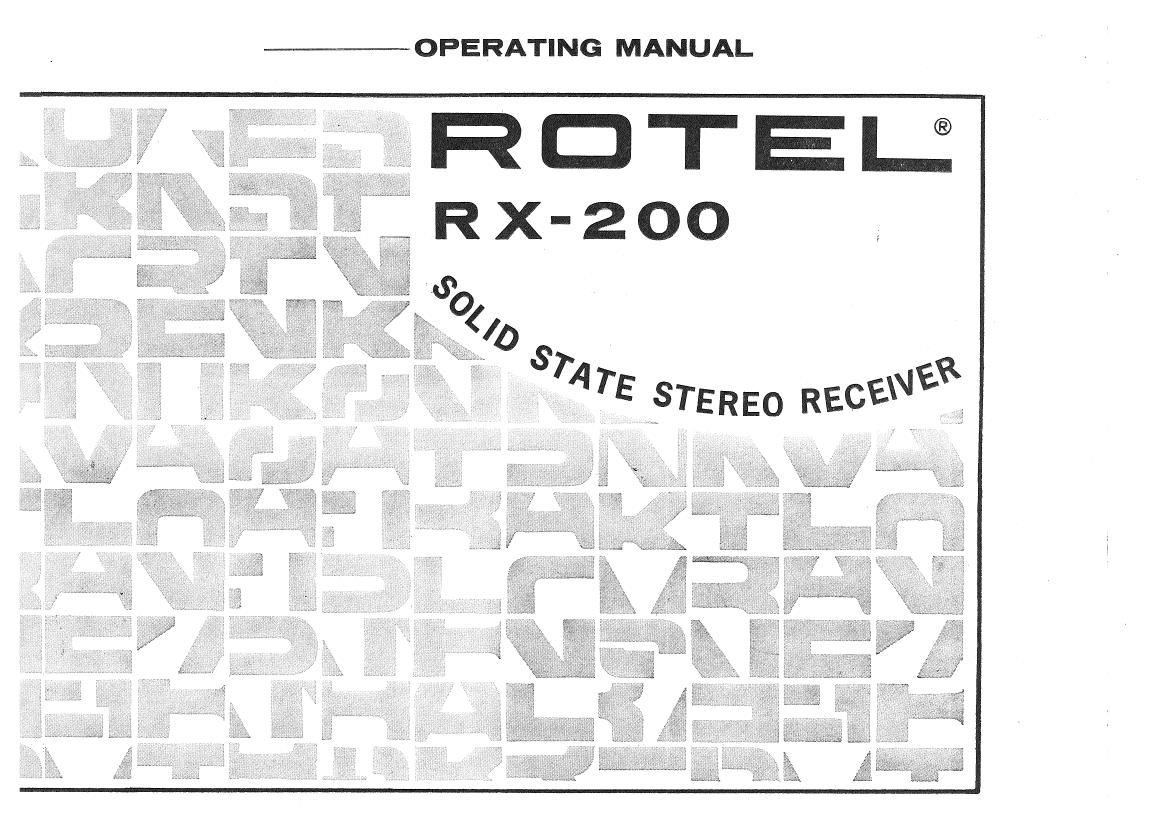

Page 1

OPERATING MANUAL

Page 2

INTRODUGTIDII

We would like to take this opportunity to thank you for purchasing
our RX-2OO Stereo Receiver. ln RX-ZOO you have the finest equipment
available in the Hi~Fi components field. With the quality workmanship
that goes into making the RX-ZOO, you can be assured of its flawless

performance for many years to come.

The RX-200 is equipped with every conceivable control and feature
any demanding audiophile ever hopes of having on his unit. The
RX-ZOO was designed for both the versatility and ease of operation.
It will add professional studio flexibility to your present music center.

The performance of RX-200 is exceptional; it will allow you to
experience true high fidelity as never before. Its full and natural
stereophonic reproduction offers you musical entertainment rivaling
We sincerely hope you will treasure this

that of live performances.

professional equipment.

In order to obtain the maximum use out of your unit, please
read all of the following pages of this Operation Manual carefully.

Do not attempt to operate the unit until you have made all the

connections as specified in this Manual.

SPEGIAL FEATURES

1)

2)

3)

4)

5)

6)

7)

8)

9)

10)

3-gang FET Front End Tuner.

All Silicon Output Transistors.

Loudness Switch for boosting extremely low frequencies during low

volume operation.

Tone Controls for Bass and Treble offer easy and accurate tone

adjustment.

Tape Monitor Switch for tape playback and recording.

Mode Switch for selection of stereophonic or monophonic opera»

tion.

Front Panel Stereo Headphone Jack for easy use.

inputs for two complete pairs of stereo speaker systems.

Illuminated Tuning Meter, Stereo Indicator Light.

Handsome Wood Cabinet.
