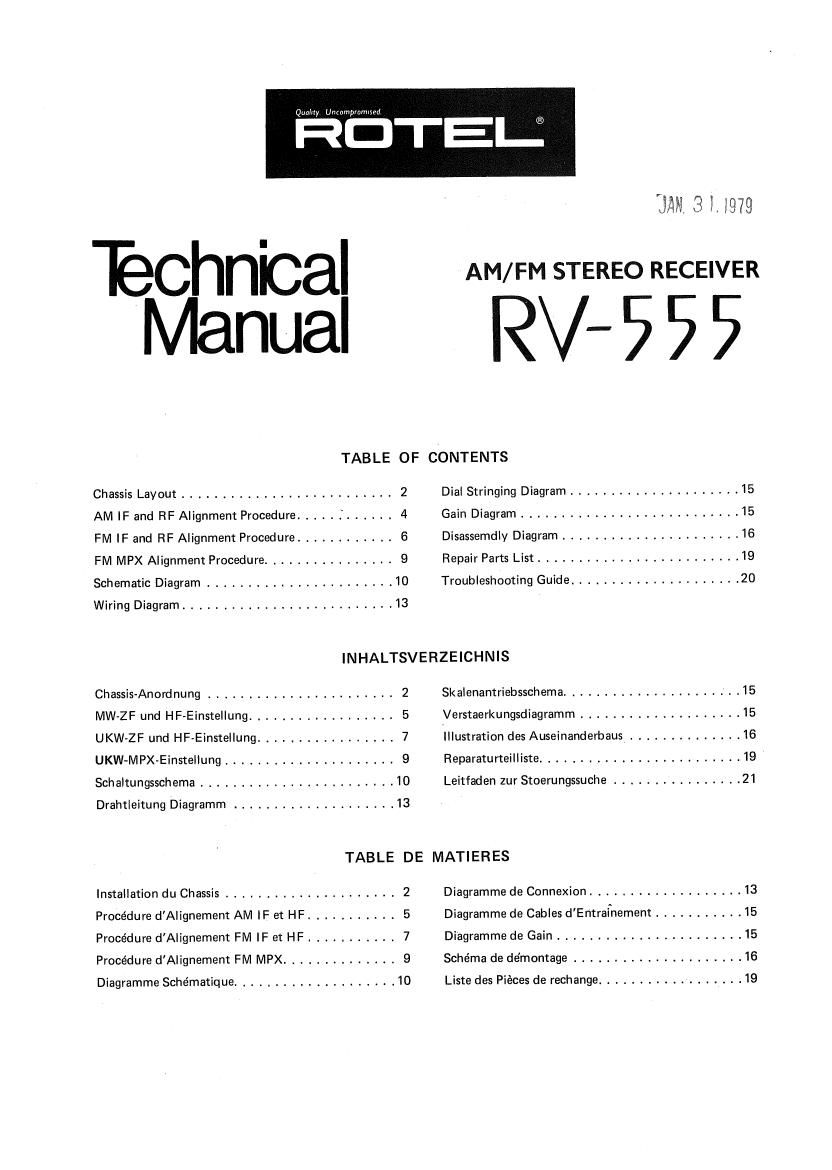

Qualuy Unmmpmmued
UTE
Technical
Manual
23AM 35,1979
AM/FM STEREO RECEIVER
RV-555
TABLE OF CONTENTS
Chassis Layout .......................... 2 Dial Stringing Diagram ..................... 15
AM IF and RF Alignment Procedure. . . . . f ...... 4 Gain Diagram ........................... 15
FM lF and RF Alignment Procedure ............ 6 Disassemdly Diagram ...................... 16
FM MPX Alignment Procedure ................ 9 Repair Parts List ......................... 19
Schematic Diagram ....................... 10 Troubleshooting Guide ..................... 20
Wiring Diagram .......................... 13
INHALTSVERZEICHNIS
ChassisAnord nung ....................... 2 Sk alenantriebsschema ...................... 15
MW-ZF und HF-Einstellung .................. 5 Verstaerkungsdiagramm .................... 15
UKW-ZF und HF-Einstellung ................. 7 Illlustration des Auseinanderbaus .............. 16
UKW-MPX-Einstellung ..................... 9 Reparaturteilliste ......................... 19
Schaltungsschema ........................ 10 Leitfaden zur Stoerungssuche ................ 21
Drahtleitung Diagramm .................... 13
TABLE DE MATIERES
Installation du Chassis ..................... 2
Procédure dAlignement AM 1F 81 HF ........... 5
Procedure dAlignement FM IF at HF ........... 7
Procédure dAIignement FM MPX .............. 9
Diagramme Schématique .................... 1O
Diagramme de Connexion ................... 13
Diagramme de Cables d'Entrainement ........... 15
Diagramme de Gain ....................... 15
Sche'ma de demomage ..................... 16
Liste des Piéces de rechange .................. 19
