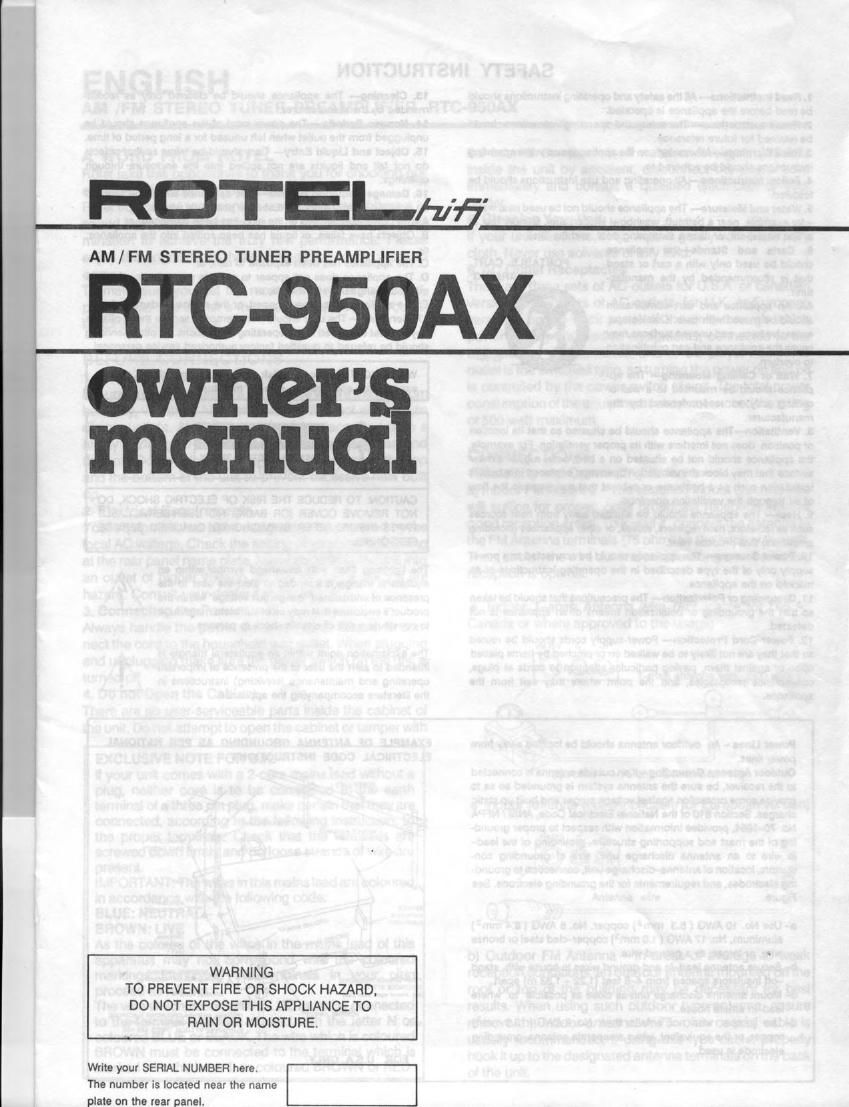

AM/FM STEREO TUNER PREAMPLIFIER

RTC-950AX

owner!
1 manna

WARNING
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE

Write your SERIAL NUMBER here,
The number is located near the name
plate on the rear panel,

Page 2

SAFETY INSTRUCTION

1. Read Inatructlone- All the salety and operating Instructions should
be read before the appliance is operated.

2. Retain lnetructione- The aaiety and operating instructions should
be retained tor future reference.

3. Heed Warnings-Ail wamlngs on the appliance and in the operating
instructions should be adhered to.

e. Follow Inetructione- All operating and use instructions should be
Ioilowed.

5. Water and Moisture- The appliance should not be used near water
- tor example. near a bathtub, washbowi kitchen sink. laundry tub. In
a wet basement. or near a swimming pool. and the like.

5. Carts and Stands-the appliance
should be used only with a cart or stand
that is rlcommended by the manulac-
turer.

6A. An appliance and cart combination
should be moved with care. Quick stops.
excessive iorce, and uneven suriacea may
cause the appliance and cart combination
to overturn. 53"
7. Wall or Cellllng Mounting- The ap-

pliance should be mounted to a wall or

cellling only as recommended by the

manuiacturer.

a. Ventilation-The appliance should be situated so that its location
or position does not interfere with Its proper ventilation. For example.
the appliance should not be situated on a bed. sols. rug. or similar
surface that may block the ventilation openings: or placed In a built-in
installation such as a bookcase or cabinet that may impede the flow
of air through the ventilation openings.

9. Heat- The appliance should be situated away irom heat sources
such as radiators. heat registers. stoves. or other appliances fincluding
amplliiers) that produce heat.

to. Power Sources- The appliance should be connected to a power
supply only of the type described in the operating instructions or as
marked on the appliance.

i1. Grounding or Poiarizatlon- The precautions that should be taken
so that the grounding or polarization means oi an appliance Is not
deleatedt

12. Power-Cord Protection- Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items placed
upon or against them. paying particular attention to cords at plugs.
convenience receptacles. and the point where thay exit from the
appliance.

PORTABLE CART
WARNING

13. CIeanlng- The appliance should be cleaned only as recom-
mended by the manuiacturer.

14. Nonuee Periode- The power cord of the appliance should be
unplugged irom the outlet when left unused tor a long period of time.
15. Oblect and Uquid Entry- Care should be taken so that objects
do not tell and liquids are not spilled into the enclosure through
openings,

16. Damage Requiring Service- The appliance should be serviced
by qualified rectory authorized service personnel when:

A The power-supply cord or the plug has been damaged; or

B. Objects have fallen. or liquid has been spilled into the appliance;
or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or

E. The appliance has been dropped. or the enclosure damaged.

17. Servicing- The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servicing
should be relarred to qualified lactory authorized service personnel.

WARNING: To reduce the risk at tire or electric shock. do not
expose this appliance to rain or moisture

6 IISK 0f ELECTRIC SHOCK
DI] IIIJT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (0R BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL

The lightning flash with arrowhead aymbol.withln an
equilateral triangle.is intended to alert the user to the
presence oi uninsulated 'dangerous voltage' within the
prod ucts enclosure that may be of suilicient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence at important
operating and maintenance (servicing) instructions In
the literature accompanying the appliance.

Power Unee- An outdoor antenna should be located away lrcm
power lines.

Outdoor Antenna Grounding - ii an outside antenna is connected
to the receiver. be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static
charges. Section 810 of the National Electrical Code. ANSI / NFPA
No. 70-1984. provides Information with respect to proper ground-
ing of the meet and supporting structure. grounding ol the lead-
in wire to an antenna discharge unit. size of grounding con-
ductors. location or antenna-discharge unit. connection to ground-
Ing electrodes. and requirements for the grounding electrode. See
Figure.

a- Use No. 10 AWG ( 5.3 mm?) copper, No. 8 AWG (8.4 mm)
aluminum. No. 17 AWG ( 1.0 mm?) copper-clad steel or bronze
wire. or larger. as a ground wire.

b- Sewre antenna lead-in and ground wires to house with stand
.011 Insulators spaced from 4-6 leet (1.22 -1.83 m) apart.

c- Mount antenna discharge unit as ciose as possible to where
lead-in enters house.

d- Use jumper wire not smaller than No. 6 AWG ( 13.3 mm)
copper. or the equivalent. when a separate antenna-grounding
electrode ls used.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE INSTRUCTIONS

/i

.. stem: (Mme

coucucvons

sumo"
Mummy

we.

aNVEm

SERVICE tuner wet:

5mm
souwmv

ANTENNA

w
steam svsrro
tlil near-u m .w on

men JWKI onion-t new Wham (Lscmoos
mu - rszr i: u at) me me EARTH

Ir accurate ev LOCK Doors 5:: use
sacrum user in

FOR USA. ONLY
