Rotel RTC 940AX OM

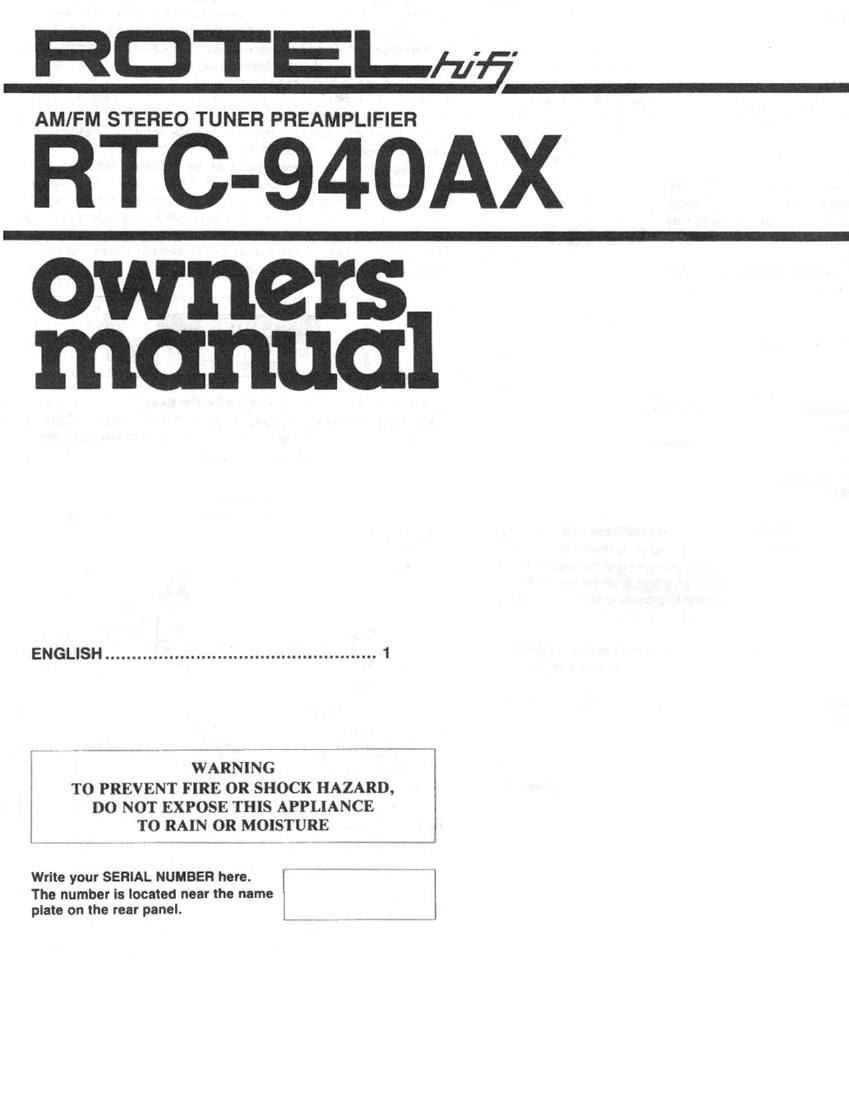

Page 1

HOTEL/1x5-

AM/FM STEREO TUNER PREAMPLIFIER

RTC-94OAX

owners
manual

ENGLISH ................................................... 1

WARNING
TO PREVENT FIRE 0R SHOCK HAZARD,

I DO NOT EXPOSE THIS APPLIANCE
TO RAIN 0R MOISTURE

erte your SERIAL NUMBER here. 7 '
The number Is located near the name
plate on the rear panel. L

Page 2

SAFETY INSTRUCTIONS

1. Read Instructions - All the salety and operating instructions should
be read belore the appliance is operated.

2. Retain Instructions - The safety and operating instructions should
be retained lor luture reference.

3. Heed Wamlnge - All warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be
lollowed.

5. Water and Moisture - The appliance should not be used near water
- lor example. near a bathtub. washbowl. kitchen sink. laundry tub. in
a wet basement. or near a smmming pool. and the like.

6. Carts and Stands - The appliance PORTABLE CART
should be used only With a cart or stand that WARNING

is recommended by the manutaciurer.
8A. An appliance and cart combination
should be moved with care. Quick stops.
excesswe lorce, and uneven surlaces may
cause the appliance and can combination
to overturn.

7. Wall or Ceiling Mounting - The
appliance should be mounted to a wall or
ceiling only as recommended by the
manulacturer.

8. Ventilation - The appliance should be Situated so that its location
or position does not intertere With its proper ventilation, For example. the
appliance should not be situated on a bed. sola. rug. or similar surlace
that may block the ventilation openings; or placed in a bum-in installation
such as a bookcase or cabinet that may impede the llow oi air through
the ventilation openings.

9. Heat - The appliance should be Situated away lrom heat sources
such as radiators, heat registers. stoves. or other appliances (including
amplitlers) that produce heat.

10. Power Sources - The appliance should be connected to a power
supply only of the type described in the operating instructions or as
marked on the appliance,

l1. Grounding or Polarization - The precautions that should be taken
so that the grounding or polarization means ol an appliance is not
deteated.

12. Power-Cord Protection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed upon
or against them. paying particular attention to cords at plugs. convenience
receptacles. and the paint where they exit lrom the appliance.

SJIZSA

13. Cleaning - The appliance should be cleaned only as recommended
by the rnanulacturer.

14. Nonuae Periods - The power cord at the appliance should be
unplugged Irom the outlet when leh unused lor a long period ol time.
15. Oblect and Liquid Entry - Care should be taken so that objects
do not tell and liquids are not spilled into the enclosure through openings.
16. Damage Requiring Service - The appliance should be serviced
by qualitied lactory authorized service personnel when: A. The power-
supply cord or the plug has been damaged: or

B. Obiects have fallen. or liquid has been spilled into the appliance: or
C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a
marked change in pertorrnance; or

E. The appliance has been dropped. or the enclosure damaged.

17. Servicing - The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servicing
should be relerred to qualitied tactory authorized service personnel.

WARNING: To reduce the risk at tire or electric shock. do not
expose this appliance to rain or molature

RISK OF ELECTRIC SHOCK
00 NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (0R BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

I Explanation of Graphical Symbols

The lightning Ilash with arrowhead symbol. within an
equtlateral triangle. is intended to alert the user to the
presence of uninsulated dangerous voltage" within the
product's enclosure that may be oi sullicient magnitude
to constitute a risk at electric shock to persons.

The exclamation point Within an equilateral triangle is
intended to alert the user to the presence at important
operating and maintenance (serVicmg) instructions in the
literature accompanying the appliance.

Power Lines - An outdoor antenna should be located away lrom pow-
er lines.

Outdoor Antenna Grounding - ll an outsule antenna is connect-
ed lo the receiver. be sure the antenna system is grounded so as to
prowde some protection against voltage surges and built up static
charges, Section 810 at the National Electrical Code. ANSI/NFPA No.
70-1984. prowdes information With respect to proper grounding ol
the mast and supporting structure. grounding ol the lead-in wire to
an antenna discharge unit. Size ol grounding conductors. location ol
antenna-discharge unit. connection to grounding electrodes. and re-
quirements lrorn the grounding electrode. See Figure.

a - Use No, 10 AWG (5.3 mm) copper. No. 8 AWG (34 mm) aluminum.
No. 17 AWG (1.0 mm) copper-clad steel or bronze Wire. at larger.
as a ground wire.

b- Secure antenna leadin and ground wires to house with stand-oil
insulators spaced lrcrn 4-6 leet (1.22 - 1.83 m) apart.

c- Mount antenna discharge unit as close as pos5ible to where lead-
in enters house.

d- Use iumper Wire not smaller than No. 6 AWG (13.3 mm) copper.
or the equivalent. when a separate antenna~grounding electrode
is used.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELEG
TRICAL CODE INSTRUCTIONS

SERVICE
/ ENTRANCE OONDUCTORS STANDOF F
P INSULATORS

MAST

ANTENNA

SERV'CE LEADJN wms

ENTRANCE
EQUIPMENT
ANTENNA

DISCHARGE UNIT

70 EXTERNAL ANTENNA
TERMINALS OF PRODUCT
GROUND WIRE '

GROUND CLAMPS

POWER SERVlCE GROUNDING

ELECTRODE sverM

(eg liiIOIlOI mini waet pipe)
BONDING JUMPER

OPT|ONAL ANTENNA GROUNDtNG ELECTRODE
DRIVEN 8 FEET (2. m) INTO THE EAFTN

IF REQUIRED BY LOCAL CODES SEE NEC
SECTION 510-21 (I)

52

FOR U.S.A. ONLY
