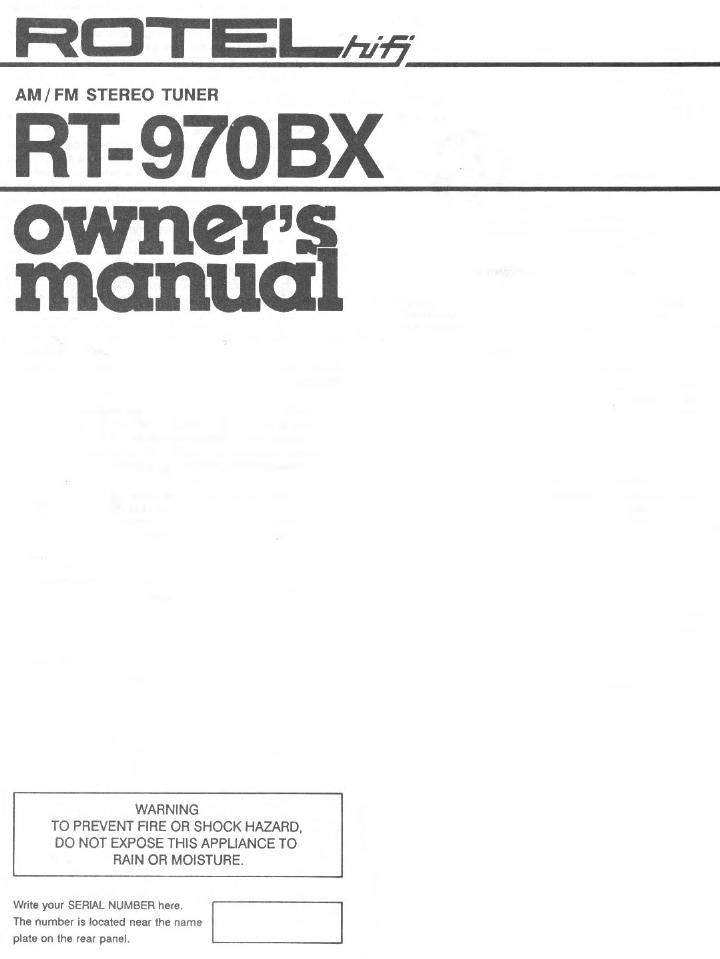

Rotel RT 970BX OM

Page 1

EDTEJ-ML

AM/FM STEREO TUNER

RT- 970 BX

owners
manna

WARNING
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

Write your SERIAL NUMBER here.
The number is located near the name
p|ate on the rear panel.

Page 2

SAFETY INSTRUCTION

1. Reed lnetructlone- All the safety and operating instructions should
be read betore the appliance ls operated.

2. Retain Instruction.- The safety and operating instructions should
be retained tor luture reterence.

3. Heed Warninge-All warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow lnetmctione- All operating and use instructions should be
iollowed.

5. Water and Moisture- Theappliance should not be used near water
- tor example. near I bathtub. washbowl kitchen sink. laundry tub. In
a wet basement. or near I swimming pool. and the like.

6. Carts and stands-the appliance
should be used only with I cart or stand
that is recommended by the manufac-
turer.

6A. An appliance and cart combination
should be moved with care. Quick stops.
excessive force. and uneven surfaces may
cause the appliance and cart combination
to ovenurn. 53?
7. Wall or Cellllng Mounting- The ap-

pliance should be mounted to a wall or

coilling only as recommended by the

manulacturer.

8. Ventilation-The appliance should be situated so that its location
or position does not lntertera with Its proper ventilation. For example.
the appliance should not be situated on I bed. sota, rug. or similar
surface that may block the ventilation openings: or placed in a built-in
installation such as I bookcase or cabinet that may impede the flow
ol air through the ventilation openings.

9. Heat- The appliance should be situated away lrom heat sources
such as radiators. heat registers. stoves, or other appliances (including
amplifiers) that produce heat.

to. Power Sourcee- The appliance should be connected to I power
supply only at the type described In the operating instructions or as
marked on the appliance.

t 1 . Grounding or Polerlntion- The precautions that should be taken
so that the grounding or polarization means of an appliance is not
deteated.

12. Power-Cord Protection- Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items placed
upon or against them. paying particular attention to cards at plugs.
convenience receptacles. and the point where they exit lrom the
appliance.

PORTABLE CART
WARNING

13. Cleaning- The appliance should be cleaned only as recom-
mended by the manulacturer.

1. Nehuee Pariode- The power cord 01 the appliance should be
unplugged lrom the outlet when ielt unused tor I long period of time.
15.0blectand Liquid Entry-Care shouldbetaitensothatobiects
do not tell and liquids are not spilled into the enclosure through
openings.

16. Damage Requiring Service- The appliance should be serviced
by qualified lactory authorized service personnel when:

A The power-supply cord or the plug has been damaged; or

B. Objects have (alien. or liquid has been spilled Into the appliance;
or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits I
marked change in performance; or

E. The appliance has been dropped. or the enclosure damaged.

17. Servicing- The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servicing
should be relerred to qualified lactory authorized service personnel.

WARNING: To reduce the risk or fire or electric ehoclr, do not
expose this appliance to rain or moisture

6 RISK or ELECTRIC SHOCK I
00 NOT OPEN e

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO
NOT FIEMOVE COVER (0R BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING T0 QUALIFIED SERVICE
PERSONNEL

equilateral lriangle.is intended to alert the user to the
presence of uninsulated 'dangerous voltage' within the
products enclosure that may be at sutficient magnitude
to constitute a risk at electric shock to persons.

The lightning flash with arrowhead symbol.within an .

intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in

The exclamation point within an equilateral triangle is j
the literature accompanying the appliance.

Power Unee - An outdoor antenna should be located away Irom
power lines.

Outdoor Antenna Grounding - it an outside antenna is connected
to the receiver. be sure the antenna system Is grounded so as to
provide some protection against voltage surges and built up static
charges. Section 810 ot the National Electrch Code. ANSI / NFPA
No. 70-1984. provides lnlormatlon with respect to proper ground-
lng at the mast and supporting structure. grounding ol the lead-
ln wire to an antenna discharge unit. size at grounding con-
ductors. location at antenna-discharge unit. connection to ground-
Ing electrodes. and requirements for the grounding electrode. See
Figure.

I- Uee No.10 AWG (5.3 mm?) copper. No. 8 AWG (8.4 mm)
aluminum. No. 17 AWG ( 1.0 mm) copper-clad steel or bronze
wire. or larger. as I ground wire.

b- SIcure antenna lead-In and ground wires to house with stand
-olt Insulators spaced Irom 4-6 leet (1.22 - 1.83 m) apart.

0- Mount antenna discharge unit as close as possible to where
lead-in enters house.

d- Use jumper wire not smaller than No. 6 AWG ( 13.3 mmz)
copper. or the equivalent, when a separate antenna-grounding
electrode is used.

EXAMPLE OF ANTENNA GROUNDINO AS PER NATIONAL
ELECTRICAL CODE INSTRUCTIONS

urcrm svma
leg m m u- an.

sacrum no:- in

FOR U.S.A. ONLY
