Rotel RT 950BX OM

Page 1

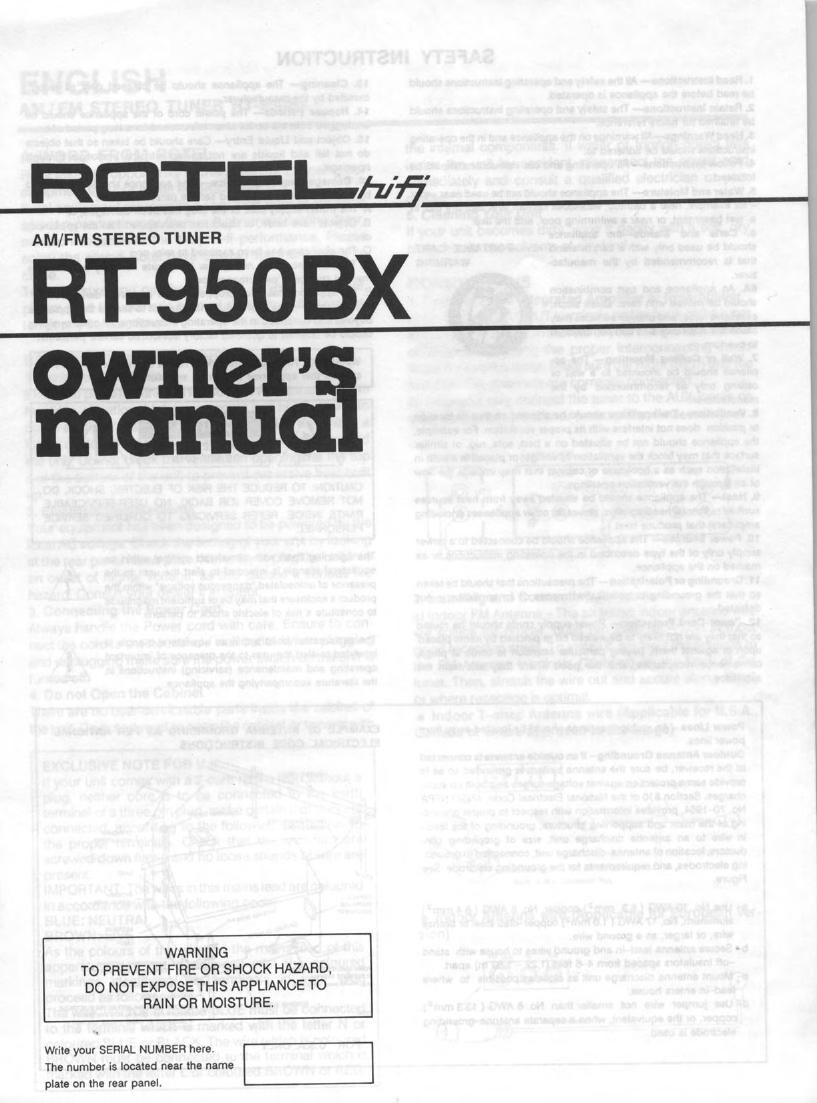

RDTEI-hffi;

AM/FM STEREO TUNER

RT-QSOBX

owner!
manna

WARNING
TO PREVENT FIRE 0R SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

Write your SERIAL NUMBER hers.
Tha number is located near the name
plate on the leaf panel.

Page 2

SAFETY INSTRUCTION

1. Read lnatructlone- All the saiety and operating instructions should
be read beiore the appliance is operated.

2. Retain lnstructlene- The saiety and operating instructions should
be retained ior iuture reierence.

3. Heed Warnings-All warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow Inatrucllone- All operating and use instructions should be
iollowed.

5. Water and Molature- The appliance should not be used near water
- ior example. near a bathtub. washbowl kitchen sink. laundry tub. in
a wet basement. or near a swimming pool. and the like.

6. Carts and Stands-the appliance
should be used only with a cart or stand
that is recommended by the manufac-
turer.

6A. An appliance and cart combination
should be moved with care. Quick stops.
excessive iorce. and uneven suriaces may
cause the appliance and cart combination
to overturn. 53"
1. Wall or CeIlling Mounting- The so

pliance should be mounted to a wall or

ceilling only as recommended by the

manuiacturer.

8. Ventilation-The appliance should be situated so that its location
or position does not interiere with its proper ventilation. For example.
the appliance should not be situated on a bed. soia. rug. or similar
suriace that may block the ventilation openings: or placed in a built-In
installation such as a bookcase or cabinet that may impede the flow
oi air through the ventilation openings.

9. Heat- The appliance should be situated away irom heat sources
such as radiators. heat registers. stoves. or other appliances (including
ampliilers) that produce heat.

10. Power Sourcee- The appliance should be connected to a power
supply only oi the type described in the operating instructions or as
marked on the appliance.

1t. Grounding or Polarization- The precautionsthat should be taken
so that the grounding or polarization means of an appliance is not
deleated.

12. Power-Cord Protection- Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items placed
upon or against them. paying particular attention to cords at plugs.
convenience receptacles. and the point where thay exit irom the
appliance.

PORTABLE CART
WARNING

13. Cleaning- The appliance should be cleaned only as recom-
mended by the manutacturer.

14. Nonuse Perlode- The power cord oi the appliance should be
unplugged irom the outlet when Ieit unused ior a long period of time.
15. Obiect and Uquld Entry- Care should be taken so that objects
do not tell and liquids are not spilled into the enclosure through
openings.

16. Damage Requiring Service- The appliance should be serviced
by qualified iactory authorized service personnel when:

A The power-supply cord or the plug has been damaged: or

B. Objects have iallen. or liquid has been spilled into the appliance;
or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a
marked change in periormance; or

E. The appliance has been dropped. or the enclosure damaged.

17. Servicing- The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servicing
should be reterred to qualified iactory authorlled service personnel.

WARNING: To reduce the risk of tire or electric stock, do not
expose this appliance to rain or moisture

& IISK (If ELECTRIC SHOCK '
DD NUT OPEN 0

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL

The lightning ilash with arrowhead symboi.within an
equilateral triangle,is intended to alert the user to the
presence oi uninsulated 'dangerous voltage' within the
product's enclosure that may be oi suiiicient magnitude
to constitute a risk oi electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence oi important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Power Unee - An outdoor antenna should be located away irom
power lines.

Outdoor Antenna Grounding - li an outside antenna is connected
to the receiver. be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static
charges. Section 810 oi the National Electrical Code. ANSI / NFPA
No. 70-1984. provides iniormatlon with respect to proper ground-
ing oi the mast and supporting structure. grounding oi the lead-
in wire to an antenna discharge unit. size oi grounding con-
ductors. location oi antenna-discharge unit. connection to ground-
ing electrodes. and requirements tor the grounding electrode. See
figure.

a- Use No. 10 AWG ( 5.3 mm?) copper, No. 8 AWG (8.4 mm)
aluminum. No. 17 AWG ( 1.0 mmz) copper-clad steel or bronze
wire. or larger. as a ground wire.

b- Secure antenna lead-in and ground wires to house with stand
-oi1 insulators spaced from 4-6 ieet (1.22 - 1.83 m) apart.

o- Mount antenna discharge unit as close as possible to where
lead-in enters house.

a- Use jumper wire not smaller than No. 6 awe ( 13.3 mm?)
copper. or the equivalent. when a separate antenna-grounding
electrode is used.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL
ELECTRICAL CODE INSTRUCTIONS

armour
Instrumen-

my

mum
LW MIE

mmmmwm
w- mumsrzum-«omm
'molvkoalml seem:
sscnoutrwn

FOR U.S.A. ONLY
