Rotel RT 322 Brochure

Extracted text from Rotel RT 322 Brochure (Ocr-read)

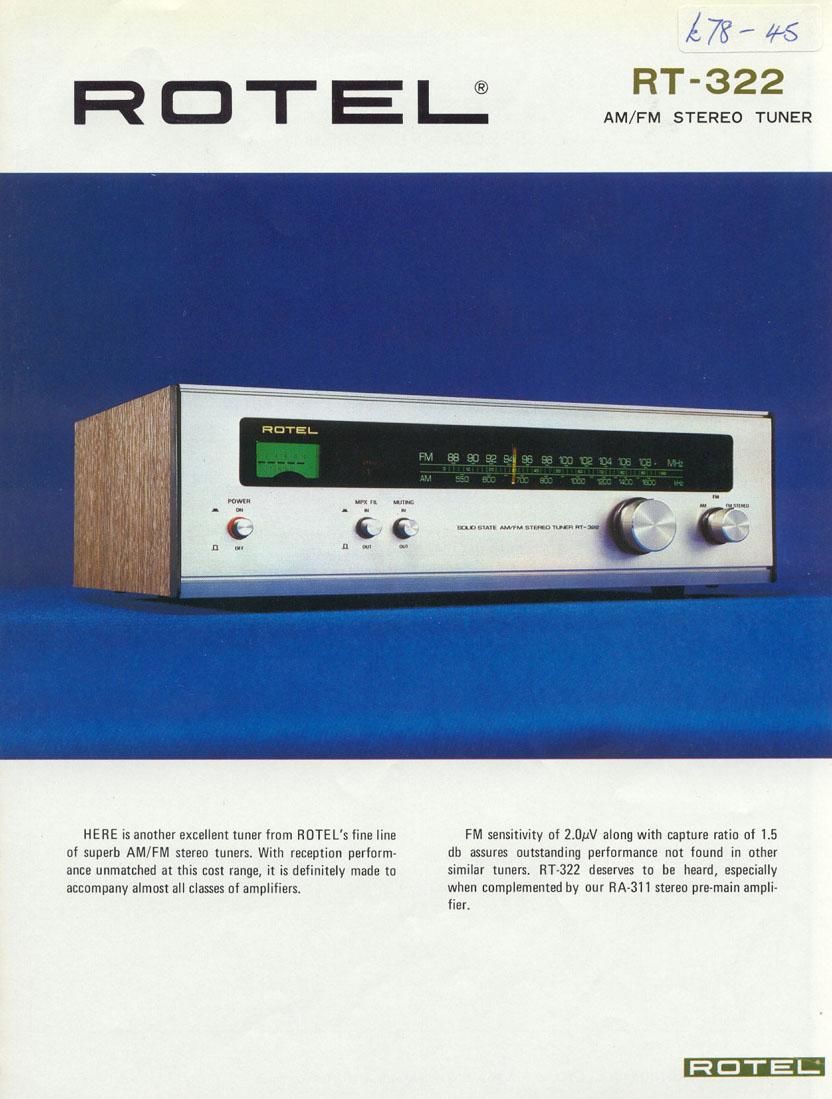

Page 1

A 75" , #5

a RT-322
R D T E L AM/FM STEREO TUNER

HERE IS anothm excellent tuner lvmn RUTEI 's hm: hm: FM sensnlwty al 2.0;.1V along wnh capture [arm ol l.S
of superb AMJFM stereo tuners. th nutunlmn pmlunn (ll) assulcs autstandmg perlarmance not found In other
uncc unmatched at 1le cost range, It is definitely made In sunllar tuners, RT»322 deserves to he heanl, especwlly
accumpany almost all classes ol amplifiers. when complemented by uur RA~311 stereo pro~main amplr

lnzL

HOTEL;

Page 2

FM

RT-322

SPECIAL FEATURES

' Wood cabinet included

Sensitive FET frontend for precise reception

Four-stage IF circuit for efficient selectivity

All advanced solid state electronics design

Handsomely trimmed aluminum extrusion panel

Convenient muting pushbutton switch to eliminate interstation noise
Effective multiplex filter to suppress stereo noise

Illuminated dial scale and large easy-to-see tuning meter

Linear and wide dial scale for easy tuning

SPECIFICATIONS
Sensrtivitv IIHFI ................... 2.0flV AM Sensitivity IIHFI ................... ZOOflV/m
Frequency Range ................. 88 - l08 MHz Frequency Range ................. 535 - 1605 kHz
Harmonic Distortion ........ less than 0.5% Image Rejection ........... 50 db at 1 MHz
Signal to Noise Ratio ....... 65 db IF Rejection ....... 50 db at 1 MHz
Capture Ratio ....................... 1.5 db Signal to Noise Ratio ............. 50 db
Selectivity .......................... 50 db Selectivity ........................... 30 db

Stereo Separation ............. 40 do at l kHz
Image Repeation ............. 60 db
IF Rejection ....................... 80 db
Spurious Response RejectIOn 80 db

DIMENSIONS V..l4"lWI x 7~1/2"(Dl x 471/2"lH)

WEIGHT ...................................... 8.8 lbs/4 kg

Nola.

ROLAND ELECTRONICS 60., LTD.

Features and specifications subject to change without notice.

136-8, Ohkayama. Meguro-ku, Tokyo, Japan
