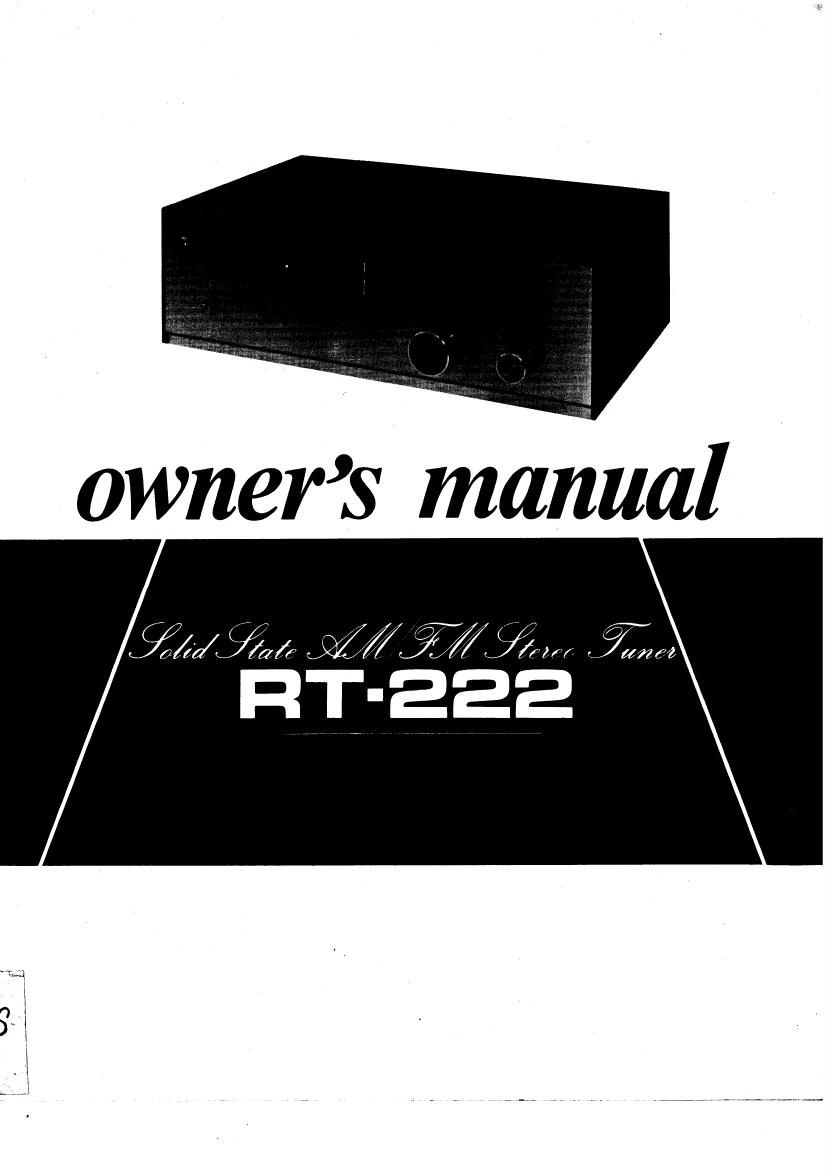

Rotel RT 222 OM

Page 1

owners manual

O
J.

Page 2

INTRODUCTION

We would like to take this opportunity to thank you for
purchasing our Stereo Tuner. With the high quality design
and workmanship that goes into making this equipment, entertainment approaching that of live performances. We
you can be assured of its flawless performance for many sincerely hope you will treasure this professional
years to come. equipment. In order to obtain the maximum use out of
We have fitted every control and feature you could your unit, please read the following pages of this Owner's
conceivably need. Designed for both versatility and ease Manual carefully.

of operation, this piece of equipment will add professional Do not attempt to operate the unit until you have made
studio flexibility to your Hi-Fi sound center. The all the necessary connections.

performance is exceptional; it will allow you to ex-

perience true high fidelity as never before. its full and
natural stereophonic reproduction offers you musical

TABLE OF CONTENTS

INTRODUCTION ............................... .1
FRONT PANEL CONTROLS 2
REAR PANEL CONNECTIONS """" 3
INSTALLATION ............................. .4
INSTRUCTION FOR CONNECTION " 4
OPERATION ................................... ..5
INSTRUCTION FOR USAGE '5
SPECIFICATIONS ........................ .5

TUNING METER

This tuning meter is used to indi-
cate if the tuner has tuned in to
broadcasts. The tuning knob is
turned until the pointer shows
maximum deflection to the right.

FRONT PANEL CONTROLS

FM STEREO INDICATOR

The indicator lamp lights up auto-
matically when the tuner receives
an FM stereo program. The lamp
turns off automatically when the
broadcast is switched over to a
monaural operation.

POWER SWITCH

The button is pressed to switch on
the tuner. Another push turns off
the tuner.

:mu

TUNING KNOB

This knob is turned to tune in the
desired AM or FM broadcasting
station.

DIAL SCALE

The upper scale is for FM broadcast
(88-108 MHz), the lower for AM
broadcast (SSS-1,605 KHz).

SELECTOR SWITCH

This switch is set to position AM
for reception of AM broadcasts
and to position FM for FM
broadcasts. With the selector
switch set to position FM STEREO,
FM monaural/stereo switchover
takes place automatically and the
stereo indicator lamp indicates
reception of stereo programs.
