Rotel RT 1220 Brochure

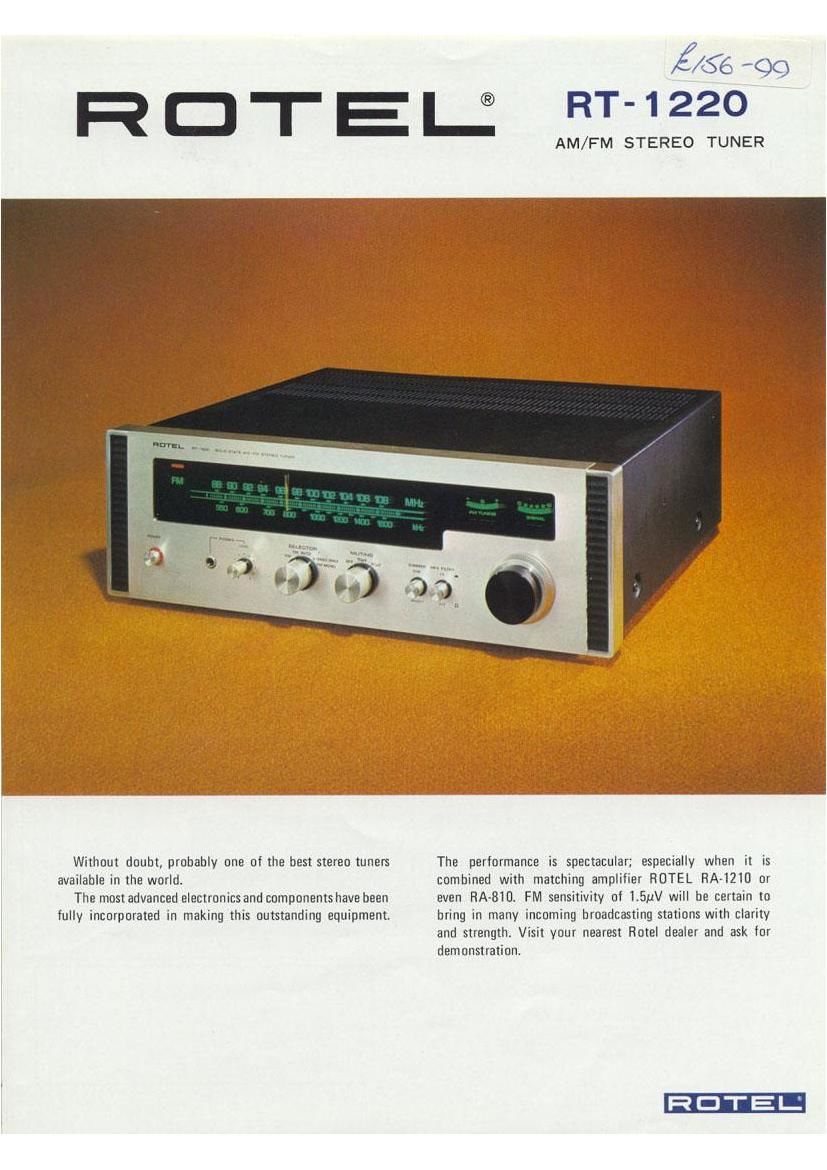

Page 1

[/56 00

RDTEH RT-1220

AM/FM STEREO TUNER

Without doubt, probably one of the best stereo tuners The performance is spectacular; especially when it is
available in the world. combined with matching amplilier HOTEL RA-lZlO or
The most advanced electronicsand components have been even RA-810. FM sensitivity at 1.5pV will be certain to
fully incorporated in making this outstanding equipment. bring in many incoming broadcasting stations wrtlt clarity

and strength. Visit your nearest Hotel dealer and ask lor
demonstration.

HOTEL

Page 2

RT-1220

SPECIAL FEATURES

* Advanced Solid State Design.

i Supersensitive MOS FET Front End Tuner.

* Integrated Circuits [IC) for FM IF and MPX sections.

* Ceramic Filters in FM and AM IF sections for excellent selectivity.

t The RF Stage in AM IF Section.

i Illuminated Dial Board with Extra Wide Linear Dial Scale for attractive and easy tuning.

1' Illuminated Signal Strength Tuning Meter and FM Center Tuning Meter.

1'! Illuminated Dial Pointer and Stereo Indicator.

* Smooth and Balanced Flywheel Counter-action for easy and precise tuning by Large Tuning Knob.

t Headphone Jack with Volume Level Control.

* Rotary FM Muting Control with three settings.

it Rotary Function Selector with a special selection to receive FM Stereo Only.

at Push Buttons: MPX Filter, Dimmer to brighten or darken the dial, and durable Power Switch.

it Rear Panel Output Variable Control.

* Convenient AC Outlet (maximum 200 watts).

* Facility for 300-ohm balanced and 75-ohm unbalanced FM Antenna.

* Rear Panel AM Ferrite Bar Loopstick Antenna. Also, Terminal Post for external AM Antenna

connection.
SPECIFICATIONS

FM Sensitivity (Il'il ...... .. . I.'w;lV AM Sumllivity IIIIF'I IfipV
I' remnant v Range . ............. ER 7 108 I'.H.I Freon-Nu y Ham}: , , , a. {I i.\ 7 I605 HI;
Harmonu liistortlrm , . . ,. ".55 than 03'; J liiuaqe Reva lion , 75 db (II I MH/
Signal to Now Hutu) . 70th ll l-rvwv [lun , , , . 7511hdIIMH.
Capture Ratio ...... . . . .. IOrllt» Sqmil to \OISL' Piano ,, . . {>(Jtlli
Selr-rlmty . ., ,, ... . Olin Sella twity _ ., , . dOIIIi
Stereo Sermrdlion ......... . 40 ill) at I i H-
hum]; Rciei'tmn .. ..... . .. 1min. Liv-.irNSIUNs ., it; If?" IW) I I?" (1)) x 5 1x2" iHl
IF Rum tion IIOIJIJ
Spurious; Risluuw Run-i tum III) ilii WI Il'illi . ,. 17 NH kg

NOTE: Fearum and spear-cations subgecr to change Without notice.
ROLAND ELECTRONICS CO., LTD.
1-368, Ohokayama, Meguro ku, Tokyo, Japan,
