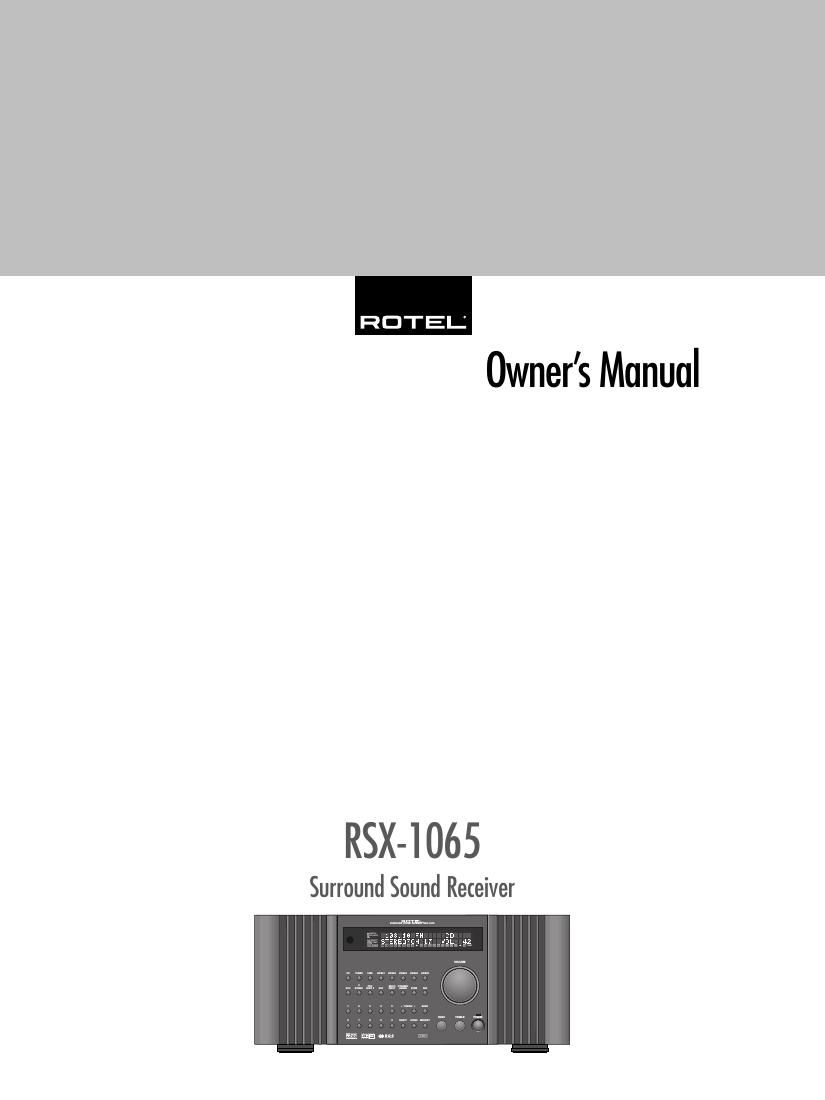

Rotel RSX 1065 OM
This is the 31 pages manual for Rotel RSX 1065 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RSX 1065 OM (Ocr-read)
Page 1
2 RSX-1065 Surround Sound Receiver Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately dis- connect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabi- net, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 115 V/60Hz, EC: 230V/50Hz) Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not defeat grounding and/or polarization provisions. The cable should be connected to a 2-pin polarized wall outlet, matching the wide blade of the plug to the wide slot of the receptacle. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent, ex- posed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or ser- viced by a qualified service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any way NOTE TO CATV SYSTEM INSTALLER: Call the CATV system or antenna installers attention to Article 820-40 of the NEC. This provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. See installation diagram. NOTE: This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates and can radiate ra- dio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio or TV communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, try to cor- rect the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the unit and the television tuner. - Connect the unit to an AC power outlet on a different electrical circuit. - Consult your authorized Rotel retailer for assistance.
Page 2
3 1: Controls and Connections Y C R CB REAR R CB 2 FRONT R SUB 2 CENTER 2 2VIDEO IN TAPE 1 4 3 5 IN CD OUT 2 L R VIDEO OUT DIGITAL INPUT COAXIAL OPTICAL 12OPTICALDIGITAL OUTPUT 1 3 2COMPOSITE IN 1435 2COMPOSITE OUT 132 S-VIDEO IN 1435 S-VIDEO OUT ZONE 2 OUT ZONE REM KEYPAD COMPUTER I/O IR OUT 1 2 EXT REM12V TRIG OUT 2 13 MON OUT CENTER SUB REAR LCB FRONT L REAR R FRONT R L R 2 13COAXIAL MULTI CH INPUT ANTENNA 2 1 COMPONENT VIDEO MON OUT AM LOOP IN 1 2 12345 6 7 8 9 0 MEMORYDIRECTBAND TUNING MONO CD TUNER TAPE VIDEO1 VIDEO2 VIDEO3 VIDEO4 VIDEO5 2CH3 STEREOPRO LOGIC II DSPMULTI INPUTDYNAMIC RANGE RECZONE SURROUND SOUND RECEIVER RSX-1065 POWER VOLUME BASS TREBLE OPT COAX DIGITALPRO LOGICdtsRDS ZONEPRESET TUNED DSP 1 2 3 4 5 A 5.1 7.1 FL C FR SL SR SWSblSbrSb ST CENTER SPEAKERS SURROUNDRIGHT FRONT FRONTLEFT SURROUND MON OUT REAR L SUB 1 CENTER 1 CB1 FRONT L PREOUT SOFTWARE UPGRADABLE SPEAKER IMPEDANCE 4 OHMS MINIMUM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboraties Licensing Corporation. Confidential unpublished works © 1992-1997 Dolby Laboraties, Inc. All rights reserved. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR WARNING: SHOCK HAZARD DO NOT OPEN SURROUND SOUND RECEIVER MODEL NO. RSX-1065 POWER CONSUMPTION: 500 WATTS RSX-1065 SWITCHED 200W MAX (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured under license from Digital Theater System, Inc. US Pat. No. 5,451,242 and other world-wide patents, issues and pending. "DTS", DTS Digital surround", are trademarks of Digital Theater System, Inc. All rights reserved. HDCD ® , High Definition Compatible Digital ® and Pacific Microsonics™ are either registered trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries. HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following: In the USA: 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,864,311, 5,872,531, and in Australia: 669114. Other patents pending. 5 13 14 15 18 16 17 19 20 6 7 8 10 12 119 11 4 3 2 1 42 44 46 37 40 36 24 25 32 33 34 29 35 27 45 26 22 21 23 28 30 31 38 41 43 39
