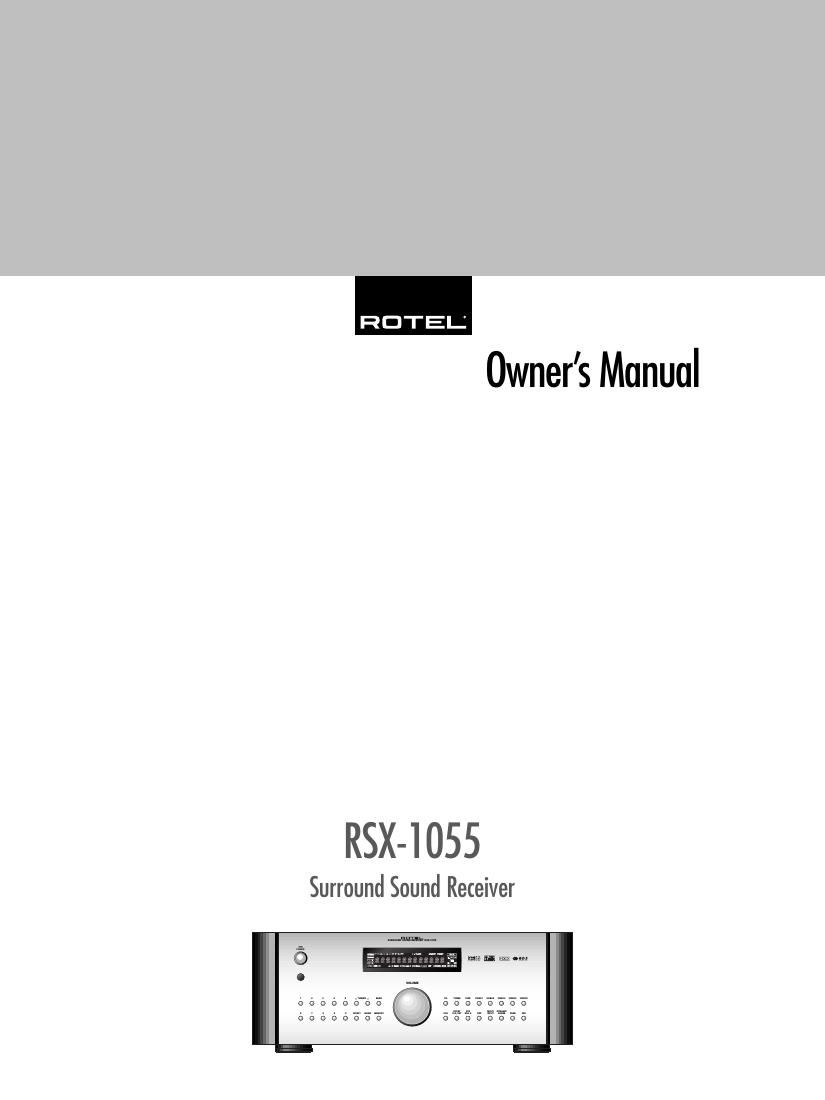

Rotel RSX 1055 OM
This is the 36 pages manual for Rotel RSX 1055 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RSX 1055 OM (Ocr-read)
Page 1
Notice The COMPUTER I/O connection should be handled by authorized person only. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi- ate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a par- ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tr y to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.(TV, radio, etc.) - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for additional help. Caution This device complies with part 15 of the FCC Rules operation is subject to the following to conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 2
Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately dis- connect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabi- net, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 115 V/60Hz, EC: 230V/50Hz) Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not defeat grounding and/or polarization provisions. The cable should be connected to a 2-pin polarized wall outlet, matching the wide blade of the plug to the wide slot of the receptacle. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent, ex- posed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or ser- viced by a qualified service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any wayNOTE TO CATV SYSTEM INSTALLER: Call the CATV system or antenna installers attention to Article 820-40 of the NEC. This provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. See installation diagram. NOTE: This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates and can radiate ra- dio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio or TV communications. There is no guarantee that interference will not occur in a particular instal- lation. If this equipment does cause interference to radio or television re- ception, which can be determined by turning the equipment off and on, tr y to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the unit and the television tuner. - Connect the unit to an AC power outlet on a different electrical circuit. - Consult your authorized Rotel retailer for assistance.
Page 33
34 To save USER DEFAULT settings: Many of the current configuration settings can be stored as a USER DEFAULT, which can be activated at any time from this menu screen. To save the current settings as a USER DEFAULT, place the highlight on the USER DEFAULT SET line using the UP/DOWN buttons and use the +/– buttons to change the setting to YES. The screen will change to a confirmation screen. Press the ENTER button to store the new USER DEFAULT settings. To return to the MAIN menu without saving any changes, change all en- tries on the screen to NO and press the EN- TER button. NOTE : If there is insufficient memory to store a USER DEFAULT configuration file, the USER DEFAULT SET option will not be available. To activate memorized USER DEFAULT settings: After you have stored a USER DE- FAULT configuration file, you can activate those settings at any time by placing the highlight on the USER DEFAULT line using the UP/ DOWN buttons. Use the +/– buttons to change the setting to YES. The screen will change to a confirmation screen. Press the ENTER but- ton to proceed with activating the USER DE- FAULT settings. To return to the MAIN menu without activating the USER DEFAULT settings, change the entr y to NO and press the EN- TER button. ZONE 2 SETUP Menu ZONE2 SETUP SOURCE: CD VOLUME SETUP: Variable VOLUME: 20 ENT KEY=MAIN MENU UP KEY=up +/– KEY=change DWN KEY=down The ZONE 2 SETUP menu provides settings and configuration options related to the op- eration of Zone 2. This menu is reached by highlighting the ZONE 2 line on the MAIN menu and pressing ENTER. SOURCE: the source selected for listening in Zone 2. Selecting the OFF option turns Zone 2 off. VOLUME SETUP: configures the Zone 2 outputs for VARIABLE or FIXED volume levels. VARIABLE allows control of the volume settings in Zone 2 from the RSX-1055 front-panel or from a remote control/IR repeater in Zone 2. FIXED output disables the Zone 2 volume control. In this mode, the Zone 2 level can be fixed at the level specified on the next line, thus optimizing system performance when send- ing a fixed level signal to a preamp or ampli- fier with its own volume adjustment. VOLUME: In VARIABLE output mode, this line shows the current volume setting for Zone 2. In FIXED output mode, this volume setting es- tablishes a permanent fixed output level for Zone 2. Move the highlight to the desired line using the UP/DOWN buttons and use the +/– but- tons to adjust the volume level. To return to the MAIN menu, press the ENTER button. Press the MENU key on the remote to cancel the display and return to normal operation. RSX-1055 Surround Sound Receiver
Page 35
The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 USA Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH England Phone: +44 (0)1903 221600 Fax: +44 (0)1903 221525 Rotel Deutschland Kleine Heide 12 D-33790 Halle/Westf. Germany Phone: +49 05201-87170 Fax: +49 05201-73370 www.rotel.com 082 OM-RSX-1055 English 080702
