Rotel RSP 1570 OM

Page 1

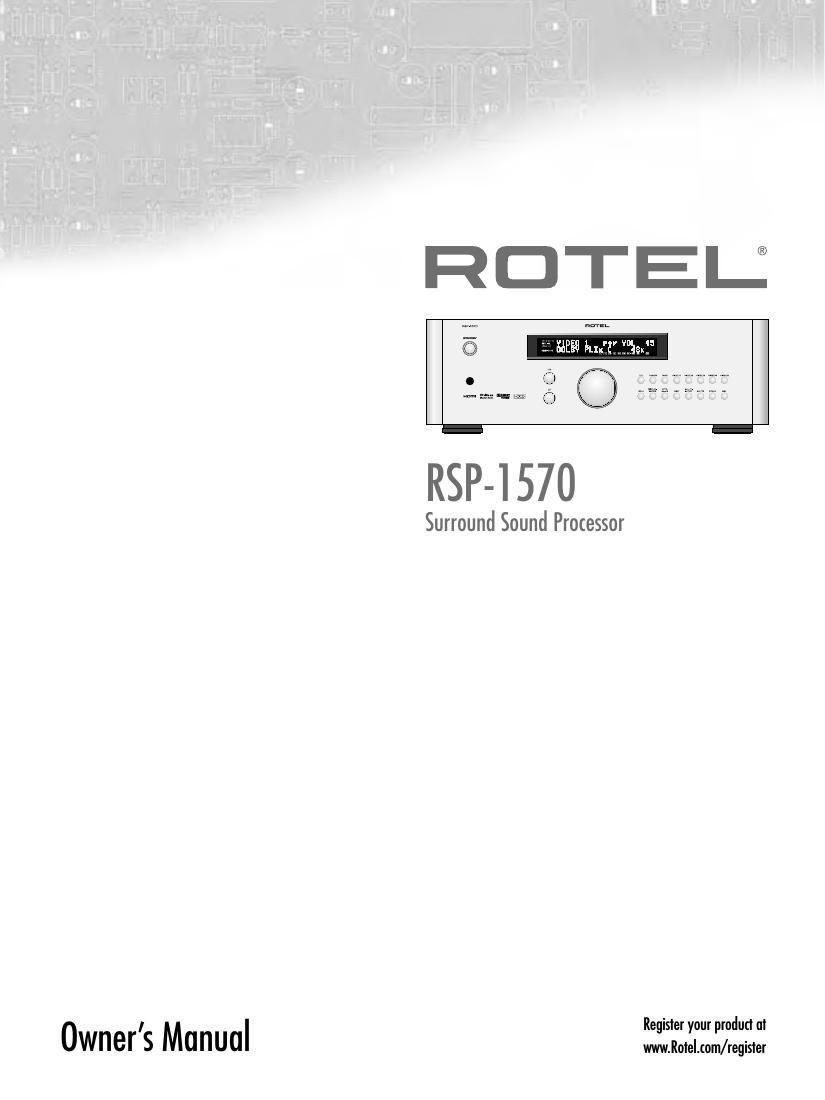

RSP-1570

Surround Sound Processor

Register your product at

owners MO I'IUOI www.Rote|.com/ register

Page 2

f V
CAUTION
A
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. J

W W

This symbol is to alert the user to the
presence of uninsulated dangerous
voltages inside the product's enclosure
that may constitute a risk of electric shock.

This symbol is to alert the user to important
operating and maintenance (service)

instructions in this manual and literature
accompanying the product. )

APPLICABLE FOR USA, CANADA OR WHERE
APPROVED FOR THE USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT. INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU AU FOND.

This Class B digital apparatus complies with
Canadian ICES-003.

Cet appareil numérique de la classe B est
conforme a la norme NMB-003 du Canada.

Rotel products are designed to comply with international
directives on the Restriction of Hazardous Substances
(RoHSl in electrical and electronic equipment and the
disposal of Waste Electrical and Electronic Equipment
(WEEE). The crossed wheelie bin symbol indicates

/ compliance and that the products must be appropriately

\

recycIed or processed in accordance with these directives.

This symbol means that this unit is double insulated. An
earth or ground connection is not required.

RSP-I 570 Surround Sound Processor

>IOcm

>Ain

.« >iOcm

>Ain

ANTENNA GROUNDING ACCORDING TO
NATIONAL ELECTRICAL CODE INSTRUCTIONS
ARTICLE 810: "RADIO AND TELEVISION EOUIPMENT"

ANTENNA LEAD IN WIRE I!
GROUND CLAMP |\

GROUNDING U
CONDUCTORS
(NEC SECTION 810-20) I
v
.
ELECTICAL
SERVICE I
BOX
- TENNA DISCHARGE UNIT
(NEC SECTION 310-20)

\

GROUND CLAMPS

(- POWER SERVICE GROUNDING
ELECTRODE SVSTEM
INEC ARTICLE 250, PART H)
