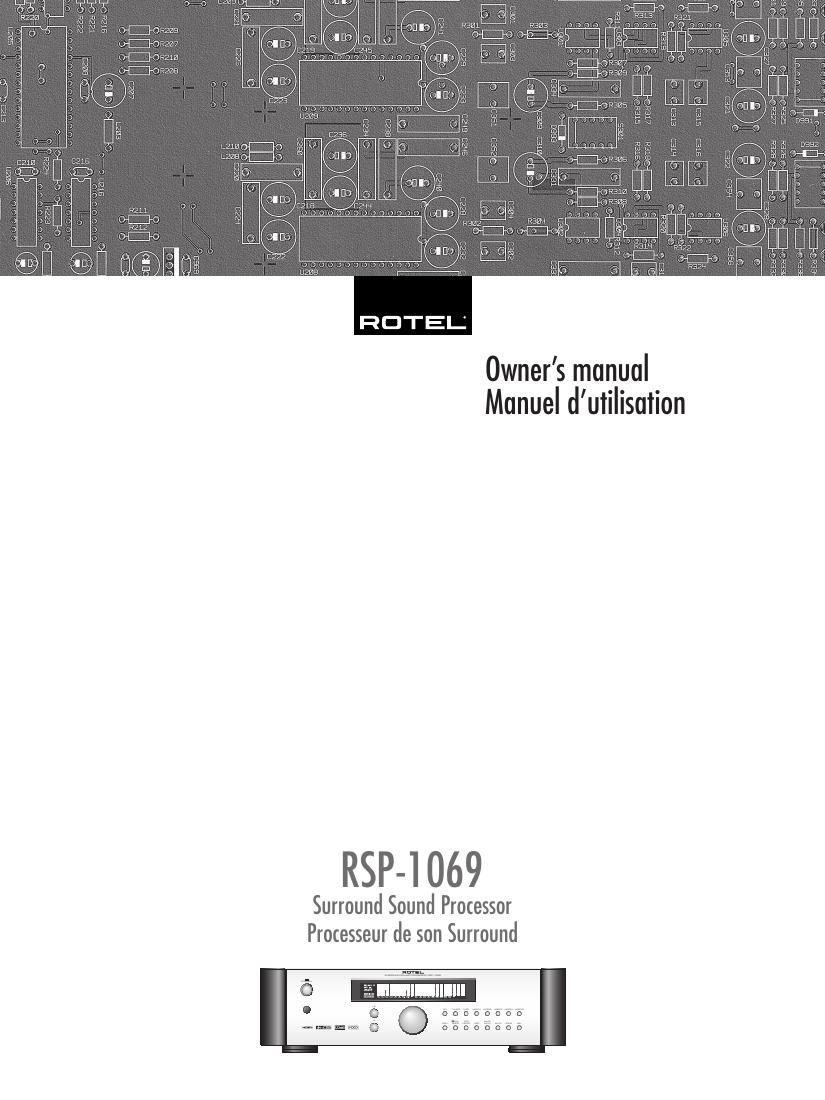

Rotel RSP 1069 OM
This is the 92 pages manual for Rotel RSP 1069 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RSP 1069 OM (Ocr-read)
Page 1
2 RSP-1069 Surround Sound Processor 2CHDTSNEO 6DSPMULTIINPUT MUTESELZONE CD LFHF TUNERTAPE SURROUND SOUND PROCESSOR RSP-1069 STANDBY VIDEO1VIDEO2VIDEO3VIDEO5VIDEO4 PLIIxMODE C M I N C M I N C M I N C M I N Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives. This symbol means that this unit is double insulated. An earth or ground connection is not required.
Page 2
3 English Notice The COMPUTER I/O connection should be handled by authorized person only. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.(TV, radio, etc.) - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for additional help. Caution This device complies with part 15 of the FCC Rules operation is subject to the following to condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Im portant S afety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualifi ed service personnel. WARNING: To reduce the risk of fi re or electric shock, do not expose the unit to mois- ture or water. Do not expose the unit to dripping or splashing. Do not place objects fi lled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately discon- nect the power cord from the wall. Take the unit to a qualifi ed service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Fol- low all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. Do not use this unit near water. You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ven- tilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specifi ed on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz) Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. A polarized plug has two blades, with one wider than the other. A grounding plug has two blades plus a third grounding prong. These are provided for your safety. Do not defeat grounding and/or polarization safety provisions. If the supplied plug does not fi t your outlet, please consult an electrician for replacement of the ob- solete outlet. Do not use extension cords. The main plug of the power cordset is a disconnect device of the apparatus. In order to com- pletely disconnect the apparatus from the supply mains, the main plug of the power cordset should be unplugged from the mains (AC) outlet. The stand-by LED indicator will not be lit up to show the power cord is unplugged. Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or dam- aged in any way. Pay particular attention to the power cord at the plug and where the cord exits the back of the unit. The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for a long period of time. Use only accessories specifi ed by the manufacturer. Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when moving the unit in a stand or rack to avoid injury from a tip-over. Immediately stop using the component and have it inspected and/or serviced by a qualifi ed service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any way WARNING: The master power switch is located on the rear panel. The unit must be lo- cated in the open area allowing unobstructed access to the main power switch.
