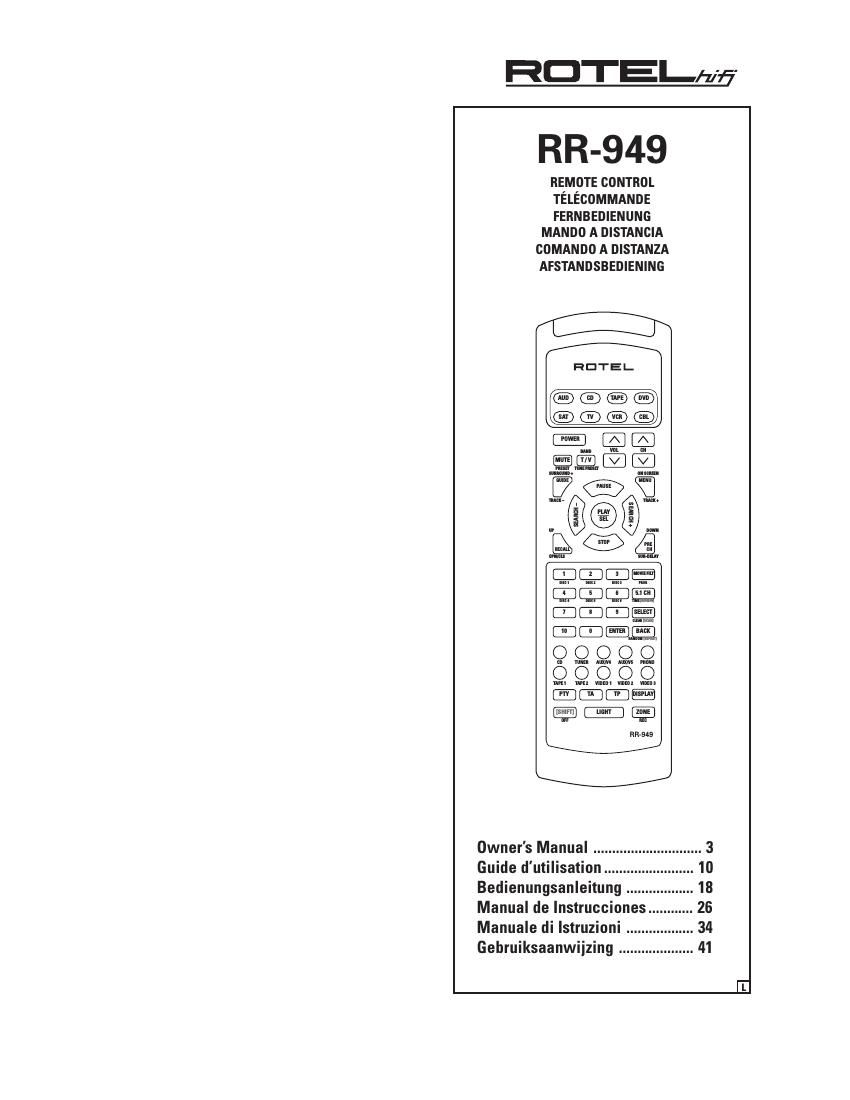

Rotel RR 949 OM
This is the 14 pages manual for Rotel RR 949 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RR 949 OM (Ocr-read)
Page 1
3 2 aaaaaaaaaaaaaaaaaaaaaa Introduction Thank you for purchasing the RR-949 Universal Remote Control. It is designed to operate all current Rotel prod- ucts as well as a wide range of popular audio and video components from other manufacturers. You will find that the RR-949 Remote Control is a significant improvement over conventional remotes in overall convenience and ease of operation. Please take a few moments to read this user guide. YouÕll find the time well spent as it will significantly shorten your search for remote control sanity. Some Preliminary Precautions ¥ The RR-949 is surprisingly rugged but it is not indestructible. So please donÕt drop it Ñ particularly not on a concrete floor! With normal care, the RR-949Õs low maintenance design will let you enjoy its conve- nience for years to come. ¥ When the RR-949 needs a bit of cleaning, use a soft, lint-free damp cloth. ¥ Above all, donÕt try to take the RR-949 apart. There isnÕt anything inside you can fix anyway and disassembly will void the warranty. Battery Installation Remove the RR-949 and the package of 4 AAA batteries from the packing material. Turn the RR-949 over and lift the cover off the battery compartment by compressing the release tab and lifting up. Place the four AAA batteries inside (follow the polarity drawing on the bottom of the compartment) and replace the cover. MAKE SURE you install the batteries correctly! aaaaaaaaaaaaaaaaaaaaaa Using the RR-949 The RR-949 can replace up to eight different remote con- trols. Stored in memory are control codes to operate your specific audio/video components, selected from hun- dreds of models in the RR-949Õs extensive database. Pro- gramming the RR-949 to operate your components takes just minutes and need only be done once. See the PRO- GRAMMING section of this manual for easy to follow in- structions. English 1 2 3 MOVIE FILT 4 5 6 5.1 CH 7 8 9 SELECT 10 0 ENTER BACK PAUSE PLAY SEL STOP SEARCH Ð SEARCH + LIGHT RR-949 MUTE POWER BAND VOL T / V CH CD TUNER AUX/V4 VIDEO 1 AUX/V5 PHONO PTY TA TP DISPLAY [SHIFT] AUD SAT CD TV TAPE VCR DVD CBL VIDEO 2 VIDEO 3 TAPE 1 TAPE 2GUIDE RECALLMENU PRE CH SURROUND + ON SCREEN TRACK Ð TRACK + DISC 1 DISC 2 DISC 3 PROG DISC 4 DISC 5 DISC 6 TIME [REVIEW] CLEAR [SCAN] RANDOM [REPEAT] OPN/CLS SUR-DELAY UP DOWN ZONE REC OFF PRESETTUNE PRESET 1 2 3 4 RR-949
Page 2
5 4Below the source selection button are five more com- mand buttons: a row of four buttons used to control RDS functions on tuners and receivers and a ZONE/REC but- ton used for certain functions on preamplifiers and pro- cessors. To operate the RR-949: Step One: Press a DEVICE button to activate the com- mands for the desired component. This command set will remain active until you press a different DEVICE but- ton. Step Two: Press COMMAND buttons to operate the component you have selected. Remember that the COMMAND buttons duplicate many controls on many different types of audio/video compo- nents and their function may vary depending on the type of component selected. For example, the PLAY/SELECT button engages the play mode on a CD Player, but it du- plicates the SELECT function on a cable TV converter. Note: The RR-949 tells you which command set is active. Each time you press a COMMAND button, the active DE- VICE key blinks red to tell you which component you are controlling. If the COMMAND button that you press has no function in the active command set (for example, the numeric keys in VCR mode), no DEVICE button will blink, indicating that the COMMAND button is inactive. The COMMAND buttons are labelled, often with multiple labels if the button serves different purposes for different kinds of components. As long as you remember that pressing a DEVICE button turns the RR-949 into, for ex- ample, a CD player remote control or a VCR remote con- trol, the functions of each button should be intuitive. Tables listing the function of each button for each type of component are supplied with this manual. A few buttons have a second function, activated by pressing and releasing the SHIFT button before pressing the COMMAND button, as described below. Shift Button 3 The SHIFT button activates additional commands for some buttons. These functions are shown in italics on the illustrations and in the command tables. To activate one of these commands, press and release the SHIFT button and then press the desired COMMAND button. English Once the programming is complete, you select a compo- nent with the press of a button and turn the RR-949 into the remote control for your Rotel CD player or your Sony TV set or your Panasonic video recorder. Then, you sim- ply press command buttons that duplicate the functions on the remote that came with your component. To get started, look at the layout of the RR-949 and the following operating instructions: Device Buttons 1 Eight buttons at the top of the RR-949 determine which set of commands is currently active. For example, if you press the AUDIO button (labeled AUD), the RR-949 be- comes the remote control for your Rotel Surround Sound Processor. If you press the TV button, the RR-949 be- comes the remote control for your TV set. These buttons are also used in programming the RR-949. See the PROGRAMMING section below for details. Command Buttons 2 This large group of buttons duplicates the functions on the remote controls for your audio/video components. A general description of these functions follows. Detailed information on the specific function of each button can be found in the CONTROL COMMANDS tables. At the top of this group of buttons are basic controls such as Power, Volume, Channel Selection, etc. Below these is a group of buttons that duplicate the transport functions on a tape recorder or VCR (Stop, Play, Pause, etc.) as well as the Up and Down commands that might be found on a cable or satellite TV receiver. The next group of buttons duplicates the numeric keypad buttons such as might be used for direct track selection on a CD Player or direct channel selection on a TV set. Included in this section are special command buttons providing functions found on various components. Near the bottom of this group of buttons are ten round source selection buttons labelled CD, TUNER, TAPE, etc. These duplicate the source input selection buttons on a receiver, preamplifier, or surround sound processor. The function of these buttons is not the same as the DEVICE buttons at the top of the remote control. The DEVICE but- tons determine which command set is active on the RR-949. The source select COMMAND buttons switch inputs on the audio/video component being controlled. RR-949
