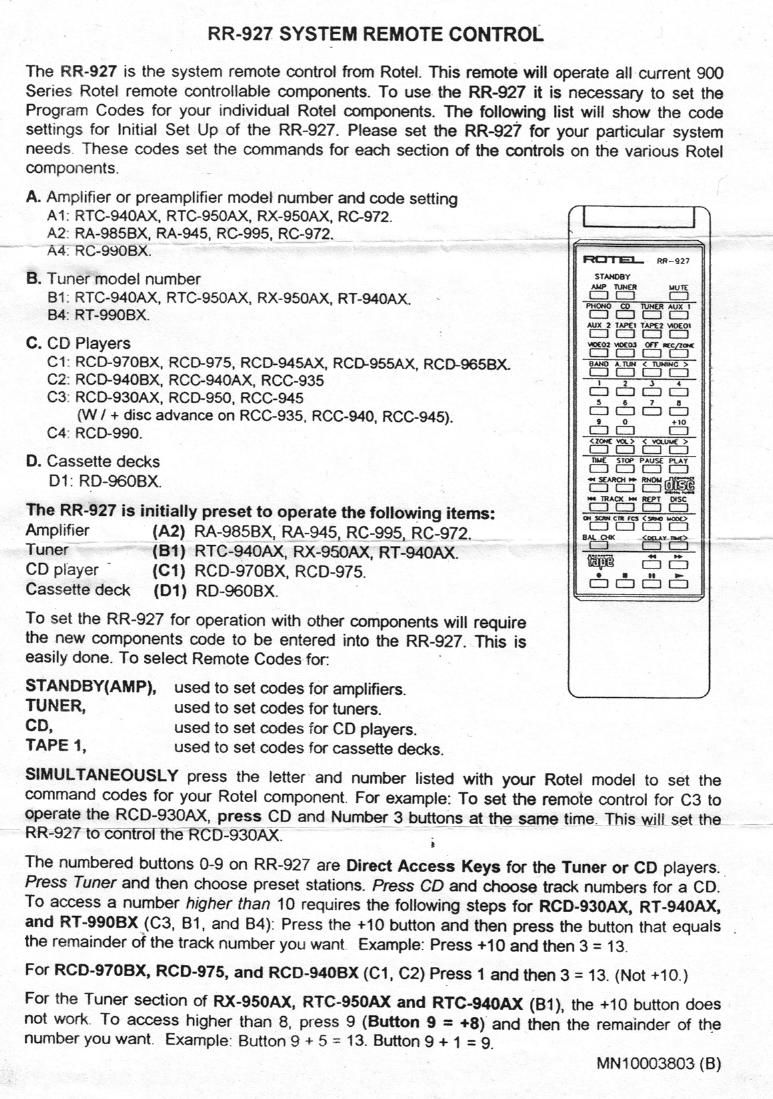

RR-927 SYSTEM REMOTE CONTROL

The RR-927 is the system remote control from Rotel. This remote will operate all current 900
Series Rotel remote controllable components. To use the RR-927 it is necessary to set the
Program Codes for your individual Rotel components. The following list will show the code
settings for Initial Set Up of the RR-927. Please set the RR-927 for your particular system
needs These codes set the commands for each section of the controls on the various Rotel
components.

A. Amplifier or preamplifier model number and code setting

A1: chewa. RTC-QSOAX. RX-950AX. RC-972. 2
A2: RA-98SBX, RA-945. R0995. RC-972. 5
A4 RC-QQOBX. RETEL van-927
B. Tuner model number 3% wt:
B1: RTC-940AX. RTC-SSOAX, RX-950AX. RT-940AX. M
B4: RT-eeon. El, 53 E, E;
l: 5 i: :1
C. CD Players (5' E, Efffi
Cl: RCD-97OBX, ROD-975, RCD-945AX, RCD-955AX, RCD-9658X. D373 a (Elwlj
C2: RCD-9408X. ROG-940M, ROG-935 m
03: RCD-930AX, RCD-950, ROG-945 :5, fi) :1) '5
(W/ + disc advance on ROG-935. ROG-940. RCC-945). . o no
04' ROD-990. %E§-<5MQ)
1:1 1:1 :1 «:3
D. Cassette decks E) [5 ":5 E5
D1: R_D-9608X. $33 as
The RR-927 is initially preset to operate the following items: angering g
Amplifier (A2) RA-98SBX, RA-945, RC-995, RC-972. :15. 85'13
Tuner (81) RTC-940AX. RX-950AX. RT-940AX. m (fl 5
CD player (C1) RCD-9'IOBX, ROD-975. i) [5 fi '5
Cassette deck (D1) RD-QSOBX.
To set the RR-927 for operation with other components will require
the new components code to be entered into the RR.927. This is
easily done. To select Remote Codes for
STANDBY(AMP), used to set codes for amplifiers. K 2
TUNER, used to set codes for tuners.
CD, used to set codes for CD players.
TAPE 1, used to set codes for cassette decks.

SIMULTANEOUSLY press the letter and number listed with your Rotel model to set the
command codes for your Rotel component. For example: To set the remote control for C3 to
operate the RCD-930AX, press CD and Number 3 buttons at the same time. This will set the
RR-927 to control the RCD-930AX. -,

The numbered buttons 0-9 on RR-927 are Direct Access Keys for the Tuner or CD players.
Press Tuner and then choose preset stations. Press CD and choose track numbers for a CD.
To access a number higher than 10 requires the following steps for ROD-930M, RT-940AX,
and RT-SSOBX (C3, B1, and 84): Press the +10 button and then press the button that equals .
the remainder of the track number you want Example: Press +10 and then 3 = 13.

For ROD-97OBX, ROD-975, and RCD-S4OBX (C1. C2) Press 1 and then 3 = 13. (Not +10.)

For the Tuner section of RX-950Ax, RTC-950AX and RTC-940AX (81), the +10 button does
not work. To access higher than 8, press 9 (Button 9 = +8) and then the remainder of the
number you want. Example: Button 9 + 5 = 13. Button 9 + 1 = 9.

MN10003803 (B)
