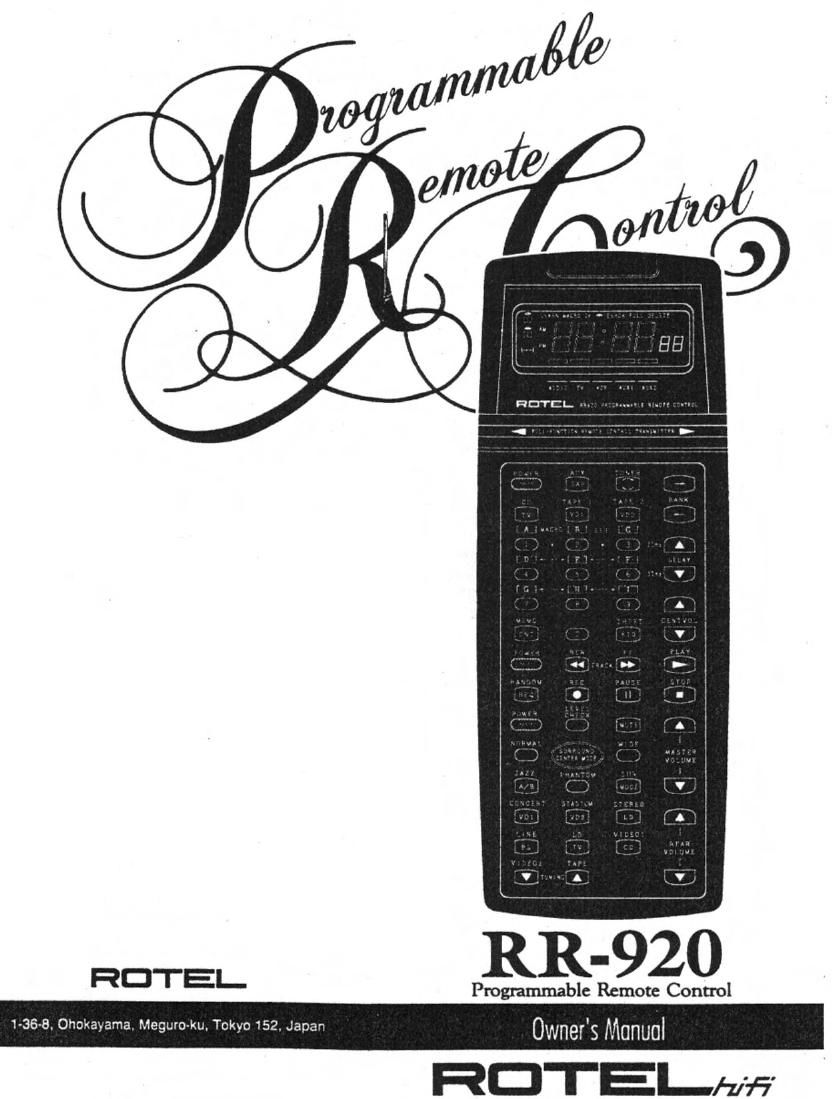

Rotel RR 920 OM

Page 2

Introduction

Congratulations on purchasing a ROTEL
RR920 Programmable Remote Control.
It has been designed to give you the
flexibility of having 50 buttons and 5
banks available with which to store
remote commands.

The RR920 leams the commands

of other infrared remote controls such

as those that come with TVs, VCRs,

cable boxes, audio components -

even most remote activated ceiling fans,
light dimmers and video screens!

After you teach" your ROTEL Programma-
ble Remote the functions of other remotes,
the RR920 will be able to duplicate their
operation exactly.

Our Programmable Remote has some
unique and useful features not found in
other remotes which help to simplify its
operation. The LCD display shows the
current time and is easy to read. The
Macro Function allows you to chain
together a sequence of commands that
can be transmitted with the push of a
single button. it has two Timer Functions
for operating your system when you are
not at home, and the Sleep Function lets
you turn your system off up to two hours
after setting it.

Unpacking and
Paperwork

Carefully unpack your RR920 and keep the
original box for future moving, shipment
or long-term storage.

After opening the box, please check for
any visible signs of damage that were not
apparent from the outside of the box.

If you do encounter what appears to be
concealed dama e, please consult your
ROTEL Dealer ore proceeding to
further unpack or operate the unit.

. -.. _- .._.. -.. l.«..- firmert-fipgmw.-. . -. .

H... u

I

l

Important Paperwork

Make sure to save your sales receipt. Your
receipt is extremely important to establish
the duration of your Limited Warranty,
and for insurance purposes. Next make a
note of the serial number which is located
on the back of the RR920. Record it in the
space provided below for convenient
reference.

Serial Number:
Purchased at:
Date:

Powering Up The RR920

The ROTEL RR920 Programmable Remote
Control requires four AA-size batteries. We
recommend using alkaline cells, especially
if youre going to use your remote often.

1. Remove the battery cover on the back
of the RR920. .

2. Insert four AA cells, making sure that
the polarity of each battery (+ and -
ends) corresponds with the embossed
diagram on the inside bottom of the
battery compartment

3. Replace the battery cover.

When the batteries begin to run low, the
LCD display will begin to dim. Whenever
changing batteries, chan e all four at the
same time. Dont leave e batteries out
of the RR920 for more than 10 minutes
or it will lose" its memory, and all the
commands will have to be reprogrammed
back into the RR920.

We recommend that you change the
batteries at least once a year to ensure that
me RR920 will retain all of its programmed
commands in memory.
