Rotel RP 510 OM

Page 1

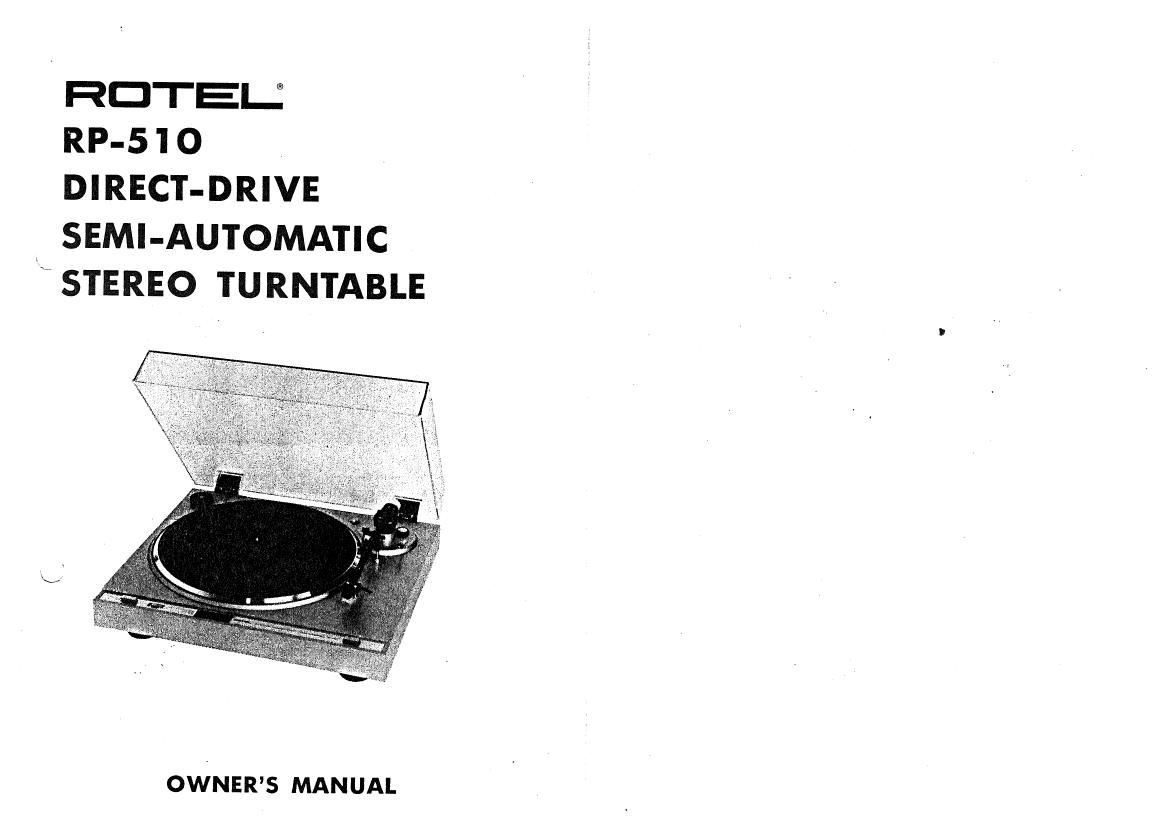

HOTEL:
RP-51 o
DIRECT-DRIVE
SEMI-AUTOMATIC
STEREO TURNTABLE

\__/

OWNERS MANUAL

Page 2

INTRODUCTION

Please read this owners manual thoroughly to ensure correct operation of your new
turntable.
Warning: To prevent fire or shock hazard, do not expose this appliance to moisture.

NOMENCLATURE

Fig. 1 1. 45 rpm adaptor 9. Cueing lever

2. Platter ' 10. Arm rest+ lock
3. Turntable mat . 11. Headshell
4. Tonearm 12. Manual arm lifter
5. Automatic arm lifter 13. Reject button
6. Counter weight dial 14. Strobe windov \
7. Counter weight 15. Pitch control x lo
8. Anti

ma

1. Remove turntable, turntable mat, counter weight and head shell from the package.
These parts are packed separately in the carton.
2. Attach dust cover at the rear of cabinet.
3. Set the voltage in accordance with the power source in your country. Please read
carefully change of working voltage procedure.
. Install the platter over the center spindle shaft bearing carefully.
. Lay the turntable mat evenly over the turntable.
. lnsert counterweight onto rear of tonearm shaft and rotate to advance the position.
Precise adjustment will be made later on (refer to stylus pressure adjustment).
7. Fit the head shell with cartridge to the tone arm.
Secure with coupling ring by rotating the ring in the direction shown.

0301-
