Rotel RMX 82 82L OM

Extracted text from Rotel RMX 82 82L OM (Ocr-read)


Page 2

illiillSll

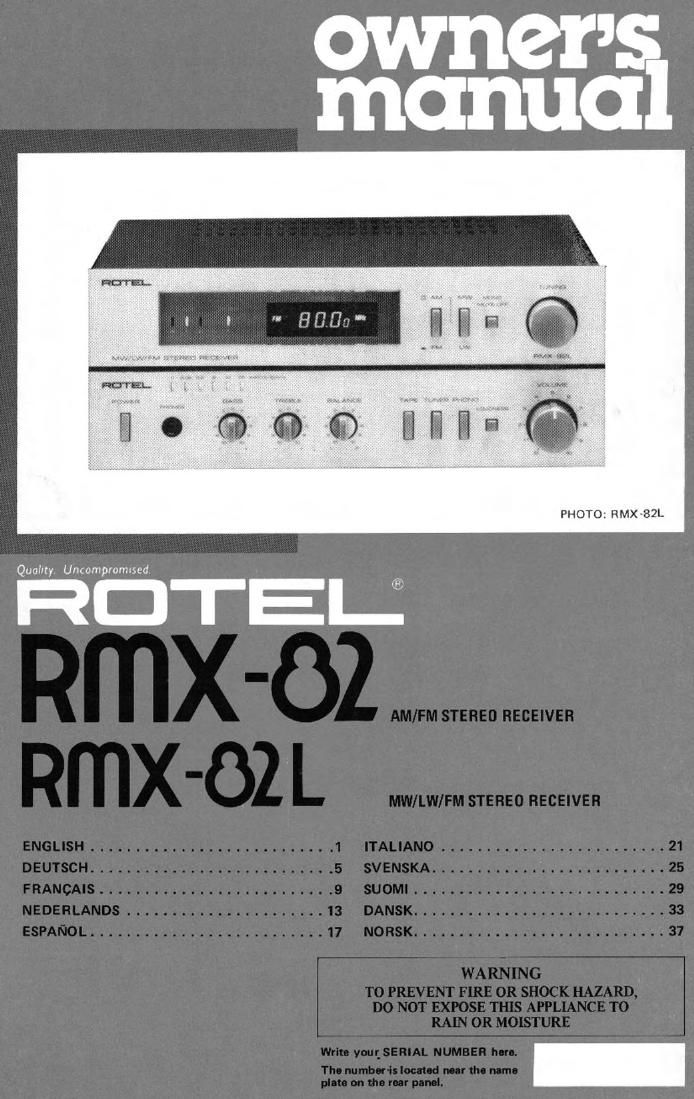

AM/FM STEREO RECEIVER RMX-82
MW/LW/FM STEREO RECEIVER RMX-82L

INTRODUCTION

We at Flotel want to thank you for purchasing
our wdio product,

Hotel audio products are desimed to use the
latest electronic technology, and they incorpo-
rate our long experience as a specialist manufac-
turer of audio equipment. We are confident
that you will find satisfaction in the hid:
mality sound and top performance, and that
you will find pleasure in the functional beauty
achieved throufl't human-engineering concept,
Before starting operation, please read this
instruction manual thoroudfily and acquaint
yourself with the proper mode of using the unit
and all its connections.

We hope you will enjoy topnotch performance
for many years to come.

BEFORE ENJOYMENTI
POWER SUPPLY

Follow the instructions below for maximum
safety:

1. Use a wall outlet for power apply

Be sure to connect the AC line cord directly to
a household wall outlet, and not to an auxiliary
outlet on another component. Be certain that
the outlet voltage matches the electrical rating
of the unit, found on the rear panel name plate.
2. Connecting and removing AC cord

Be sure to connect or disconnect the AC line
cord only after turning off the power switch to
prevent possible shock noise or damage to
the speakers.

3. VerrtlIaIe the unit well

Never block any ventilation holes at the top
and bottom of the unit. Be sure also to provide
ample ventilation space around the unit. Poor
ventilation may result in damage due to exces-
tive heat.

I. Do not open the eab'met

In order to avoid electric shock or damage to
the component, never open the cabinet. If a
foreign object falls inside the unit by mistake.
turn the power off, disconnect the wall plug,
and consult a qualified electrician or your
dealer.

5. Insulation

Be sure to place the unit in a level and flat place
where it is mé from humidity, vibration, high
temperature and not exposed to direct sunlight.
Be careful not to place the unit in a highly
enclosed place such as near a well or on a
bookshelf. A poor ventilation will cause undo»
sirable effects to the unit.

6. Moving the unit

When transportlng, remove the AC cord from
the well outlet and all other connected cords on
the rear panel to prevent wire breakage and
short circuits.

7. If the unit pts wet

If the unit should get wet, immediately discon-
nect the AC cord, and consult your dealer or a
qualified electrician.

8. Cleaning and mainten-ice

Do not use chemicals such as benzine or thin-

ners on the front panel, Always use a soft, dry
cloth to clean the unit.

8. Owners manud

Keep the owner's manual near the unit, and
record the serial number (found on the rear
panel) on the cover.

EXCLUSIVE NOTE FOR U.K.

If your unit comes with a 24:0 cable
without a plug, make certain live and
neutral leads are connected to the proper
terminals, Check that the terminals are
screwed down firmly and no loose strands
of wire are present,

IMPORTANT: The wires in this mains lead
are coloured in accordance with the follow-

ing code:
BLUE: NEUTRAL
BROWN: LIVE

As the colours of the wires in the mains lead
of this apparatus may not correspond with
the coloured markings identifying the
terminals in your plug proceed as follows.
The wire which is coloured BLUE must be
connected to the terminal which is marked
with the letter N or coloured BLUE or
SLACK. The wire which is coloured
BROWN must be connected to the terminal
which is marked with the letter L or colour-
ed BROWN or RED.

R

SPEAKERS

Use speaker systems with impedance ratings of
8-16 ohms. Before hooking up your speaker
system, be sure to check its impedance, which
should be indicated either on the back of
the speaker, or in the speaker instruction man-
ufl.

HOOKING UP SPEAKERS

Connect the speaker leads of the right-hand
speaker to terminals "R", and the speaker leads
of the left-hand speaker to terminal: "L". Make
sure that the "4'" speaker lead is connected to
the "+" terminal, and the -" lead to the -"
terminal.

Strip LOcm (3/8") of the polyvinyl chloride
insulation from the end of each speaker lead.
Twist the exposed strands tightly, and secure
the end with a touch of solder.

The terminals are the push-insert type. Insert
the and of the lead into the hole while pushing
on the button. Then release the button; the
hole will close and the cord is firmly fixed.

SPEAKER

[3%

L SPEAKER lMPEDANCE

GI

BS? or MORE
