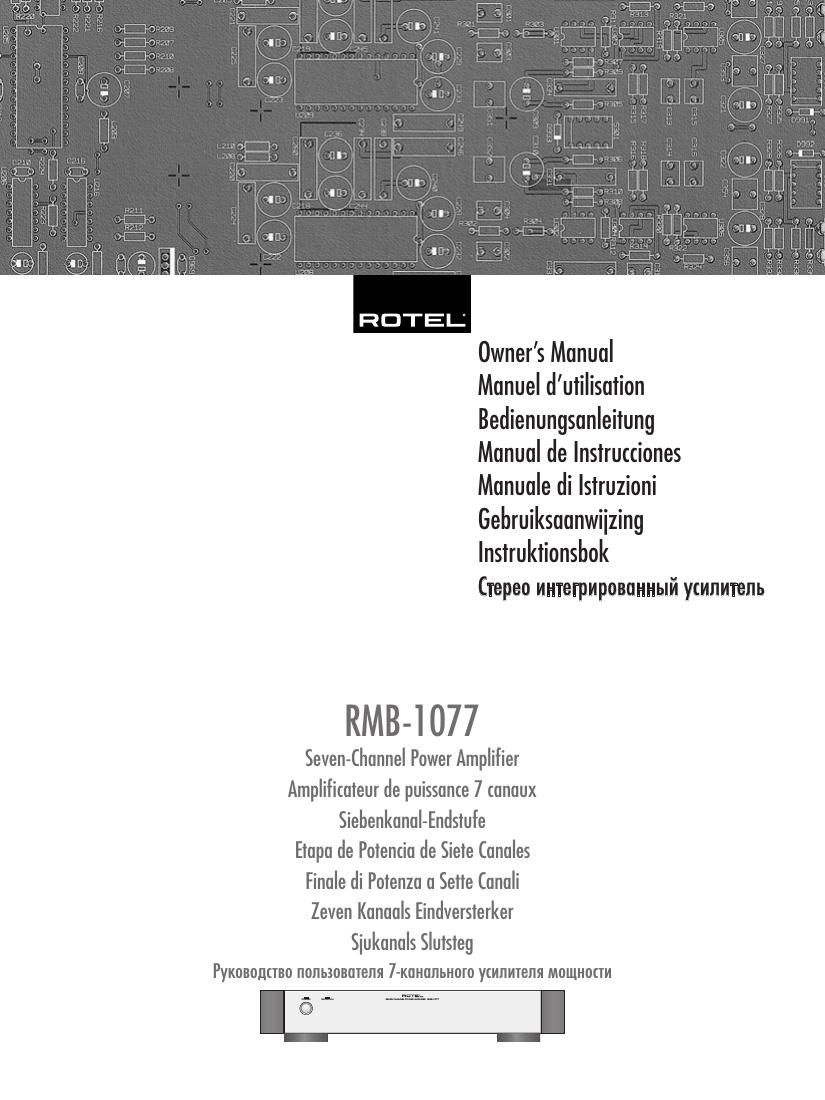

Rotel RMB 1077 OM
This is the 44 pages manual for Rotel RMB 1077 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RMB 1077 OM (Ocr-read)
Page 1
2 Important Safety Information WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, be sure that the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all op erating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clear - ance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay par - ticular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any way Please use Class 2 Wiring when connecting the speaker terminals of the unit to ensure proper insulation and minimize the risk of electrical shock. Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. RMB-1077 Seven Channel Power Amplifier This symbol means that this unit is double insulated. An earth connection is not required. > 10 cm > 4 in > 10 cm> 4 in > 10 cm > 10 c m > 4 in
Page 2
3 English ������ ��������� � �������������������� ���� ����� ��� ������ � � � � � � � � � Figure 1: Controls and Connections Commandes et branchements Bedienelemente und Anschlüsse Pannello frontale e posteriore Controles y Conexiones De bedieningsorganen en aansluitingen Kontroller och anslutningar Органы управления и разъемы
