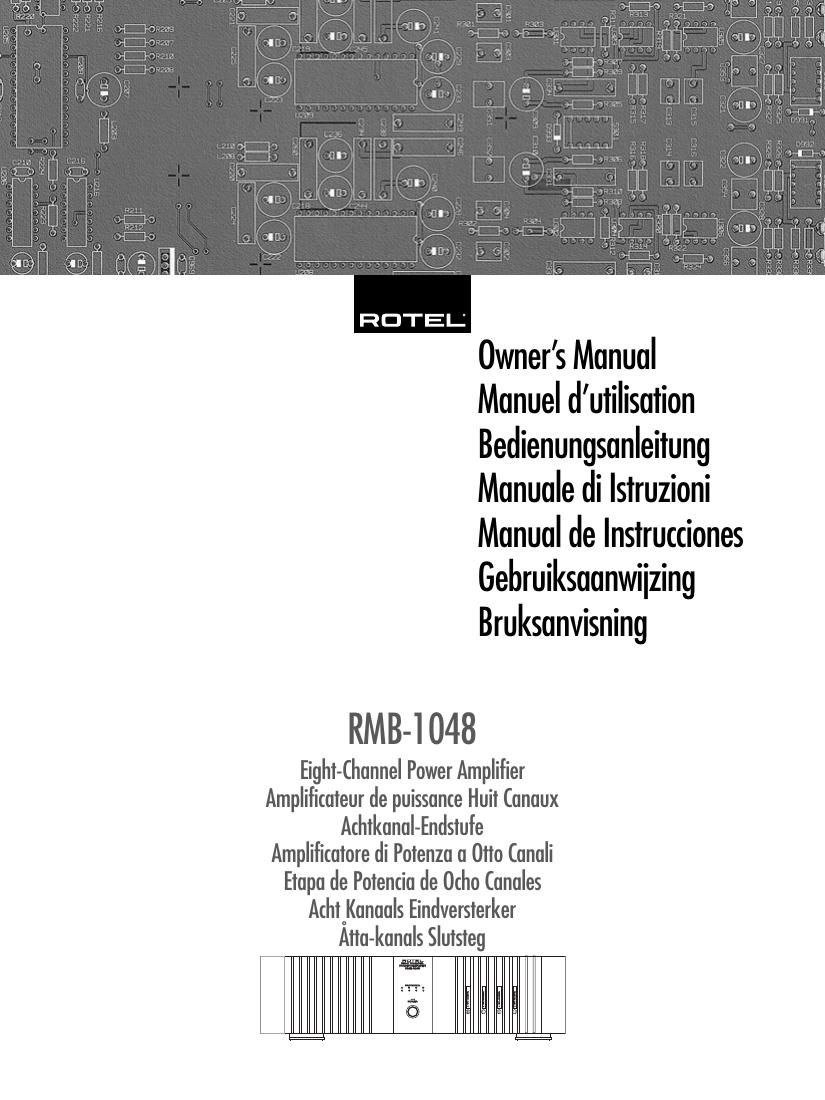

Rotel RMB 1048 OM
This is the 40 pages manual for Rotel RMB 1048 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RMB 1048 OM (Ocr-read)
Page 1
2 RMB-1048 Eight Channel Power Amplifier Important Safety Information WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not al- low foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the compo- nent. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay par- ticular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: -The power supply cord or plug has been damaged. -Objects have fallen or liquid has been spilled into the unit. -The unit has been exposed to rain. -The unit shows signs of improper operation -The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY. APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Page 2
3 English EIGHT CHANNEL POWER AMPLIFIER RMB-1048 CH - B LEVEL CH - A LEVEL CH - C LEVEL CH - D LEVEL POWER APROTECTION D C B RLINPUT B RL R L INPUT SIGNALOUTPUT LINK A LINK STEREO 12V TRIG . OFF RLINPUT C LINK STEREO RLINPUT D LINK STEREO OUT IN ~ WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQIPMENT TO RAIN OR MOISTURE. 4 OHMS MINIMUM SPEAKER IMPEDANCE ++ – –RIGHTLEFT SPEAKERS D ++ – –RIGHTLEFT SPEAKERS C ++ – –RIGHTLEFT SPEAKERS B ++ – –RIGHTLEFT SPEAKERS A MODEL NO. RMB-1 048 POWER CONSUMPTION: 400W 11 10 1 2 3 4 5 6 5 6 5 5 9 8 7 6 Figure 1: Controls and Connections Commandes et branchements Bedienelemente und Anschlüsse Controlli e Collegamenti Controles y Conexiones Bedieningsorganen en aansluitingen Funktioner och anslutningar
