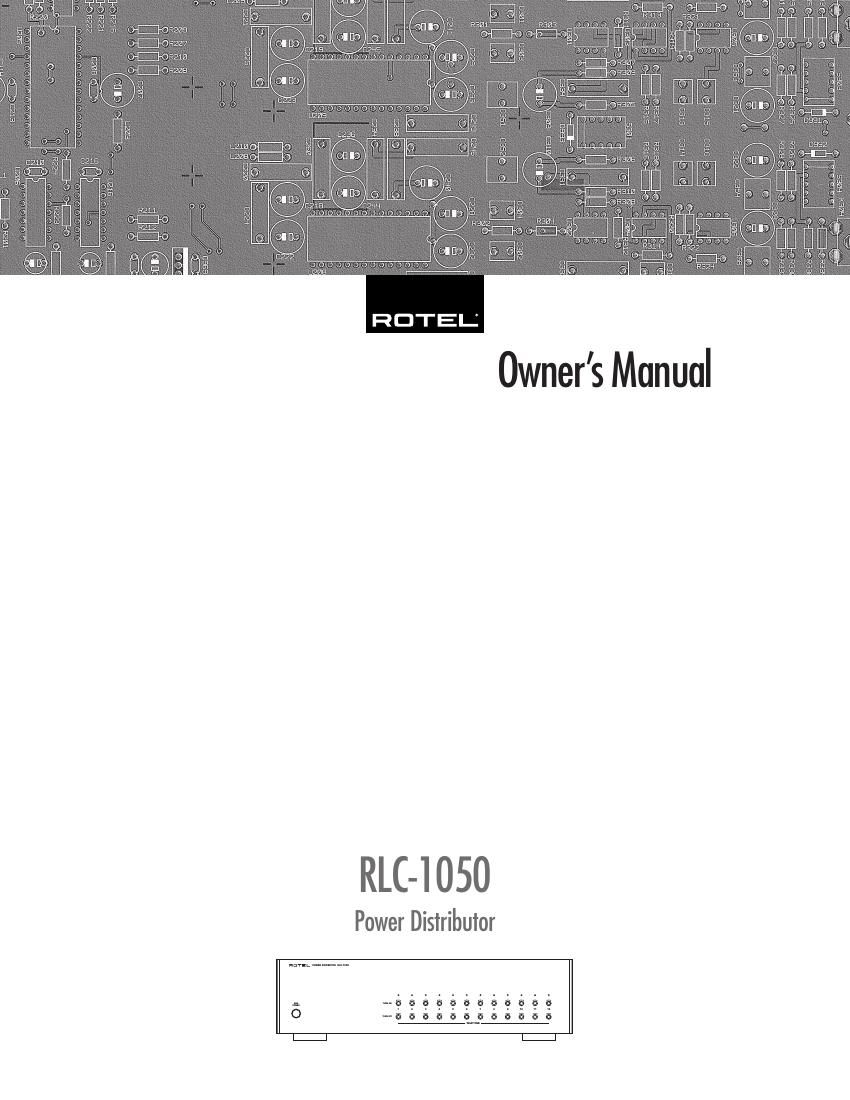

Rotel RLC 1050 OM
This is the 8 pages manual for Rotel RLC 1050 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RLC 1050 OM (Ocr-read)
Page 1
2 RLC-1050 Power Distributor WARNING: There are no user serviceable parts in- side. Refer all servicing to qualified service person- nel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified ser- vice person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instruc- tions and on the product itself. Follow all operating instruc- tions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the component to the power outlet only with the sup- plied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat ground- ing and/or polarization provisions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: ¥ The power supply cord or plug has been damaged. ¥ Objects have fallen or liquid has been spilled into the unit. ¥ The unit has been exposed to rain. ¥ The unit shows signs of improper operation ¥ The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to sup- port its weight. Do not place it on a moveable cart that could tip over.
Page 2
3 Figure 1: Controls and ConnectionsEnglish 1 2 3 4 5 6 7 8 9 10 11 12 POWER DISTIBUTOR RLC-1050 POWERTURN ON TURN OFF DELAY TIME 1 2 3 4 12 10 8 6 4 2 SWITCHED TOTAL MAX 1500W 11 9 7 5 3 1 UNSWITCHED MAX 400W 5 6 115V CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: WARNING SHOCK HAZARD Ð DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUEÐNE PAS OUVRIR SERIAL NO. CONTROL 12V TRIGGER IN AC LINE IN POWER DISTRIBUTOR MODEL NO. RLC-1050 POWER CONSUMPTION: 40W MAIN POWER AC BREAKER 16 A 16 AVOLTAGE SELECTOR 7 8 9 10 11 12
