Rotel rhq 10 owners manual

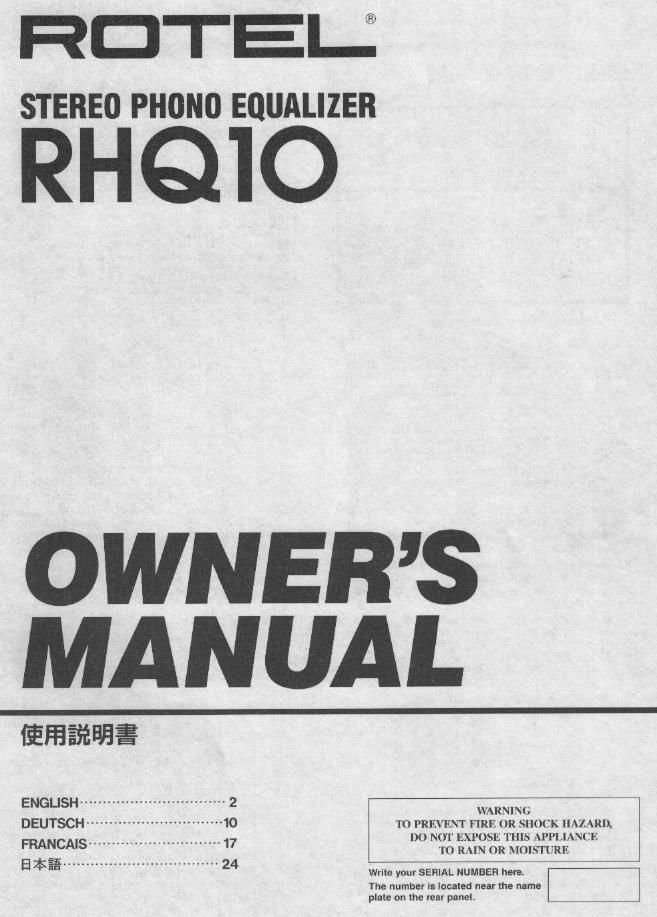

Page 1

ST EREO PHONO EQUALIZEH

RHQIO

OWNERS
MANUAL

{mating

ENGUSH .............................. 2 r" V ' ' ,
n \RNIM:
DEUTSCH """"""""""""""""" 10 '10 mm EXT FIRE ()R SHOCK HAZARD.
........................... Do NOT Iaxmslr, 'I'IIIS APPLIANCE
FRAE'CA'S 17 10 RAIN 0R MOISIl'RE
Elva? ................................ 24 ,7, 7

Write your SERIAL NUMBER here.

The number is lacaled near the name
plate on the rear panel.

Page 2

SAFETY INSTRUCTIONS

CAUTION

II 0' ELECTRIC SIIUCI
DU NUT UPEII

CAUTlON: To REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT REMOVE
COVER (0R BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

- Explanation of Graphic-I Symbol:

The lightning flash with arrowhead symbol. Within an
equilateral triangle, is intended to alert you to the
presence or uninsutnted "dangerous votinge" within the
woduci's enclosure that may be at suliicieni magnitude
to constitute a risk at electric shock to persons

intended to alert you in the presence or important
operating and maintenance (servicmgi msiruciiom m

The exclamation point Wilhm an equilateral triangle is
I the literature accompanying the Bppllnnce.

1 . Ftead Instructions - All the saiety and operating Instructions should
be read before the appliance is operated.

2. Retain Instructions - The saiety and operating instructions should
be retained tour lor luture relerence.

3. Head Warnings - All warnings on the appliance and In the
operating instructions should be adhered to.

4. Follow instructions - All operating and other instructions should
be tollowed.

5. Water and Moisture -- The appliance should not be used near water
- lor example, near a bathtub. washbowl. kitchen sink. laundry
tub. in a wet basement. or near a swimming pool. etc.

6. Carts and Stands - The appliance should be used only with a cart
or stand that is recommended by the manutacturer.

PORTABLE CART
WARNING

SHES/1

7. Wall or Ceiling Mounting - The appliance should be mounted to
a wall or ceiling only as recommended by the manulaoturer

8. Ventilation -- The appliance should be situated so that its location
or position does not intoriere with its proper Ventilation. For
example. the appliance should not be situated on a bed. sofa. rug.
or similar suriace that may bloat the ventilation openings; or placed
in a built-in installation. such as a bookcase or cabinet that may
Impede the tlow oi air through the ventilation openings.

EXCLUSIVE IIDTE FOII U.K. 1

it your unit comes with a zoom cable without a plug. make
certain live and neutral leads are connected to the proper
terminals. Check that the terminals are screwed down lirmly
and no loose strands ot wire are present.
IMPORTANT: The wires in this mains lead are coloured in
accordance with the tollowing code:

BLUE: NEUTRAL

BROWN: LIVE
As the colours ol the wires in the mains lead oi this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug proceed as follows. The wire which is
coloured BLUE must be connected to the terminal which is
marked with the letter N or coloured BLUE or BLACK. The wire
which is coloured BROWN must beconnected to thelermlnal
which is marked With the letter L or colour BROWN or RED.

9. Heat - The appliance should be situated away from heat sources
such as radiators. stoves. or other appliances that produce heat.

10. Power Source - The appliance should be connected to a power
supply only oi the type described in the operating instructions or
as marked on the appliance.

. Power-Cord Protection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them. paying particular attention to cords at plugs.
convenience receptacles, and the point where they exit item the
appliance.

1

12. Cleaning - The appliance should be cleaned only as
recommended by the manuiacturer.

13. Nonuse Periods - The power cord at the appliance should be
unplugged train the outlet when leit unused tor along period of time.

to Object and Liquid Entry - Care should be taken so that objects do
not tall Into and liquids not spilled into the Inside ol the appliance.

t5. Damage Requiring Service - The appliance should be serviced
by qualilied service personnel when:

A. The power-supply cord or the plug has been damaged; or

B. Objects have iallen. or liquid has been spilled into the appliance:
or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits
a marked change in perlormenoe: or

E. The appliance has been dropped. or the cabinet damaged.

is. Servrcing - The user should not attempt to service the appliance
beyond those means described in the operating instructions. All
other serVIcing should be relerred to qualified service personnel

17. Grounding or Polarization - The precautions that should be taken
so that the grounding or polarization means at an appliance is not
deieated
