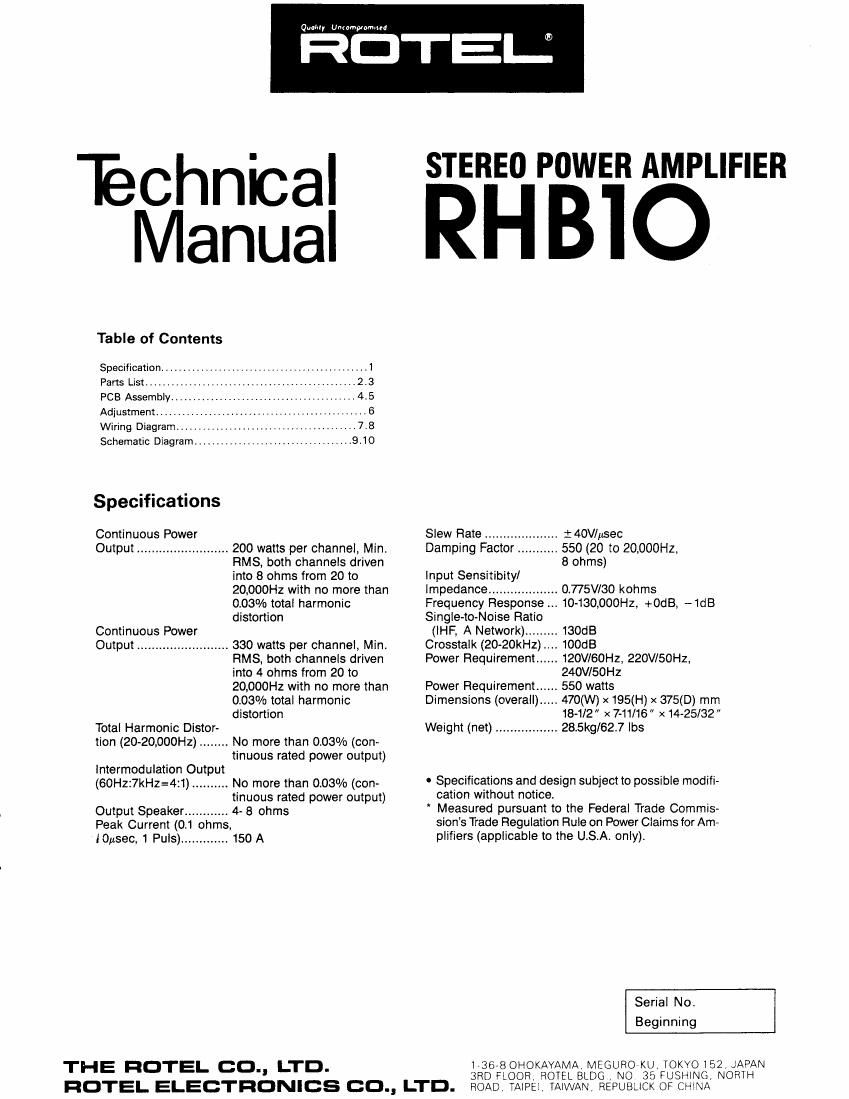

Page 1

QuaMy Unrbmwamucd

OTEIJ

Technical
Manual

Table of Contents

Specification. ..
Parts List ......
PCB Assembly...
Adjustment. . . .
Wiring Diagram..
Schematic Diagram.

Specifications

Continuous Power

Output ......................... 200 watts per channel, Min.
HMS, both channels driven
into 8 ohms from 20 to
20,000Hz with no more than
0.03% total harmonic
distortion

Continuous Power

Output ......................... 330 watts per channel, Min.
RMS, both channels driven
into 4 ohms from 20 to
20,000Hz with no more than
0.03% total harmonic
distortion

Total Harmonic Distor-

tion (20-20,000Hz) ........ No more than 0.03% (conv
tinuous rated power output)

lntermodulation Output

(60Hz:7kHz=4:1) .......... No more than 0.03% (con-
tinuous rated power output)

Output Speaker ............ 4- 8 ohms

Peak Current (0.1 ohms,

l Ousec, 1 Puis) ............. 150 A

THE HOTEL CO., LTD.
FIOTEL ELECTRONICS CO., LTD. ROAD, TAlPEl. TAiWAN, REPUBLlCK or CHINA

STEREO POWER AMPLIFIER

RH BIO

Slew Rate ............ .. : 40V/psec
Damping Factor .. 550 (20 to 20,000Hz,
6 ohms)

lnput Sensitibity/
Impedance.
Frequency Resp .
Single-to-Noise Ratio
(ME A Network) ......... 130GB

.. 0.775V/3O kohms
.. 10-130,000HZ, +OdB. -1dB

Crosstalk (20-20kHz) .. 100dB
Power Requirement. .. lZOV/SOHZ, 220V/50Hz,
240Vl50Hz

Power Requirement ...... 550 watts

Dimensions (overall) ..... 470(W) x 195(H) x 375(D) mm
18-1/2 x 741/16 x14-25/32

.. 28.5kg/62] lbs

Weight (net)

- Specifications and design subject to possible modifi-
cation without notice.

Measured pursuant to the Federal Trade Commis-
sions Trade Regulation Rule on Power Claims for Am-
plifiers (applicable to the USA. only).

Serial No.
Beginning

lVBB-BOHOKAYAMA, MEGURO KU, TOKYO l52, JAPAN
3RD FLOOR. ROTEL BLDG. NO 35 FUSHlNG, NORTH
