Rotel rha 10 owners manual

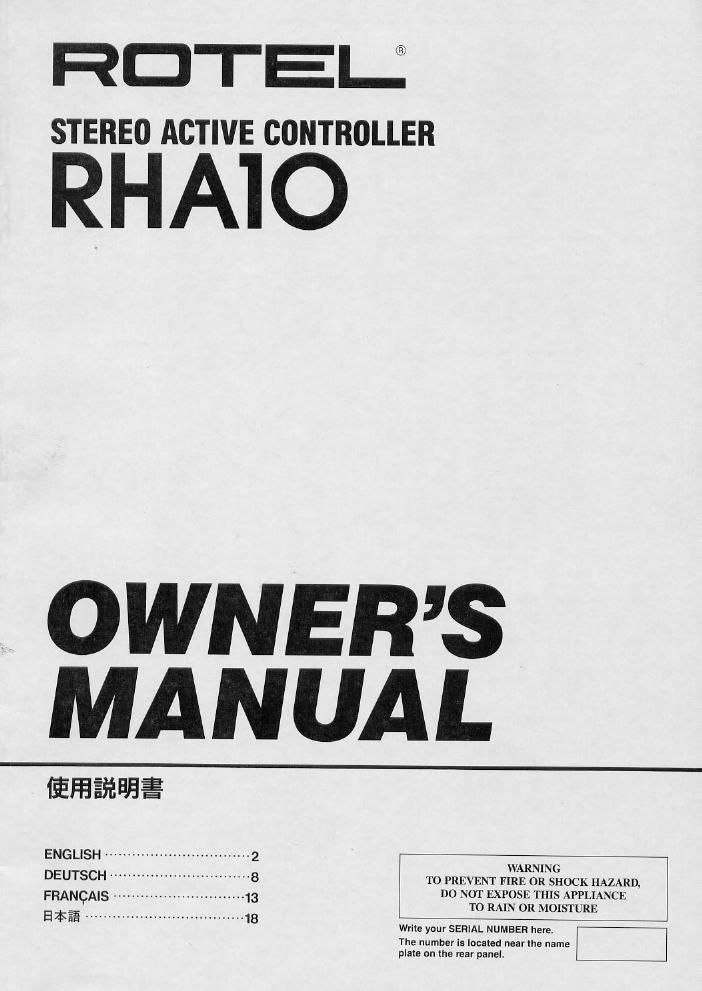

Page 1

STEREO ACTIVE CONTROLLER

RHAIO

OWNERS
MANUAL

fifiiififlflg

ENGLISH ............................ 2 WARNING

DEUTSCH --------------------------- 8 TO PREVENT FIRE 0R SHOCK HAZARD.
00 NO!" EXPOSE nus APPLIANCE

FRANCAIS """"""""""""""" 13 TO RAIN OR MOISTURE

a *gg ................................... 18

Write your SERIAL NUMBER here.
The number Is Iocaled near the name
plate on the rear panel. 7

Page 2

SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

- Explonatlon ol Graphlcol Symbols

N

The lighlnlng llash wilh arrowhead symbol. Within an
equilateral triangle. IS Intended to alert you to the
presence or uninsulated "dangerous voltage" within the
product's enclosure that may be oi SUIIlCtBnl magnitude
to constitute a risk at electric shock to persons.

The exclamation point Wilhln an equilateral triangle is
intended to alert you to the presence ol important
operating and maintenance (servtclrlgl Instructions in
lhe literature accompanying me appliance.

Read Instructions - All the salety and operating instructions should
be read before the appliance ls operated.

Retain Instructions - The salety and operating instructions should
be retained lour lor luture relerenoet

Head Warnings - All warnings on the appliance and in the
operating Instructions should be adhered to

Follow Instructions - All operating and other instructions should
be lollowed.

Water and Moisture - The appliance should not be used near water
- lor example. near a bathtub, washbowl. kitchen sink. laundry
tub. in a wet basement, or near a swimming pool. etc.

Carts and stands - The appliance should be used only with a cart
or stand that is recommended by the manufacturer,

PORTABLE CART

WARNING

S i .er

Wall or Ceiling Mounting # The appliance should be mounted to
a wall or ceiling only as recommended by the manulacturer.

Ventilation *The appliance should be situated so that its location
or position does not interlere with its proper ventilation. For
example. the appliance should not be situated on a bed. sola. rug.
or similar surface that may block the ventilation openings; or placed
In a built-in installation. such as a bookcase or cabinet that may
impede the New of air through the ventilation openings.

I EXCLUSIVE NOTE FOR M. i

ll your unit comes with a 2-core cable without a plug. make
certain live and neutral leads are connected to the proper
terminals. Check that the terminals are screwed down lirmly
and no loose strands ol wire are present.
IMPORTANT: The wires in this mains lead are coloured in
accordance with the lollowmg code:
BLUE: NEUTRAL
BROWN: LIVE
. Asthe colours ol the wires in the mains lead olthis apparatus
I may not correspond with the coloured markings identifying the
terminals in your plug proceed as lollows. The wire which is
coloured BLUE must be connected to the terminal which is
marked with the letter N or coloured BLUE or BLACK. The wire
which is coloured BROWN must be connected tothe terminal
which is marked with the letter L or colour BROWN or RED.

Heat -The appliance should be situated away irom heat sources
such as radiators. stoves. or other appliances that produce heat.

10. Power Source - The appliance should be connected to a power
supply only at the type described in the operating instructions or
as marked on the appliance.

t 1 , Power-Cord Frotection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them. paying particular attention to cords at plugs.
convenience receptacles. and the point where they exit lrorn the
appliance.

12. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.

13. Nonuse Periods - The power cord at the appliance should be
unplugged lrom the outlet when left unused lor along period o1 time.

14. Obiect and Liquid Entry - Care should be taken so that objects do
not fall into and liquids not spilled into the inside of the appliance.

15. Damage Requiring Service - The appliance should be serviced
by qualilied service personnel when:

A. The powervsupply cord or the plug has been damaged: or

B. Objects have tallen. or liquid has been spilled Into the appliance:
or

C. The appliance has been exposed to rain: or

D. The appliance does not appear to operate normally or exhibits
a marked change in perlormance: or

E. The appliance has been dropped. or the cabinet damaged.

16. Servicing - The user should not attempt to serwce the appliance
beyond those means described in the operating instructions. All
other servicing should be referred to qualified sen/ice personnel.

17. Grounding or Polarization - The precautions that should be taken
so that the grounding or polarization means oi an appliance is not
de'eated.
