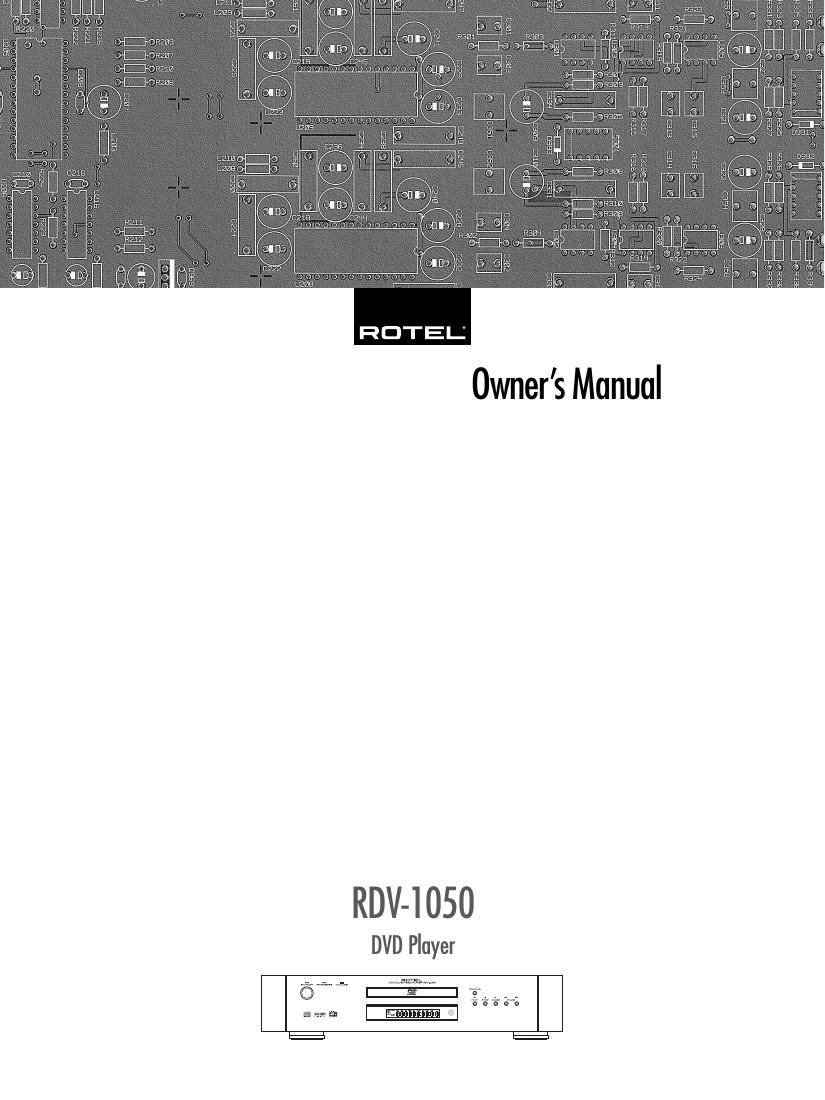

Rotel RDV 1050 OM
This is the 38 pages manual for Rotel RDV 1050 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RDV 1050 OM (Ocr-read)
Page 1
RDV-1050DVD Player Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immedi- ately disconnect the power cord from the wall. Take the unit to a qualified ser- vice person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Fol- low all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. Do not use benzene, thinner or other organic solvents and disinfectants. These may cause deformation or discoloring. You must allow a minimum of 10 cm (46 inches) of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords. The main plug of the power cordset is a disconnect device of the apparatus. In order to com- pletely disconnect the apparatus from the supply mains, the main plug of the power cordset should be unplugged from the mains outlet. The stand-by LED indicator will not be lit up to show the power cord is unplugged. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment gene rates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio commu- nications. However, there is no guarantee that interference will not occur in a particular instal- lation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor- rect the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2.DANGER: Visible laser radiation when open and interlock failed or bypassed. Avoid direct exposure to beam. 3.CAUTION: Do not open the top cover. There are no user serviceable parts inside the player; leave all servicing to qualified service personnel. WARNING! To reduce the risk of electrical shock, fires, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose the unit to rain or moisture. 3. Do not touch the power cord or plug with wet hands. 2
Page 2
3 RDV-1050DVD Player 1 36 2 3 4 5TV / DVD switch PAL/NTSC button OPEN/CLOSE button REPEAT button Numeric buttons SUBTITLE button ANGLE button PAGE button TITLE / GROUP button / PREVIOUS button (STOP) / CLEAR button / SLOW – button TOP MENU button VOLUME – / CURSOR button CHANNEL – / CURSOR button CHOICE button 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 Infrared signal output window DVD POWER button TV POWER button RETURN button DIMMER button VSS button +10 / MUTING button TV/VIDEO / CANCEL button AUDIO / fs/RATE button ZOOM button VFP / PROG SCAN button / NEXT button (PAUSE) button (PLAY)/ SELECT button / SLOW + button MENU button CHANNEL + / CURSOR button VOLUME + / CURSOR button ON SCREEN button ENTER button 6 7 8 9 10 11 12 13 14 15 Figure 1: RR-DV96 Remote Control 1 TV/DVD switch Switches the RDV-1050 between TV control mode and the DVD player control mode. 2 OPEN/CLOSE button Opens and closes the disc tray. 3 Repeat button Switches the RDV-1050 among no repeat mode, repeat 1 mode and to repeat all mode. 4 Numeric buttons In DVD/CD mode use these to select a title or track number, to enter a time for the Time search. In TV mode they are used to select a TV channel. 5 SUBTITLE button Used to activate the on-screen subtitle selection dis- play and to turn the subtitle on or off (for DVD VIDEO). 6 ANGLE button Changes camera angles during playback of a DVD VIDEO disc containing multiple camera angles. 7 PAGE button Lets you select from the available still pictures when playing an DVD AUDIO disc. 8 TITLE/GROUP button Used to select a Title when playing a DVD VIDEO disc, and to select a Group when playing a DVD AUDIO disc. 9 /PREVIOUS button Skips back a chapter, title or track. Also used for the page selection of a menu screen (for DVD VIDEO/ Video CD). Holding down this button during play- back rapidly scans to earlier scenes. 10 ■ (STOP)/CLEAR button Stops playback. Also used to erase all the programmed tracks for the program play. 11 /SLOW – button During playback lets you reverse disc play at 1.5 to 60 times normal speed. When disc play is paused press to reverse disc play at 1/2 to 1/32 normal speed. 12 TOP MENU button Press to display a menu to select specific scenes on a disc. 13 VOLUME –/CURSOR Button When in TV mode press to reduce volume. When in DVD mode press to select an item from a menu or on-screen display, or to change the setting of an item in the on-screen display. 14 CHANNEL –/CURSOR Button When in TV mode press to go to a lower channel. When in DVD mode press to select an item from a menu or on-screen display, or to change the setting of an item in the on-screen display. 15 CHOICE button Displays the DVD set-up menu. Is also used when selecting parental lock settings 16 Infrared signal output window Point this toward the remote sensor on the front panel when pressing buttons. 17 DVD POWER button 18 TV POWER button Press to turn the RDV-1050 or your TV on or off (standby). 19 RETURN button Returns to the previous menu (for SVCD/Video CD). 20 DIMMER button Adjusts the brightness or turns off the display. 21 VSS button Turn on/off the simulated Virtual Surround Sound system. 22 +10/MUTING button Used when selecting or programming numbered tracks or scenes above 10. Also used to mute the TV sound. 23 TV/VIDEO/CANCEL button Used to switch inputs when controlling the TV. Used to remove selected items when setting up programmed track play. Also used when setting up the RR-DV96 to control the TV. 24 AUDIO/fs/RATE button Press and release to select various audio options during disc play. Press and hold for a few seconds to select the sampling frequency and bit length. 25 ZOOM button When viewing video discs allows the image on the screen to be enlarged from 1.8 to 64 times normal size. 26 VFP/PROG SCAN button Press and release to select the VFP function which sets video play properties. Press and hold for a few seconds to select progressive or interlace scan out- put. (With U.S. version the Video Signal Selector switch must be set to Remote to use this function. See the Audio/Video Connections section.) 27 /NEXT button Skips forward a chapter, title or track. Holding down this button during playback advances playback rap- idly. 28 II (PAUSE) button Pauses playback. 29 (PLAY)/SELECT button Starts playback. SELECT function is not used. 30 /SLOW button During playback lets you advance disc play at 1.5 to 60 times normal speed. When disc play is paused press to advance disc play at 1/2 to 1/32 normal speed. 31 MENU button Displays various menus that let you select items from the disc. 32 CHANNEL +/CURSOR Button When in TV mode press to go to a higher channel. When in DVD mode press to select an item from a menu or on-screen display, or to change the setting of an item in the on-screen display. 33 VOLUME +/CURSOR Button When in TV mode press to increase volume. When in DVD mode press to select an item from a menu or on-screen display, or to change the setting of an item in the on-screen display. 34 ON SCREEN Button Displays various menus on the screen that let you select control and programing functions. 35 ENTER button Press to accept various selections such as channels selected with the numeric buttons or in some program- ming steps. 36 PAL/NTSC button European Version Only. Select a PAL or NTSC out- put signal when the Video Signal Selector switch is set to REMOTE.
Page 9
10 RDV-1050DVD Player Precautions for the Safe Use of Batteries Observe the following precautions for the safe use of batteries. If they are used improperly their life will be shortened, they may burst or their contents may leak. - Remove the batteries from the remote con- trol if it will not be used for a long period of time. - Remove dead batteries and dispose of them properly. - Never leave dead batteries lying around. Do not take them apart, mix them with other refuse, or throw them into an incinerator. - Never touch liquid that has leaked out of a battery. - Do not mix new and old batteries, or bat- teries of different types. Programming the RR-DV96 Remote to Control a TV After it is programmed the RR-DV96 can op- erate your TV set. 1Set the TV/DVD switch 1 to TV. 2Press and hold down the TV/VIDEO-CAN- CEL 23 button. Then enter the manufac- turer code of your TV listed in the follow- ing table using the numeric buttons (0 - 9) 4. Do not release TV/VIDEO-CANCEL button until the next step is completed. (Ex- ample: To enter code 01 press and re- lease the 0 button, then press and release the 1 button. 3Press the ENTER 35 button, then release the TV/VIDEO-CANCEL button.4Test the program setting by pressing the TV POWER 18 button to see if it turns your set on. If there is more than one code listed for the manufacturer of your TV, try them one by one until you succeed. Manufacturer No. Aiwa 36 Beijing 22 CCE 02 Changhong 34 Daewoo 17, 37 Ferguson 27 Finlux 30 Funai 32 Gradiente 15, 20 Grundig 19 Hitachi 10 ITT 28 Jinxing 38 JVC 01, 23, 24, 25 Konka 40 LG (Goldstar) 18 Magnavox 02 Mitsubishi 03 Mivar 29 Manufacturer No. NEC 20 Noblex 22 Nokia 31 Panasonic 04, 11 Peony 34, 38, 39 Philco 10, 17, 21 Philips 02 RCA 05 Samsung 12, 33, 34, 35 Sanyo 13, 16 Sears 13 Sharp 06 Sony 07 TCL 41 Thomson 26 Toshiba 08, 14 Zenith 09 Playable Discs This unit can play the following types of discs: DVD Video DVD Audio Video CD SVCD Audio CD The RDV-1050 can also play back the following discs: - 9.4GB/4.7GB DVD-RAM with no cartridge, recorded with the video recording standard version 1.1. - 9.4GB/4.7GB DVD-RAM with cartridge but can be removed from the cartridge, recorded with the video recording standard. - DVD-R/RW discs written in the DVD VIDEO format and finalized. - DVD-RW (version 1.1) discs written in the VR (Video Recording) format and finalized. - CD-R and CD-RW discs written in the SVCD, Video CD or Audio CD format and final- ized. - CD-R and CD-RW discs written in MP3 or WMA in accordance with the ISO 9660 format. - CD-R and CD-RW discs written in JPEG in accordance with the ISO 9660 format. The RDV-1050 can play back audio signals recorded in MIX-MODE CD, CD-G, CD-EX- TRA and CD TEXT. NOTES: If a disc is dirty, scratched or warped, or has unusual disc or recording characteristics, it may take considerable time for the RDV-1050 to read the disc contents. In some instances the RDV-1050 may not be able to play certain discs. With some DVD-RAM and DVD-RW discs (recorded in VR format), portions such as a part between two programs may not be played back smoothly. Remote Control TV Operation When the TV/DVD switch 1 is in the TV po- sition the following buttons can be used to con- trol the TV. TV POWER 18 Turns the TV on or off. CH+ and CH – 32 14 Changes the TV channels. VOL+ and VOL – 33 13 Adjusts the TV volume. TV/VIDEO button 23 Switches the TV input between TV and Video. 0 - 10 and (Numeric Buttons) 4 Selects the TV channels. Note: For some TVs, pressing +10 functions as the +100. The 10 button functions as ENTER if your TV re- quires pressing the ENTER after selecting a channel number. MUTING button 22 Mutes the TV sound. External Remote In The 3.5mm mini-jack (labeled EXT REM IN) receives command signals from an industry standard infrared receiver. This feature is useful when the unit is installed in a cabinet and the front panel sensor is blocked. Consult your au- thorized Rotel dealer for information on ex- ternal receivers and the proper wiring of a jack to fit the mini-jack receptacle.
