Extracted text from Rotel RDV 03 OM (Ocr-read)

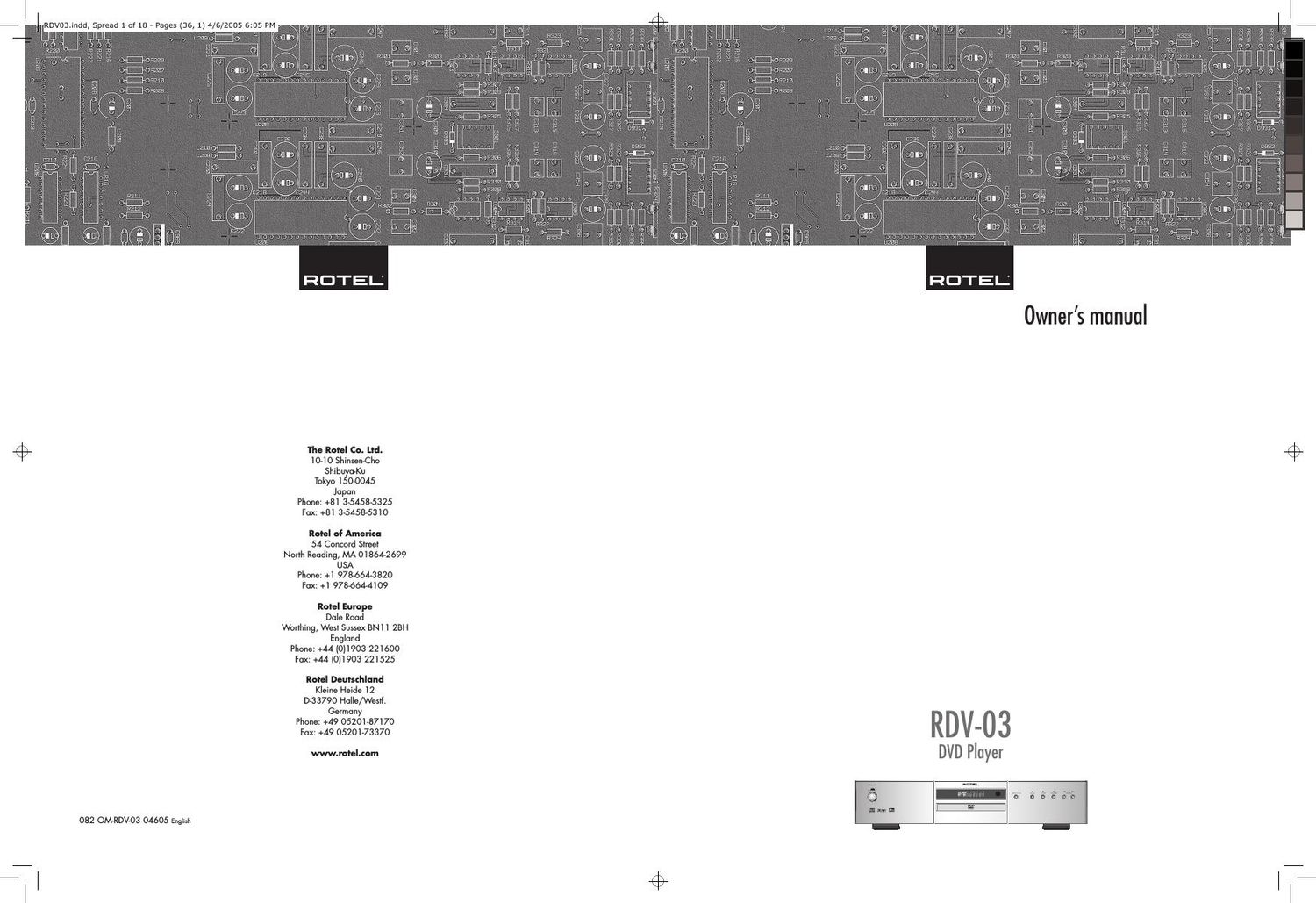

Page 1
2 RDV-03 This symbol means that this unit is double insulated. An earth or ground connection is not required. RDV03.indd, Spread 2 of 18 - Pages (2, 35) 4/6/2005 6:05 PM
Page 2
34 RDV-03 34 RDV-03 DVD Player 34 RDV-03 DVD Player 3 SPECIFICATIONS General Readable discs: DVD VIDEO, DVD-R (Video format), DVD-RW (Video format), SVCD, Video CD, Audio CD (CD-DA), CD-R/RW (CD-DA, SVCD, Video CD, MP3/WMA format, JPEG) TV monitor compatibility: Asia version: NTSC or PAL (selectable) Euro version: PAL Disc compatibility: Asia version: NTSC or PAL discs Euro version: NTSC or PAL discs Video mode: Asia version: interlaced or progressive scan Euro version: interlaced or progressive scan Other Power requirements: Asia model: AC 110-240 V, 50/60 Hz Euro model: AC 230 V, 50 Hz Power consumption: 12 W (Power On) 2W (Standby) Weight: 4.0 kg (8.8 lbs) Dimensions (W x H x D): 435 mm x 92 mm x 316 mm 17.14 x 3.62 x 12.45 Front Panel Height (feet removed/for rack mount) 80 mm/3.15 Video output COMPONENT (pin jack): Y Output: 1.0 Vp-p (75 ohm) PB/PR Output: 0.7 Vp-p (75 ohm) VIDEO OUT (pin jack): 1.0 Vp-p (75 ohm) S-VIDEO OUT (S jack): Y Output: 1.0 Vp-p (75 ohm) C Output: 286 mVp-p (75 ohm) RGB OUT (Euro model only): Output: 0.7 Vp-p (75 ohm) Horizontal resolution: 500 Lines Signal to noise ratio: 65 dB Audio output Analog Out (pin jack): 2.0 Vrms (10 k ohms) Digital Out: Optical: –21dBm to –15dBm (Peak) Coaxial: 0.5 Vp-p (75 ohm) Audio characteristics Frequency response: CD (at 44.1 kHz): 2 Hz to 20 kHz DVD (at 48 kHz): 2 Hz to 22 kHz DVD (at 96/88.2 kHz): 2 Hz to 44 kHz DVD (at 96 kHz) : 2 Hz to 44 kHz Dynamic range: 16 bit: more than 98 dB 20 bit: more than 100 dB 24 bit: more than 100 dB Wow and flutter: Unmeasurable (less than ± 0.002%) Total harmonic distortion: 16 bit: less than 0.008% 20/24 bit: less than 0.008% All specifications are accurate at the time of print - ing. Rotel reserves the right to make improve - ments without notice. Rotel and the Rotel HiFi logo are registered trade - marks of The Rotel Co, Ltd., Tokyo, Japan. Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servic - ing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splash - ing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately dis - connect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. Do not use this unit near water. You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and volt - age specified on the rear panel: Asia model: AC 110-240 V, 50/60 Hz Euro model: AC 230 V, 50 Hz Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. A polarized plug has two blades, with one wider than the other. A grounding plug has two blades plus a third grounding prong. These are provided for your safety. Do not defeat grounding and/or polarization safety provisions. If the supplied plug does not fit your outlet, please consult an electrician for replacement of the obsolete outlet. Do not use extension cords. The main plug of the power cordset is a disconnect device of the appa - ratus. In order to completely disconnect the apparatus from the supply mains, the main plug of the power cordset should be unplugged from the mains (AC) outlet. The stand-by LED indicator will not be lit up to show the power cord is unplugged. Do not route the power cord where it will be crushed, pinched, bent, ex - posed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where the cord exits the back of the unit. The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for a long period of time. Use only accessories specified by the manufacturer. Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when moving the unit in a stand or rack to avoid injury from a tip-over. Immediately stop using the component and have it inspected and/or ser - viced by a qualified service agency if: - The power supply cord or plug has been damaged. - Objects have fallen or liquid has been spilled into the unit. - The unit has been exposed to rain. - The unit shows signs of improper operation - The unit has been dropped or damaged in any way FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer - ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac - cordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par - ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter - ference by one or more of the following measures: - Reorient or relocate the receiving antenna.(TV, radio, etc.) - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for addi - tional help. Caution This device complies with part 15 of the FCC Rules operation is subject to the following to conditions: (1) This device may not cause harmful interfer - ence, and (2) this device must accept any interference received, including interference that may cause undesired operation. OPN /CL S STOPPAUSE PL AY TRACK STANDBYR D V- 0 3 ������� ������ ������������� ������� ������ ������� ������ RDV03.indd, Spread 3 of 18 - Pages (34, 3) 4/6/2005 6:05 PM
