Rotel RDD 980 Service Manual

Extracted text from Rotel RDD 980 Service Manual (Ocr-read)

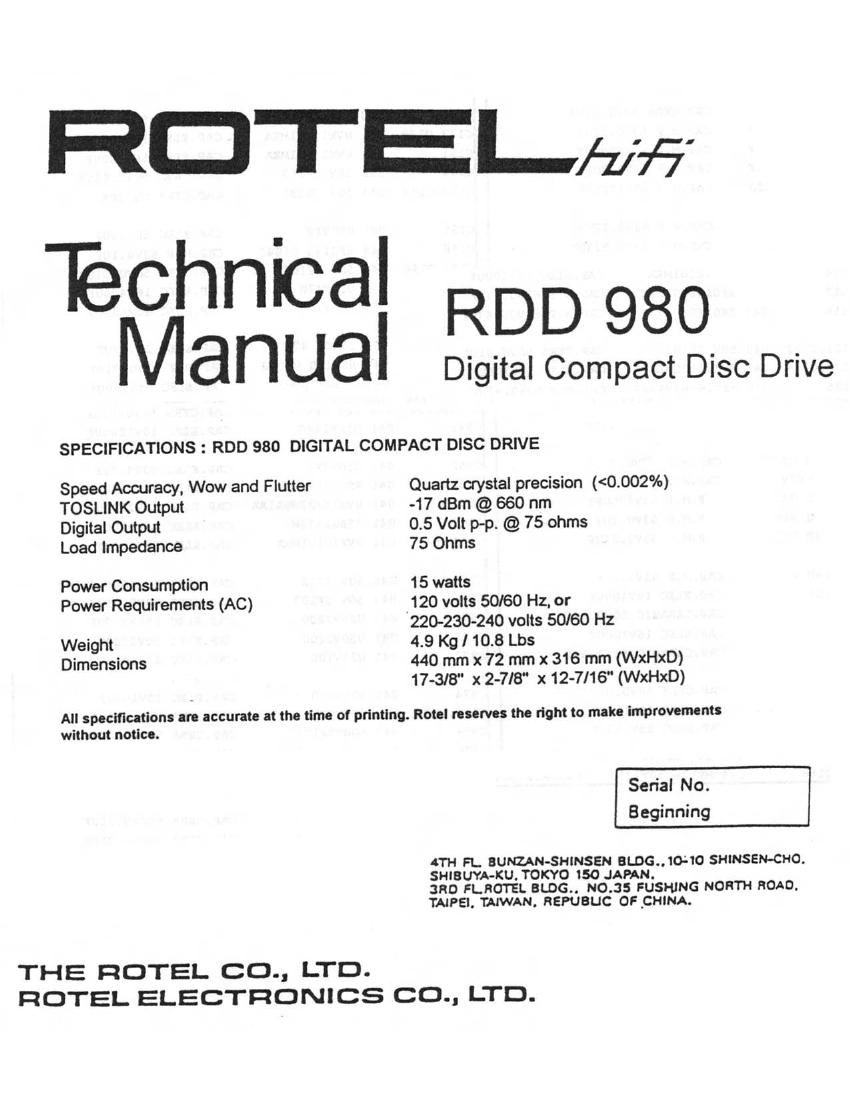

Page 1

HOTEL-H77

Technical
Manual [593 amgaggisc Drive

SPECIFICATIONS : RDD 980 DIGITAL COMPACT DISC DRIVE

Speed Accuracy, Wow and Flutter Quartz crystal precision (<0.002%)
TOSLINK Output -17 dBm @ 660 nm
Digital Output 0.5 Volt p-p. @ 75 ohms
Load Impedance 75 Ohms
Power Consumption 15 watts
Power Requirements (AC) 120 volts 50I60 Hz, or
220-230-240 volts 50/60 Hz
Weight 4.9 Kg] 10.8 Lbs
Dimensions 440 mm x 72 mm x 316 mm (WxHxD)

17-3/8" x 2-7/8 x 12-7/16" (WxHxD)

All specifications ere accurate at the time of printing. Rotel reserves the right to make improvements
without notice.

Serial No.
Beginning

4TH FL. BUNUNéHINSEN BLDG..10410 SHINSEN-CHO.
SHIBUYA-KU. TOKYO 150 JAPAN.

SRO FLROTEL BLDG.. no.35 FUSI'UNG NORTH ROAD.
TAIPEI. TAIWAN. REPUBLIC OF_CHINA.

THE HOTEL (2C)., LTD.
ROTEL ELECTRONICS (30., LTD.
