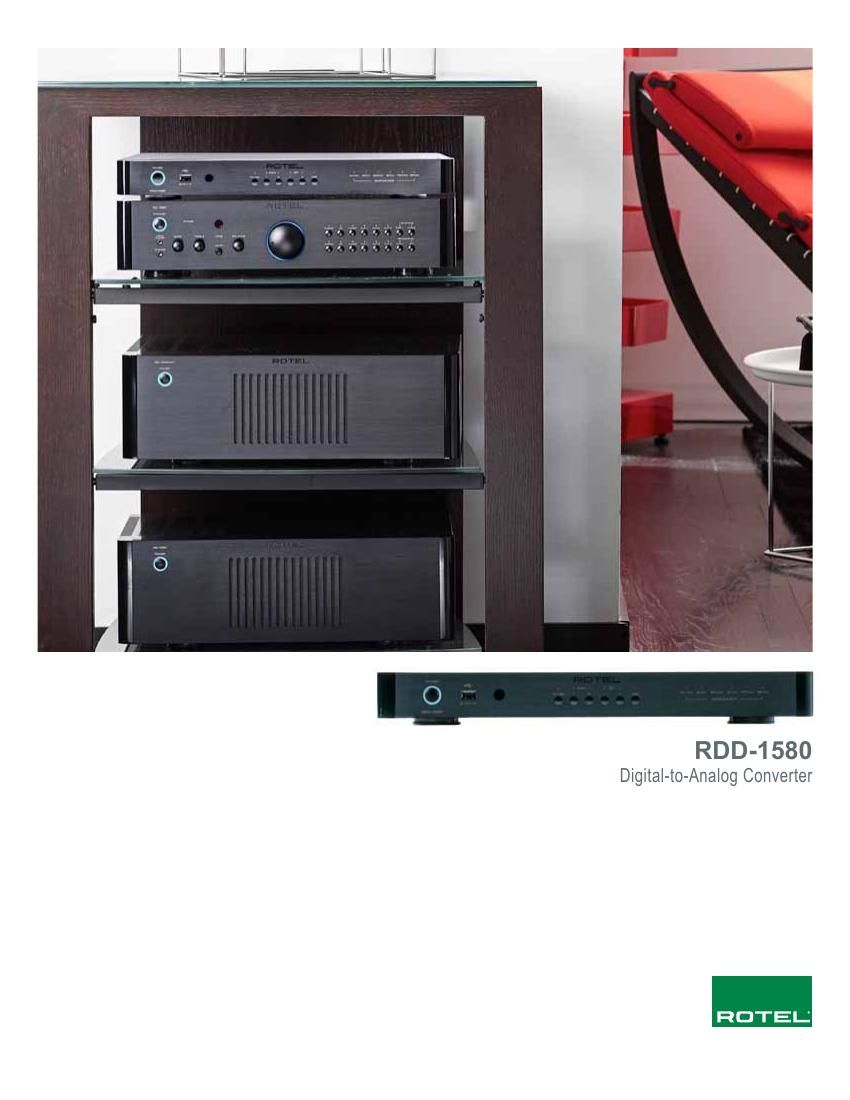

Rotel RDD 1580 Brochure

Page 1

SPECIFICATIONS RDD-1580 Digital-to-Analog Converter Rotel of America 54 Concord St. N. Reading, MA 01864 USA T +1 978 664 3820 F +1 978 664 4109 www.rotel.com Audio Total Harmonic Distortion Intermodulation Distortion (60Hz:7KHz) Frequency Response Signal to Noise Ratio (IHF A-weighted) Input Sensitivity /Impedance Line Output Level / Impedance (RCA) Line Output Level / Impedance (XLR) <0.004% <0.004% 10Hz - 95kHz, +/-3.0 dB 128 dB 0 dBFs /75 ohms 2.2V / 100 ohms 4.4V / 200 ohms Rotels new digital-to-analogue converter envelops the listener in the most accurate audio reproduction possible from any digital source, whether it be legacy PCM sources or the latest in digital file formats. The RDD-1580 provides a level of performance unheard of at its price level and is specifically designed to cater for the growing popularity of high definition digital audio. At its heart, the RDD-1580 makes use of Wolfsons extraordinary WM8740 stereo digital-to-analogue converter. But where competitive products use only one of these converters to handle two channels, the RDD-1580 uses two WM8740s in a complementary configuration which reduces noise and distortion well beyond that a single converter can provide. Another RDD-1580 advantage lies in its input flexibility. A front panel USB input supports Apple iPod ®, iPhone ® and iPad ® as well as streaming via Bluetooth with the included adapter. The rear panel PC-USB input supports files up to 24 bit/192kHz in asynchronous mode. Two sets of rear panel RCA-style coaxial and TOSlink optical digital inputs are optimized for LPCM data streams. This includes CDs 16-bit/44.1 kHz standard to high definition sources with 24-bit/192 kHz audio data. A Rotel-designed and manufactured toroidal transformer sits at the foundation of the RDD-1580s well-regulated power supply. Advanced custom-designed slit-foil capacitors provide electrical storage capabilities to ensure substantial and stable operating voltages and current to feed the critical circuit stages. The carefully tuned analogue section is another example of Rotels award-winning Balanced Design approach where specifications alone do not dictate which electronic parts are selected. Rather, extensive listening tests are carried out under controlled conditions to determine the best way forward. During this time the entire circuit is carefully tuned to provide sonically accurate signal reproduction. The RDD-1580 provides both single-ended and balanced outputs with RCA and XLR connectors respectively Recognizing todays changing tastes in audio sources, the RDD-1580 even provides high-current charging capability (2.1 amperes) for an iPad ® or similar device to reduce clutter and increase needed desk space while expanding your audio source options. Built for stunning sound quality but designed for todays ever-increasing digital world, the RDD-1580 offers a first rate combination of superior sonics and convenience. WAV, MP3, WMA, AIFF, AAC, Apple Lossless (up to 16 bit 48kHz) LPCM (up to 24 bit 192kHz) Plays all file types supported by PC software player up to 24bit 192kHz 120V, 60Hz(USA) 230V, 50Hz(Europe) 25 watts 0.5 watts 431 x 55 x 316mm 17 x 2 1/8 x 12 1/2 in 1U / 43.7mm (1 3/4 in) 5.1 kg/11.24 lb Decodable front USB/ iPod ® Digital Signals Decodable Coaxial/ Optical Digital Signals PC-USB File Decoding General Power Requirements (AC) Power Consumption Standby Power Consumption (normal mode) Dimensions (W x H x D) Front panel height Weight
