Extracted text from Rotel RDA 985 OM (Ocr-read)

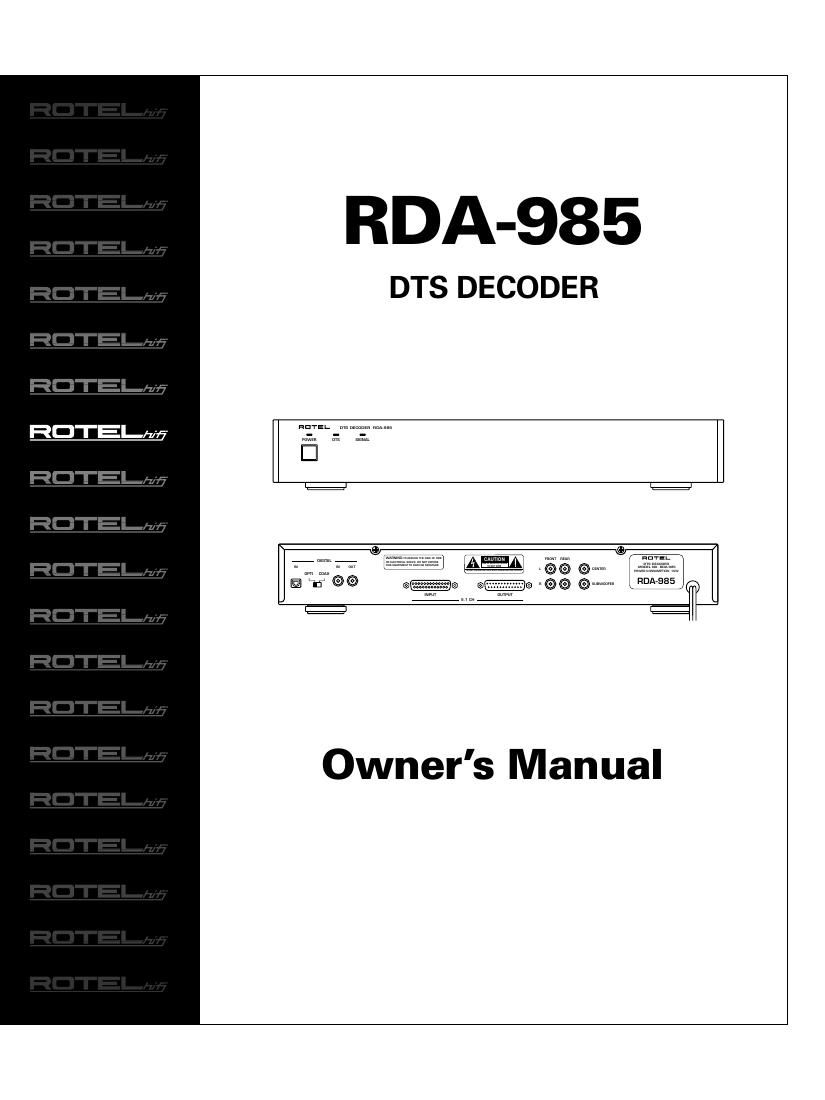

Page 1
DTS DECODER RDA-985 CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY. APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the RDA-985 to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the RDA-985. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the RDA-985 only with a dry cloth or a vacuum cleaner. Keep the ventilation inlets on the unit unobstructed. For example, do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the RDA-985 is placed in a bookcase or cabinet, there must be suffi- cient clearance around the unit and ventilation of the cabinet to allow proper cooling. Keep the RDA-985 away from radiators, heat registers, stoves, or any other appliance that produces heat. The RDA-985 must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the RDA-985 to the power outlet only with the supplied 2-pin polarized power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. The cable should be connected to a 2-pin polarized wall outlet, matching the wide blade of the plug to the wide slot of the receptacle. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the RDA-985 and have it inspected and/or serviced by a qualified service agency if: ¥ The power supply cord or plug has been damaged. ¥ Objects have fallen into or liquid has been spilled into the unit. ¥ The unit has been exposed to rain. ¥ The unit shows signs of improper operation ¥ The unit has been dropped or damaged in any way Place the RDA-985 on a fixed, level surface strong enough to support its weight. Do not place the RDA-985 on a moveable cart that could tip over. This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock. This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.
Page 2
RDA-985 aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa Figure 1 Ð Controls and Connections 1 5.1 CH WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. IN OUT OUTPUT INPUT FRONT REAR CENTER SUBWOOFER L R DTS DECODER MODEL NO. RDA-985 POWER CONSUMPTION: 10W RDA-985 IN OPTI COAXDIGITAL DTS DECODER RDA-985 POWER DTS SIGNAL CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUEÐNE PAS OUVRIR 1 12 2 3 4 5 6 7 8 11 10 9 aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa Figure 2 Ð Basic Wiring Connections AUX 5.1 CH INPUT WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. MONITOR TV DIGITAL INPUT FRONT REAR CENTER SUB L RPOWER OUTPUT TUNER CD TAPE VIDEO 1 VIDEO 2 VIDEO 3 IN OUT VIDEO 4 IN OUT IN OUT IN OUT SPEAKER CONFIGURATION CENTER SMALL NONE LARGE FRONTSMALL LARGE REARSMALL LARGE SUBON OFF DIGITAL SURROUND SOUND PROCESSOR MODEL NO. RSP-975 POWER CONSUMPTION: 22W RSP-975 CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUEÐNE PAS OUVRIR SWITCHED 800W MAX LDRF OPTICAL COAXIAL COAX 1 COAX 2 DVD 5.1 CH WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. IN OUT OUTPUT INPUT FRONT REAR CENTER SUBWOOFER L R DTS DECODER MODEL NO. RDA-985 POWER CONSUMPTION: 10W RDA-985 IN OPTI COAXDIGITAL CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUEÐNE PAS OUVRIR S-VIDEO COMPOSITE LEFT RIGHT VIDEO OUTPUT AUDIO OUTPUT DIGITAL OUT DVD PLAYER ROTEL RDA-985 DTS DECODER SURROUND SOUND PROCESSOR
