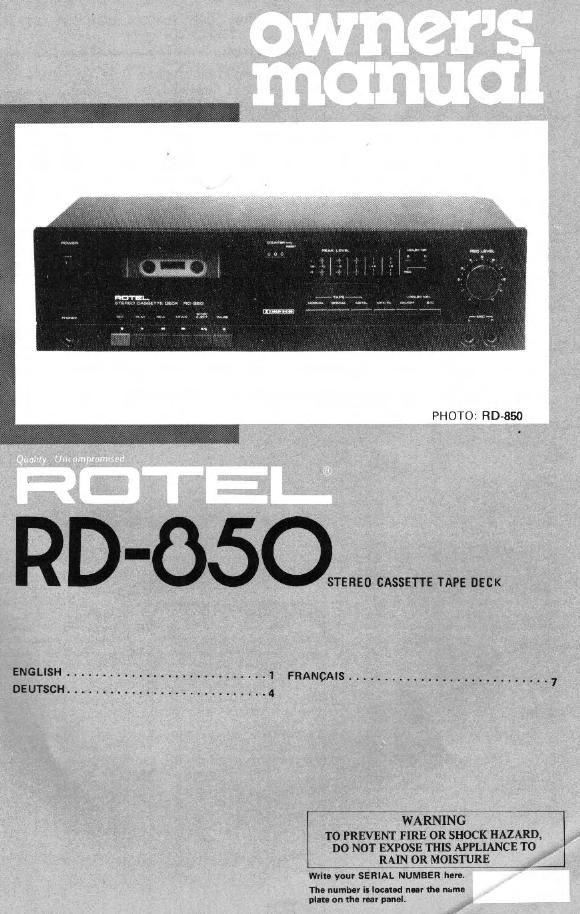

Rotel RD 850 OM

Page 1

PHOTO: RD~850

STEREO CASSETTE TAPE DECK

ENGLISH ............................ 1 FRANCAIS ............................

DE UTSCH ........................ 4 7

WARNING
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE T0
RA"! 0R MOISTURE
wm. ynuv SERIAI: NUMBER hm.

Till numb-r i! lam-d lI-r the mum-
phtl on flu mar palm.

Page 2

IIIIIIISII

STEREO CASSETTE TAPE DECK ID-850

INTRODUCTION

We at Hotel want to thank you lor purchasing
our audio product.

Rotel audio products are detigned to use the
latest electronic technology. and they lnCOlpO
rate our long experience as a specialist munulio
turer or eudio equipment. We are confident
that you will find satisfaction in the high
quality sound and top perlormance, and that
you Will rind pleasure in the ruhctionai beeuty
achieved through humIn-engineering concept
Belore sttrirng operation. please read this
instruction manual thoroughly and acqreini
yoursell with the proper mode ol using the unit
and III in connections

We hope you will enjoy toonoich perrorrnence
ror many years to come

INSTALLATION

Be sure to place the unit in a level and flat place
where it it tree lrorti humidity, Vibralol high
temperature and not exposed to direct sunlight.
Be careful not it) place the unil in a highly
enclosed piece such as near a wall or on e
hookshell. A poor ventilation will cause unde-
srrabie elfectt to the unit

POWER SUPPLY CONNECTION

For power the unit requires the normal houee
electricel current (ACI. Vou may simply plug
the unit into a well outlet, or into your ampli-
tter's (or recewer'sl convenience AC outlet.
CAUTION: Do not applv power without lim
making sure the proper connections ere com
pleted. It you live lfl U.l(. and your unit comes
wrth Z-cote cord wrthout a plug. be sure to read
the exclusive caution lot U.K.

EXCLUSIVE NOTE FOR U.K.

ll your unit comes with e Z-core cable
without a plug, make certein lllre and
neutral leads are connected to the proper
tarrmnels. Check that the terminals are
scrend down lirmly and no loose strands
0! wire are presente

IMPORTANT: The wires In this mains leatl
are coloured in accordance With the lollow

ing code:
BLUE: NEUTRAL
BROWN: LIVE

At the colours ol the wires in ihe mains lead
at thit toperatus may not correspond with
the coloured markings tdentining the
termlnels in your plug proceed as lollows
The wire which is coloured BLUE must be
connected to the terminal which is marked
with the letter N or coloured BLUE or
BLACK. The wire which is coloured
BROWN must be connected to the terminal
which it marked With the leller L or colour»
ed BROWN or RED,

CONNECTION TO INTEGRATED
AMPLIFIER OR RECEIVER

Two pairs ol RCA cords IDI LINE IN/OUT eit-
lend Dul train the rear penel ol the cassette
deck. The cord lrom the LINE IN terminals of
the deck should be plugged into the TAPE
MONITOR OUT termtnel ol the Impllfior or
recerver, and the cord (rum LINE OUT terminal
lo the TAPE MONITOR IN terminal, RCA
cords will'l white plugs are for lelt chennel ILI
connection. and cords with red plugs are lor
right channel irii

AUTOMATIC SH UTUFF SVSTEM

When either end at tape it reached in play,
record, Iest-lorwerd. or rewind mode. the
motor and transport mechanism will automati-
celly shut all. disengaging the present mode.
Note, however. that it is still necessary to turn
a" the entire unit by pressing the poet-r
switch to all.

AMPLIFIER OR RECEIVER

._

z

Mom-mm Mix r-wmma i r~MONITDR 7-
GND
our
g-_--
CASSETTE TAPES

e To prevent possible trouble with the trant~
port mechanism use ol large sin cassette tapes,
such as (2-120, is not recommended.

e Handle cassette tapes With care. Keep
them away lrom heat. circulating dusly or .1
rnagietic lield (erg. on the TV set).

I Each cassette tape hxs ulety labs on us
back edge to prevent ace-dental re-recoroing.
The labi are provided Ior both Sides of cassette
tape. You cannot record on the side whose tab
has been removed. The tab can be removed
with a screwdriver, etc. ll you wish to record
an the side wnh no tab, place I piece ol adhe-
sive tape, llc. over the opening where the tab
has been, then you can record.

0A loosened tape may came trouble in
playback or recording. Check the tape belore
loading it into the deck. If it is slack, insert a
penal or the lxke into either olcamttes hubst
and rotate it carelully until the slack it taken
uD
