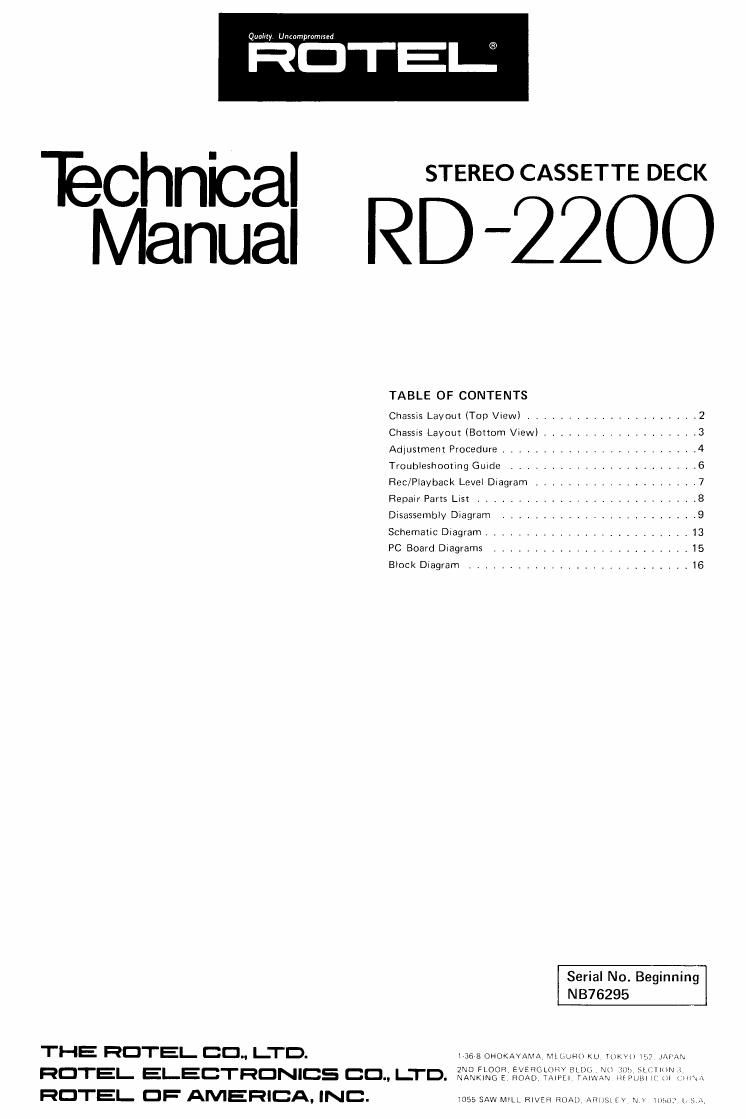

Rotel RD 2200 Service Manual

Extracted text from Rotel RD 2200 Service Manual (Ocr-read)

Page 2

Chassis Layout (Top View)

u u 't
, m. .msg- 7

1. PHONE LEVEL CONTROL PCB 9. POWER SWITCH

2. PHONE LEVEL CONTROL 10. POWER SWITCH PCB

3. RECORDING LEVEL CONTROL 11. POWER TRANSFORMER
4. OUTPUT LEVEL CONTROL 12. VOLTAGE SELECTOR
5. MEMORY BUTTON 13. MOTOR

6. TAPE COUNTER 14. LINE OUT JACKS

7. AUTO-SHUT-OFF PCB 15. LINE IN JACKS

8. CASSETTE MECH ASS'Y 16. MASTER PCB
