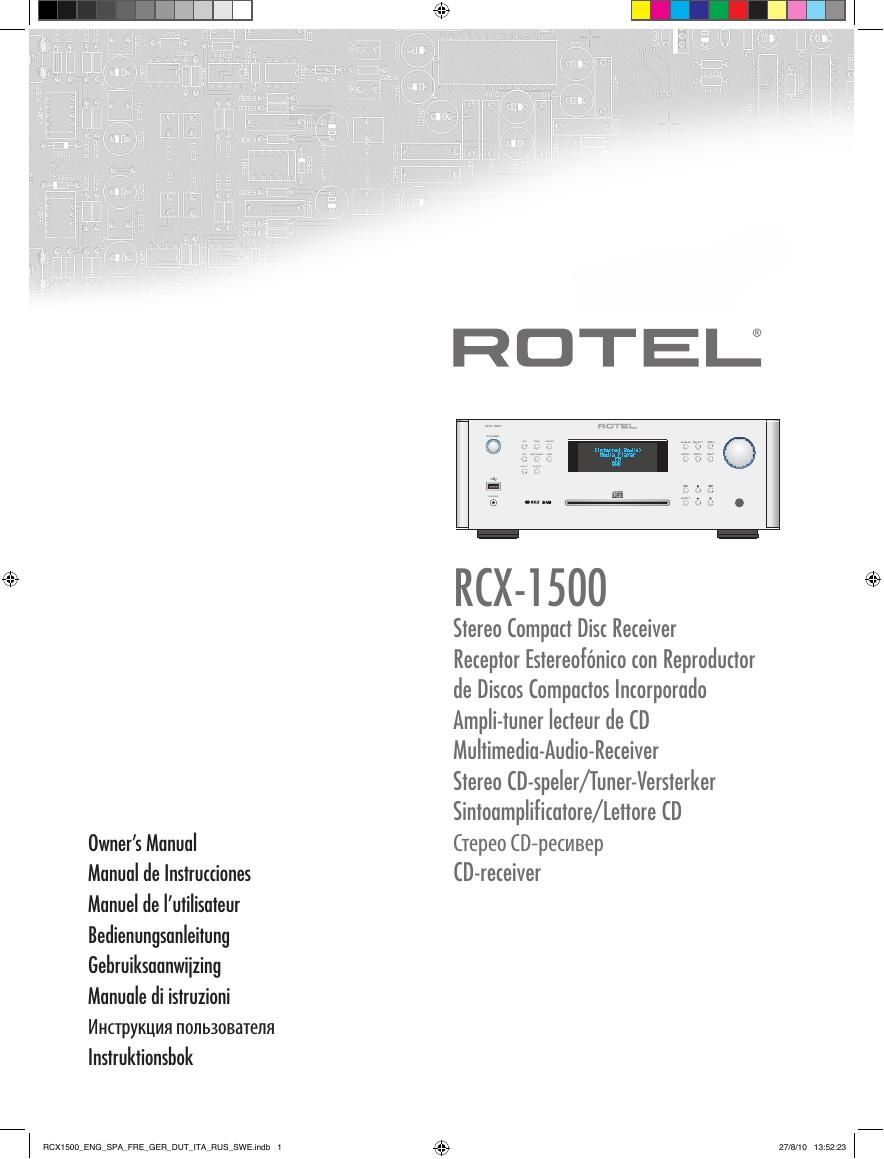

Rotel RCX 1500 OM
This is the 188 pages manual for Rotel RCX 1500 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Rotel RCX 1500 OM (Ocr-read)
Page 1
2 RCX-1500 Stereo Compact Disc Receiver Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives. DAB IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. DANGER: Visible laser radiation when open and interlock failed or bypassed. A void direct exposure to beam. 3. CAUTION: Do not open the top cover . There are no user ser viceable parts inside the player; leave all ser vicing to qualified ser vice personnel. W ARNING! T o reduce the risk of electrical shock, fires, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose the unit to rain or moisture. 3. Do not touch the power cord or plug with wet hands. RCX1500_ENG_SPA_FRE_GER_DUT_ITA_RUS_SWE.indb 2 27/8/10 13:52:23
Page 2
3 English WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. Do not use this unit near water. You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any o\ ther appliance that produces heat. WARNING: The rear panel power cord connector is the mains power disconnect device. The apparatus must be located in an open area that allows access to the cord connector\ . The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz) Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. A polarized plug has two blades, with one wider than the other. A grounding plug has two blades plus a third grounding prong. These are provided for your safety. Do not defeat grounding and/or polarization safety provisions. If the supplied plug does not fit your outlet, please consult an electrician for replacement of the obsolete outlet. Do not use extension cords. The main plug of the power cord set is a disconnect device of the apparatus. In order to completely disconnect the apparatus from the supply mains, the main plug of the power cord set should be unplugged from the mains (AC) outlet. The stand-by LED indicator will not be lit up to show the power cord is unplugged. The disconnect device shall remain readily operable. Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where the cord exits the back of the unit. Main plug is used as the main disconnect device and shall remain ready a\ ccessible. The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for a long period of time. This apparatus shall be connected to a main socket outlet with a protect\ ive earth connection. Use only accessories specified by the manufacturer. Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when moving the unit in a stand or rack to avoid injury from a tip-over. Use Class 2 wiring for speaker connections to ensure proper installation and minimize the risk of electrical shock. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: - The power supply cord or plug has been damaged - Objects have fallen or liquid has been spilled into the unit - The unit has been exposed to rain - The unit shows signs of improper operation - The unit has been dropped or damaged in any way The batteries in remote control shall not be exposed to excessive heat s\ uch as sunshine, fire or the like. Important Safety Instructions Notice The COMPUTER I/O connection should be handled by authorized persons only\ . FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.(TV, radio, etc.) - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for additional help. Caution This device complies with part 15 of the FCC Rules. Operation is subject\ to the following to conditions: (1) This device may not cause harmful interference, and (\ 2) this device must accept any interference received, including interference that may cause undesired o\ peration. NOTE TO CATV SYSTEM INSTALLER: Call the CATV system or antenna installers attention to Article 820-40 of the NEC. This provides guidelines for proper grounding and, in particular , specifies that the cable ground shall be connected to the grounding system of the \ building, as close to the point of cable entry as practical. See installation diagram. NOTE: This equipment has been tested and found to comply with the limits for a\ Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed \ to provide reasonable protection against interference in a residential installation. This equi\ pment generates and can radiate radio frequency energy and, if not installed and used in accorda\ nce with the instructions, may cause interference to radio or TV communications. There is no guaran\ tee that interference will not occur in a particular installation. If this equipment does cause int\ erference to radio or television reception, which can be determined by turning the equipment off and on, \ try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the unit and the television tuner. - Connect the unit to an AC power outlet on a different electrical circuit. - Consult your authorized Rotel retailer for assistance. RCX1500_ENG_SPA_FRE_GER_DUT_ITA_RUS_SWE.indb 3 27/8/10 13:52:23
